Remove/install glass roof on tilting/sliding roof - AR77.20-P-2852LW
MODEL 205 with CODE 414 (Sliding sunroof)
Shown on right side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

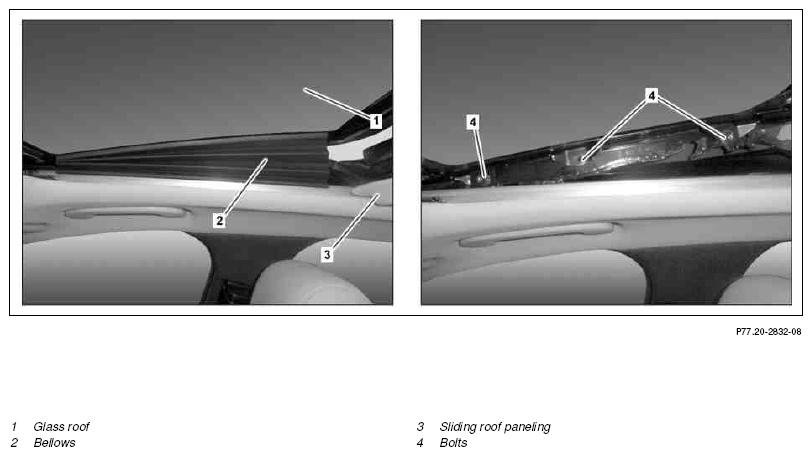

| 1 | Move glass roof (1) to tilt position | ||
| 2 | Open sliding roof paneling (3) | ||
| 3 | Remove boot (2) on left and right | Extend boot (2) on left and right first, then at bottom and then at top. Otherwise the boot (2) on left and right can be damaged by bending. |
|
| 4 | Unscrew bolts (4) on left and right sides | ||
| 5 | Remove glass roof (1) | ||
| 6 | Install in the reverse order | ||
| 7 | Adjust glass roof (1) | AR77.20-P-1100CW |
