Remove/install end stops for soft top supports - AR77.30-P-0002LWR

MODEL 205.4

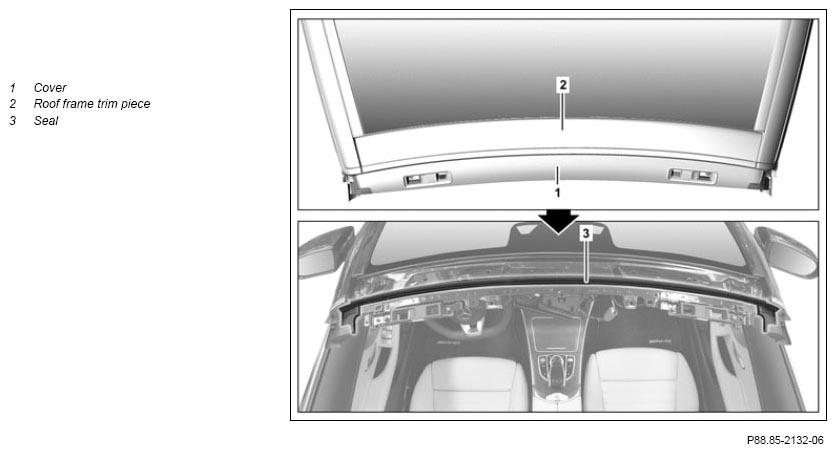

Shown except code 288 (Draft stop for cabriolet)

Fig 1: Soft Top Supports End Stops Remove/Install Components - Shown Except Code 288

Courtesy of MERCEDES-BENZ USA

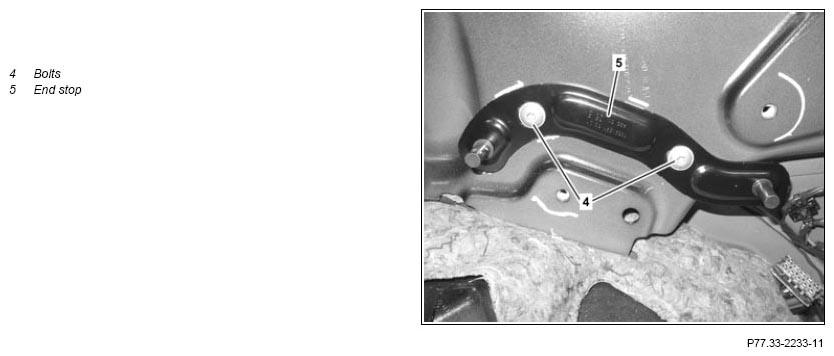

Shown on left side of vehicle

Fig 2: Soft Top Supports End Stops Remove/Install Components - Shown On Left Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove soft top		AR77.30-P-1002LWR
2	Unscrew bolts (4) and remove left and right end stop (5)
	Preparing work for alignment
3	Remove overhead control panel		AR82.20-P-1000LWR
4.1	Remove wind deflector	Model 205.4 with code 288 (Draft stop for convertible)	AR77.20-P-2500LWR
4.2	Remove trim roof frame (2)	Model 205.4 except code 288 (Draft stop for convertible)
			AR88.85-P-0001LWR5
5	Remove cover (1)	Model 205.4 except code 288 (Draft stop for convertible)
6	Loosen seal (3) on upper and side window frame
7	Fold front seats toward front
	Align
8	Insert end stops (5) for soft top support and align		AR77.30-P-0002-01LWR
		Bolt, mounting plate to body	*BA77.33-P-1002-02B
		Device	Fig 3
	Install
9	Install seal (3) on windshield frame	Additionally seal area on upper A-pillar with butyl cord. Butyl cord Terostat 81 Ø 6 mm	*BR00.45-Z-1085-01A
10	Install cover (1)	Model 205.4 except code 288 (Draft stop for convertible) Observe installation position of outer seals on cover (1).
11.1	Install roof frame trim piece (2)	Model 205.4 except code 288 (Draft stop for convertible)	AR88.85-P-0001LWR
11.2	Install wind deflector	Model 205.4 with code 288 (Draft stop for convertible)	AR77.20-P-2500LWR
12	Install overhead control panel		AR82.20-P-1000LWR
13	Install soft top		AR77.30-P-1002LWR

Fig 3: Identifying Device (217 589 00 31 00)

Courtesy of MERCEDES-BENZ USA
