Remove/install trim piece on roof frame at front - AR88.85-P-0001LWR

MODEL 205.4

except code 288 (Draft stop for convertible)

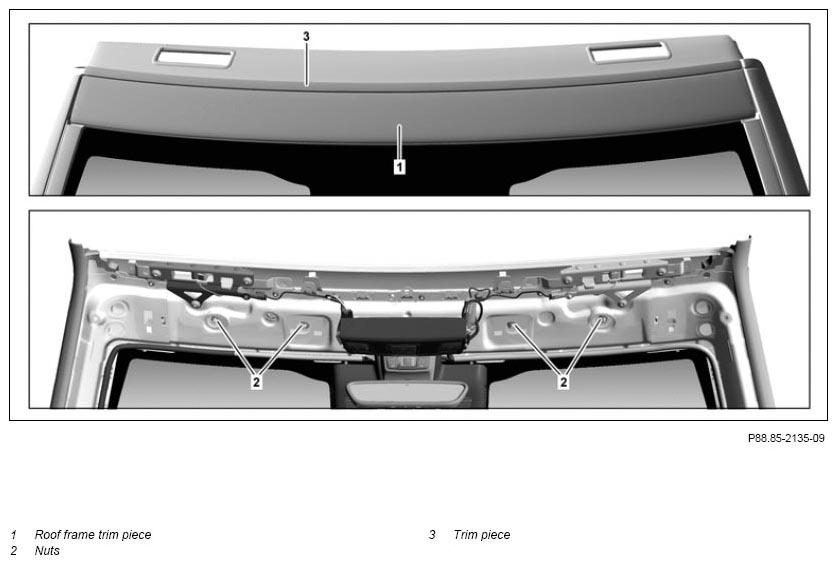

Fig 1: Front Roof Frame Trim Piece Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove A-pillar paneling		AR68.30-P-4050LW
2	Unscrew nuts (2) on roof frame trim piece (1)
3	Remove roof frame trim piece (1)
	Install
4	Glue trim piece (3) to new roof frame trim piece (1)	When replacing roof frame trim piece (1).
5	Check seals o bolt on roof frame trim piece (1)	When reusing removed roof frame trim piece (1). for damage ↓ Replace seals.
6	Position roof frame trim piece (1), center and tighten nuts (2)	Ensure that seal is seated correctly between roof frame trim piece (1) and windshield.
7	Install A-pillar paneling		AR68.30-P-4050LW
