Adjust soft top compartment lid - AR77.33-P-1705LWR
MODEL 205.4
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bar extends. Do not use the cover in the area of the roll bar as a shelf for objects. |
AS91.00-Z-0003-01LCA | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Check | |||
| 1 | Completely open soft top | ||
| 2 | Check adjustment of trunk lid, adjust | AR88.50-P-0002LWR | |

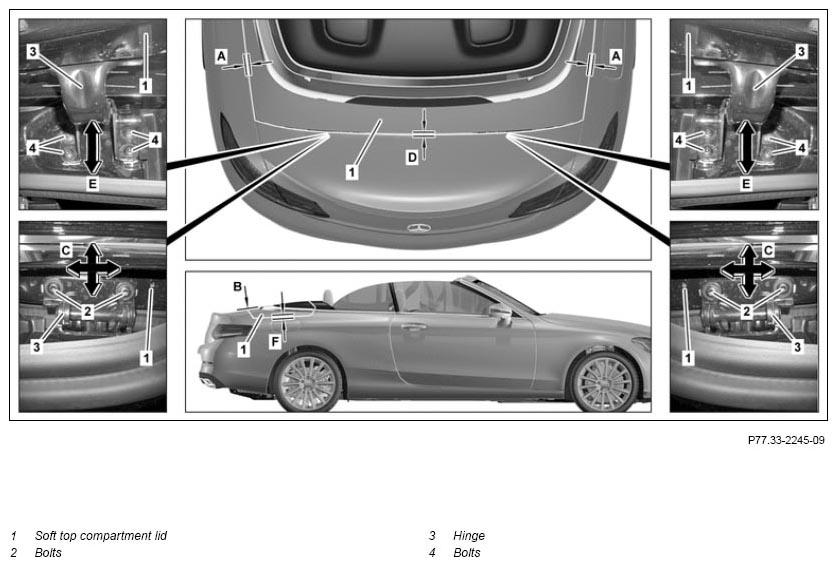

| 3 | Check gap dimensions (A, D) and transitions (B, F) on soft top compartment lid (1) | Soft top to soft top compartment lid | *BE60.00-P-1032-01BB |
| Soft top compartment lid to rear fender | *BE60.00-P-1034-01BB | ||
| Soft top compartment lid to trunk lid | *BE60.00-P-1035-01BB | ||
| Figure | |||
| Adjust gap dimensions (A) and transition (B) | |||
| 4 | Open trunk lid | ||
| 5 | Loosen bolts (2) on hinges (3) | ||
| 6 | Adjust gap dimension (A) and transition (B) by moving (arrow C) soft top compartment lid (1) | Soft top compartment lid to rear fender | *BE60.00-P-1034-01BB |
| Figure | |||
| 7 | Tighten bolts (2) on hinges (3) | *BA77.33-P-1001-03A | |
| 8 | Close trunk lid | ||
| Adjust gap dimension (D) | |||
| 9 | Move soft top to repair position R4 | AR77.30-P-1030LWR | |
| 10 | Loosen bolts (4) on hinges (3) | ||
| 11 | Adjust gap dimension (D) by moving hinges (3) in longitudinal direction (arrow E) | Soft top compartment lid to trunk lid | *BE60.00-P-1035-01BB |
| Figure | |||
| 12 | Tighten bolts (4) on hinges (3) | *BA77.33-P-1002-03A | |

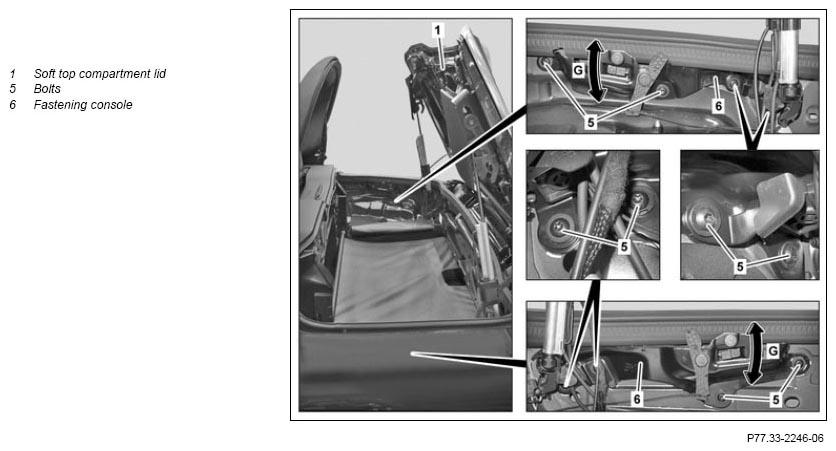

| Adjust transition (F) | |||
| 13 | Move soft top to repair position R2 | AR77.30-P-1030LWR | |
| 14 | Loosen bolts (5) on mounting consoles (6) | ||
| 15 | Adjust transition (F) by moving (arrow G) mounting consoles (6) | Soft top to soft top compartment lid | *BE60.00-P-1032-01BB |
| Figure | |||
| 16 | Tighten bolts (5) on mounting consoles (6) | *BA77.33-P-1005-03A | |
| 17 | Completely close soft top |
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 205.4 | ||
|---|---|---|---|---|
| BE60.00-P-1032-01BB | Soft top to soft top compartment lid | Dimension "Z1" | mm | 4 (+1, 5/-1) |
| For picture, see | AR60.00-P-0700-01LW | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 205.4 | ||
|---|---|---|---|---|
| BE60.00-P-1034-01BB | Soft top compartment lid to rear fender | Dimension "Z3" | mm | 3 (+1/-0, 5) |
| For picture, see | AR60.00-P-0700-01LW | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 205.4 | ||
|---|---|---|---|---|
| BE60.00-P-1035-01BB | Soft top compartment lid to trunk lid | Dimension "Z4" | mm | 5 (±0, 5) |
| For picture, see | AR60.00-P-0700-01LW | |||
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA77.33-P-1001-03A | Screw/bolt, hinge to soft top compartment lid | Nm | 10 |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA77.33-P-1002-03A | Screw/bolt, soft top compartment lid hinge to body | Nm | 10 |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA77.33-P-1005-03A | Bolt, mounting support for striker pin to body | Nm | 10 |
