Move soft top to repair position - AR77.30-P-1030LWR

MODEL 205.4

Repair position R1

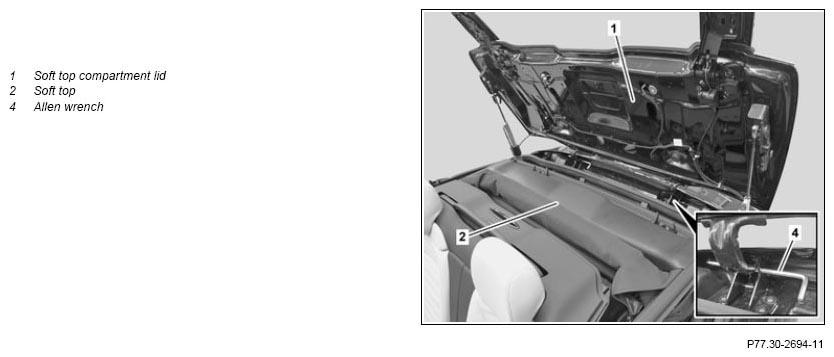

Fig 1: Soft Top To Repair Position R1 Components

Courtesy of MERCEDES-BENZ USA

Repair position R2

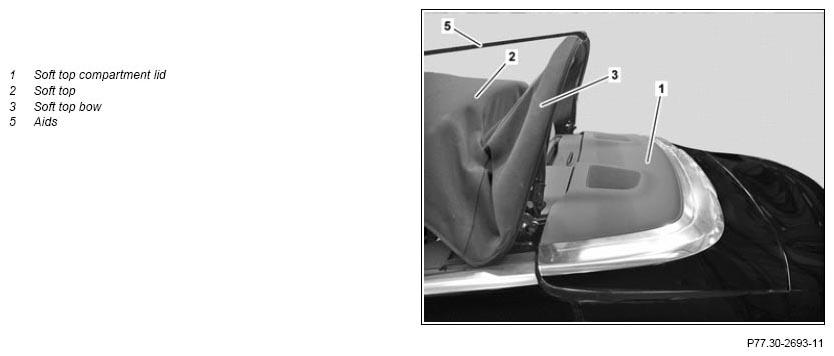

Fig 2: Soft Top To Repair Position R2 Components

Courtesy of MERCEDES-BENZ USA

Repair position R3

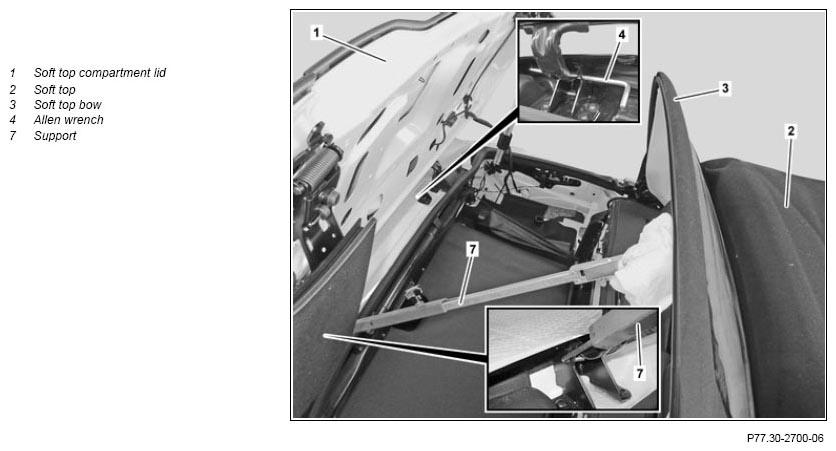

Fig 3: Soft Top To Repair Position R3 Components

Courtesy of MERCEDES-BENZ USA

Repair position R4

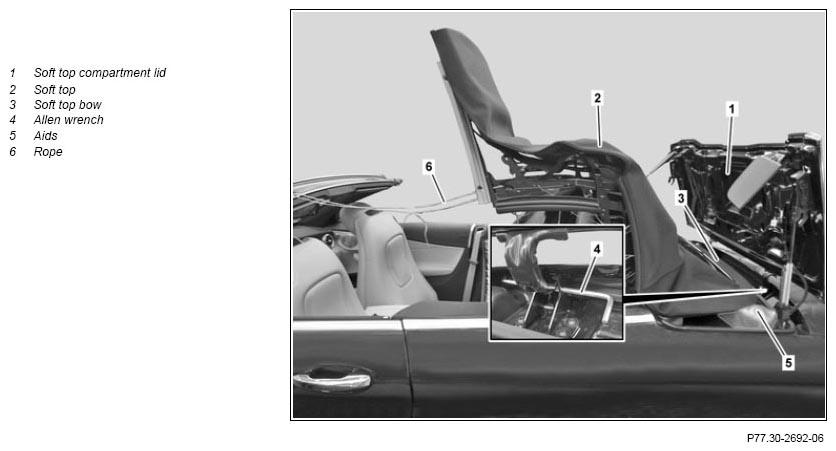

Fig 4: Soft Top To Repair Position R4 Components

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  when performing check and repair work in area of roll bar	Keep body parts out of the area where the roll bar extends. Do not use the cover in the area of the roll bar as a shelf for objects.	AS91.00-Z-0003-01LCA
	Move soft top to repair position
1	Switch on ignition, actuate brake pedal and unlock soft top system via soft top control switch	When soft top system is completely closed. If the soft top system cannot be unlocked via the soft top control switch. ↓ Unlock soft top system with emergency actuation.	AR77.30-P-0999LWR
2	Move soft top system to repair position R1, R2, R3 or R4	When actuating the soft top (2) manually on the left and right, always lift together with helper. Otherwise the soft top mechanism can be damaged. The hydraulic system must be unpressurized when actuating manually. When the ignition is switched on, the pressure in the hydraulic system is relieved automatically after approx. 7 min. When the ignition is switched on, the pressure in the hydraulic system is relieved automatically after approx. 20 s.
3	Secure soft top compartment lid (1) on hinge against lowering with Allen wrench (4)	On repair position R2, R3 or R4. It is necessary to remove the Allen wrench (4) before adjusting another soft top position.
4	Secure soft top bow (3) against lowering with suitable aid (5)	On repair position R1 or R3. It is necessary to remove the aid (5) before adjusting another soft top position.
5	Secure soft top bow (3) with support (7) against lowering	On repair position R2. It is necessary to remove the support (7) before adjusting another soft top position. Support	Fig 5
6	Secure soft top (2) against lowering with suitable cord (6)	On repair position R3. It is necessary to remove the cord (6) before adjusting another soft top position.

Fig 5: Identifying Support (230 589 04 63 00)

Courtesy of MERCEDES-BENZ USA
