Remove/install trunk cover - AR68.30-P-4660LWR

MODEL 205.4

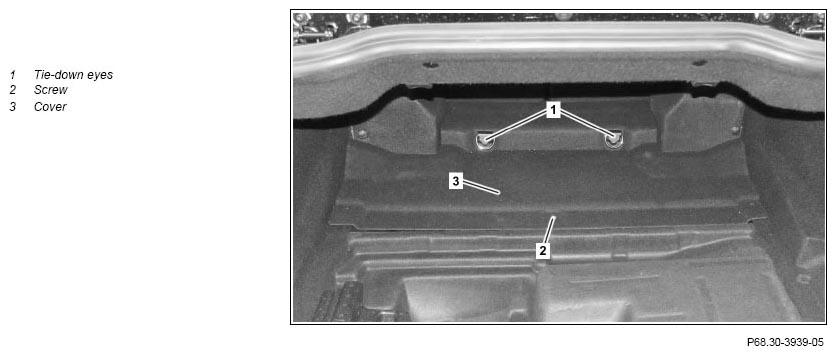

Fig 1: Trunk Cover Remove/Install Components

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

	Remove/install
1	Remove trunk floor	Clip remover	Figure
2	Remove tie-down eyes (1)	Screw/bolt for tie-down eye	*BA68.50-P-1001-03I
3	Unscrew bolt (2)
4	Remove cover (3)
5	Install in the reverse order

CARGO RETAINERS

Number	Designation		Model 205
BA68.50-P-1001-03I	Screw/bolt for tie-down eye	Nm	24

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ TRUCK CO., INC.
