Remove/install interior paneling on roll bar - AR68.30-P-1380LWR
MODEL 205.4

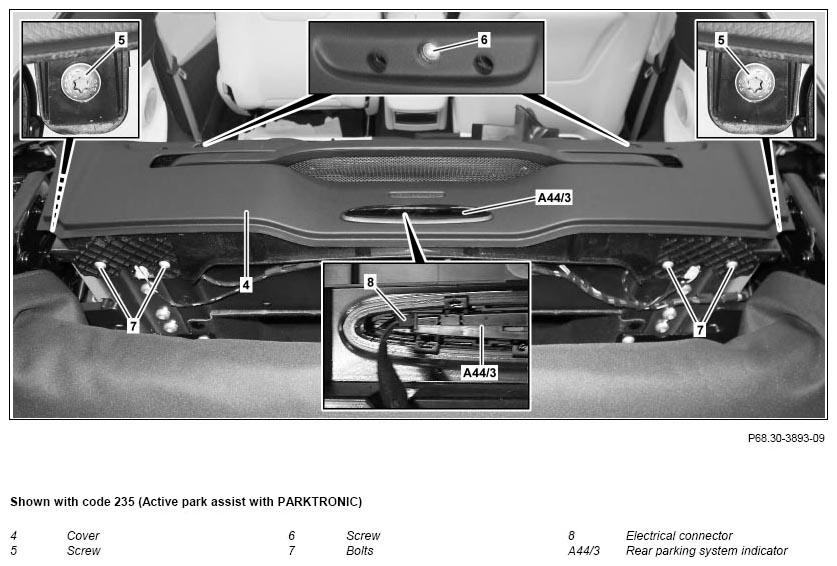

Shown with code 235 (Active park assist with PARKTRONIC)
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bar extends. Do not use the cover in the area of the roll bar as a shelf for objects. |
AS91.00-Z-0003-01LCA | |
| Remove/install | |||
| 1 | Cover both rear fenders | ||
| 2 | Unlock backrest in rear | ||
| 3 | Move soft top to repair position R2 | AR77.30-P-1030LWR | |
| 4 | Completely open right and left side window in rear | ||

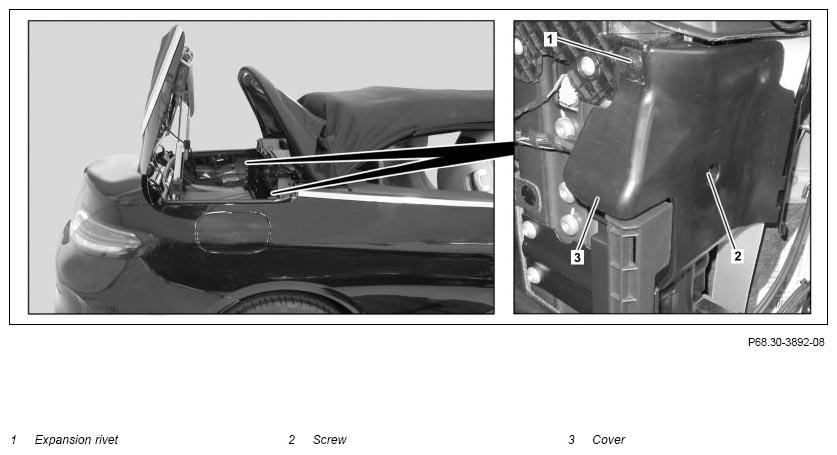

| 5 | Remove expansion rivet (1) on right and left side of vehicle | ||
| 6 | Unscrew bolts (2) on right and left side of vehicle | ||
| 7 | Remove covers (3) o right and left side of vehicle | ||
| 8 | Move soft top to repair position R4 | AR77.30-P-1030LWR | |
| 9 | Remove both head restraints in rear | AR91.16-P-1770LWR | |
| 10 | Remove screw/bolts (5, 6, 7) | ||
| 11 | Unclip paneling (4) upward and turn | ||
| 12 | Disconnect electrical connector (8) from rear parking system display (A44/3) and remove paneling (4) | Model 205.4 with code 235 (Active Parking Assist with PARKTRONIC) |
|
| 13 | Remove rear parking system display (A44/3) from paneling (4) | Model 205.4 with code 235 (Active Parking Assist with PARKTRONIC) When replacing paneling (4). |
|
| 14 | Install in the reverse order |
