Remove/Install Trunk Lid - AR88.50-P-5000LW

Model 205.0/1/3

Model 213.0/1

Model 238.3

Courtesy of MERCEDES-BENZ USA

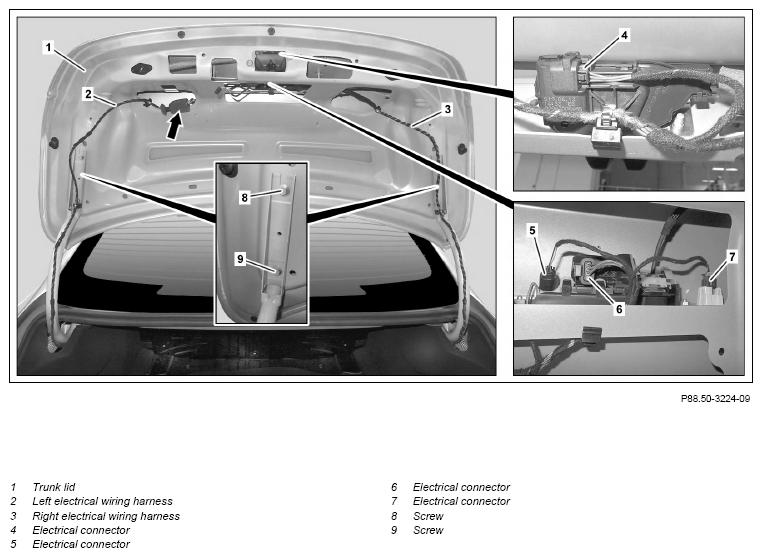

Shown on MODEL 205.0 with CODE 501 (360° camera)

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove
1	Remove panel at trunk lid (1)	Model 205.0/1	AR68.30-P-8151LW
		Model 205.3	AR68.30-P-8151CLW
		Model 213.0/1, 238.3	AR68.30-P-8151LWE
2	Disconnect electrical connector on inner left rear lamp unit and inner right rear lamp unit	Model 205.3, 238.3
3	Disconnect left electrical wiring harness (2) on separating point (arrow) and remove from trunk lid (1)	Model 205.0/1, 213.0/1 with code 218 (Rear view camera) Model 205.0/1, 213.0/1 with code 501 (360° camera) Model 205.3, 238.3
4	Disconnect electrical connectors (4, 5, 6 and 7) and remove right electrical wiring harness (3) from trunk lid (1)	The number of electrical connectors (4, 5, 6 and 7) can vary according to model and equipment.
5	Remove screw/bolts (9)
6	Loosen screws/bolts (8)	Helper required to secure trunk lid (1).
7	Remove trunk lid (1) upward	Helper required.
	Install
8	Hook trunk lid (1) into hinges with bolts (8)	Helper required.
9	Screw in bolts (8) so that trunk lid (1) can still be moved	Tighten bolts (8) when adjusting trunk lid (1). Helper required.
10	Screw in bolts (9) so that trunk lid (1) can still be moved	Tighten bolts (9) when adjusting trunk lid (1).
11	Install right electrical wiring harness (3) and connect electrical connectors (4, 5, 6 and 7)	The number of electrical connectors (4, 5, 6 and 7) can vary according to model and equipment.
12	Connect left electrical wiring harness (2) to separating point (arrow) and install on trunk lid (1)	Model 205.0/1, 213.0/1 with code 218 (Rear view camera) Model 205.0/1, 213.0/1 with code 501 (360° camera) Model 205.3, 238.3
13	Disconnect electrical connector on inner left rear lamp unit and inner right rear lamp unit	Model 205.3, 238.3
14	Adjust trunk lid (1)		AR88.50-P-5200LW
15	Install panel at trunk lid (1)	Model 205.0/1	AR68.30-P-8151LW
		Model 205.3	AR68.30-P-8151CLW
		Model 213.0/1, 238.3	AR68.30-P-8151LWE
