Remove/Install Trunk Lid Cover - AR68.30-P-8151CLW
Model 205.3

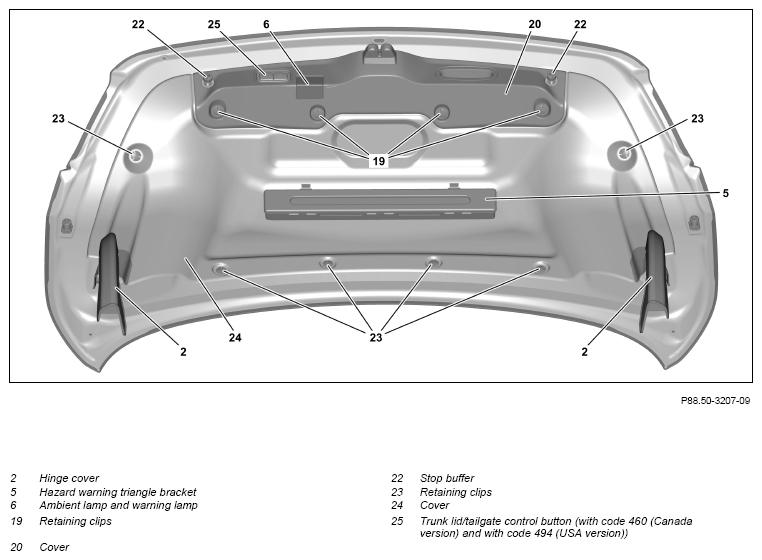

Shown on model 205.3 up to model year 2020 with removed trunk lid
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove warning triangle from warning triangle bracket (5). | ||
| 2 | Remove warning triangle bracket (5). | ||
| 3 | Remove hinge covers (2). | ||
| 4 | Unclip retaining clips (19) and release trim (20) until electrical connectors can be accessed. | Fig 1 | |
| 5 | Release and disconnect electrical connectors of ambient lamp and warning lamp (6). | Model 205.3 up to model year 2020 |
|
| 6 | Release and disconnect electrical connectors of trunk lid/tailgate control button (25). | Model 205.3 with code 460 (Canada version) with code 494 (US version) |
|
| 7 | Remove trim (20). | ||
| 8 | Remove stop buffers (22). | ||
| 9 | Unclip retaining clips (23) and remove trim (24). | Fig 1 | |
| 10 | Install in the reverse order. | ||
| Adjust | |||
| 11 | Unscrew stop buffers (22) until trunk lid rests on stop buffers (22) in closed condition. |
