Remove/Install Trunk Lid Cover - AR68.30-P-8151LW
Model 205.0/1
Shown on model 205.0 up to model year 2020
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove warning triangle from warning triangle bracket (5). | ||
| 2 | Remove warning triangle bracket (5). | ||
| 3 | Remove hinge covers (2). | ||

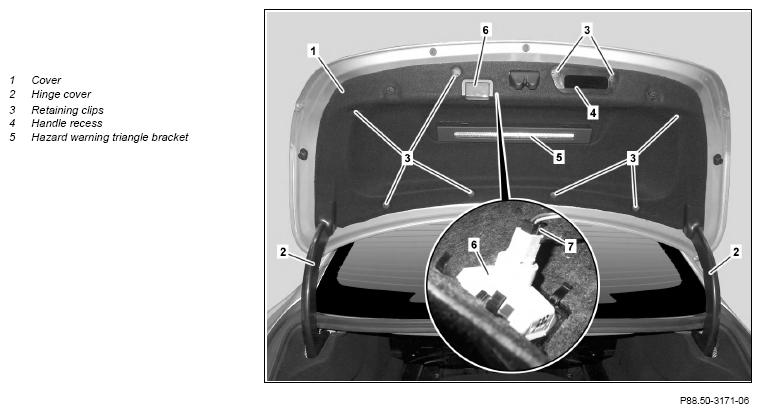

| 4 | Unclip both retaining clips (3) at handle recess shell (4) and remove handle recess shell (4). | Fig 1 | |
| 5 | Unclip remaining retaining clips (3) and release trim (1) until electrical connectors can be accessed. | Fig 1 | |
| 6 | Release and disconnect electrical connectors. | ||
| 7 | Remove trim (1). | ||
| 8 | Install in the reverse order. |
