Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600LWX
Transmission 725.0 in model 205 with engine 276.8 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.0 in model 253 with engine 276.8 with code M005 (Vehicles with 4MATIC/all-wheel drive)

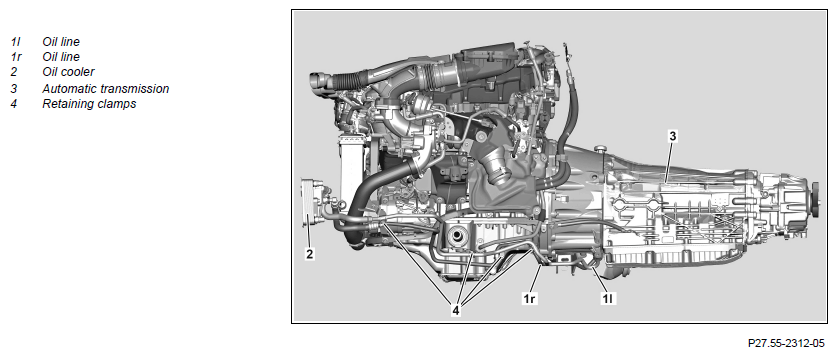

Fig 1: Automatic Transmission Oil Cooling Lines Components Location - Transmission 725.0 With Engine 276.8, With Code M005, In Model 205
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove intermediate shaft | AR33.30-P-0625LWX | |
| 2 | Remove right front axle shafts | AR33.30-P-0620LW | |
| 3 | Detach screws/bolts of front engine mounts | Transmission 725.0 in model 205 with engine 276.8 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR22.10-P-4330MMV |
| Remove left front engine mount Transmission 725.0 in model 253 with engine 276.8 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR22.10-P-1104MMX | ||
| Remove right front engine mount Transmission 725.0 in model 253 with engine 276.8 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR22.10-P-1105MMX | ||
| 4 | Attach engine hoist | AR33.10-P-0105LW | |
| 5 | Lift engine until oil lines (1l, 1r) are exposed | ||
| 6 | Detach retaining clamps (4) from oil lines (1l, 1r) | *BA27.55-P-1003-01D | |
| *BA27.55-P-1004-01D | |||
| *BA27.55-P-1005-01D | |||
| *BA27.55-P-1006-01D | |||
| 7 | Detach oil lines (1l, 1r) from oil cooler (2) | AR27.10-P-0501-03LF | |
| Fig 2 | |||
| 8 | Seal openings in oil cooler (2) using suitable stop plugs | Fig 2 | |
| 9 | Detach oil lines (1l, 1r) from automatic transmission (3) | AR27.10-P-0501-03LF | |
| Fig 2 | |||
| 10 | Seal openings in automatic transmission (3) using suitable stop plugs | Fig 2 | |
| 11 | Remove oil lines (1l, 1r) toward rear | ||
| 12 | Install in the reverse order | ||
| 13 | Check oil level in automatic transmission (3) and correct | AR27.00-P-0270EWN | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 14 | Check automatic transmission (3) for proper operation and leak tightness |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1003-01D | Screw, oil cooler oil line to oil pan | Nm | 12 |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1004-01D | Bolt, clamp to oil line | Nm | 8 |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1005-01D | Bolt, clamp of oil cooler oil line to bracket | Nm | 8 |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1006-01D | Screw, oil cooler oil line clamp to oil pan | Nm | 8 |
