Remove/Install Automatic Transmission Fluid Cooler - AR27.55-P-1000RFH
Transmission 724.2 in model 205, 253
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove bottom engine compartment paneling at front | AR61.20-P-1105LW | |
| 2 | Drain coolant from low-temperature circuit | Transmission 724.2 in model 205, 253 with engine 274.9 | AR09.41-P-6834LW |
| 3 | Detach oil cooling lines (1r, 1v) from oil cooler (3) | AR27.10-P-0501-03LF | |

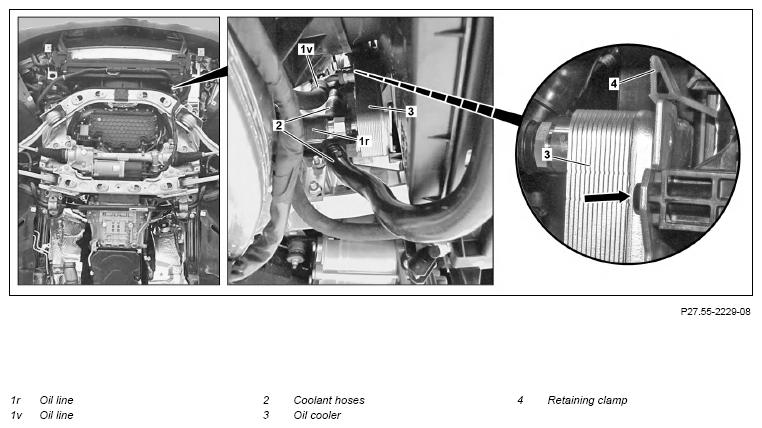

| Fig 2 | |||
| 4 | Detach coolant hoses (2) from oil cooler (3) | ||
| 5 | Push retaining clamp (4) upwards and remove oil cooler (3) | If retaining clip (4) is damaged ↓ Secure oil cooler (3) at position marked by arrow using repair bolt and washer |
|
| 6 | Install in the reverse order | ||
| 7 | Add coolant to low-temperature circuit and bleed | Transmission 724.2 in model 205, 253 with engine 274.9 | AR09.41-P-6834LW |
| Check | |||
| 8 | Check fluid level in automatic transmission and adjust to correct level | AR27.00-P-0270EH | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform engine test run, check oil cooling lines (1r, 1v) and cooling system for leaktightness |
