Drain/Fill Low-Temperature Circuit Coolant - AR09.41-P-6834LW
Model 205 with engine 274.9, 276.8, 651
Model 218 with engine 274.9
Model 253 with engine 274.9, 276.8, 642, 651
MODIFICATION NOTES
| 22.06.2016 | Cooling system | ENGINE 274 in MODEL 253 (except 253.354/954) | BF20.00-P-1001-02CA |
| 22.06.2016 | Cooling system | Engine 274 in model 253.954 | BF20.00-P-1001-02CA |
| 04.04.2019 | Cooling system | Engine 274 in model 253.353/354/953/954 | BF20.00-P-1001-02CA |
Shown on model 253 with engine 642
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Drain off | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove cap on low-temperature circuit coolant expansion reservoir | ||
| 3 | Remove front and central sections of the lower engine compartment paneling | Model 218 with engine 274.9 | AR61.20-P-1105EW |
| Model 205 with engine 274.9, 276.8, 651 Model 253 with engine 274.9, 276.8, 642, 651 |
AR61.20-P-1105LW | ||

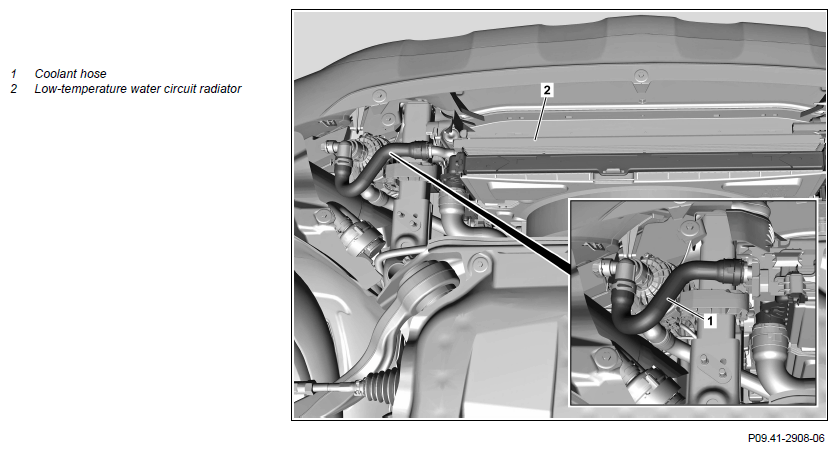

| 4 | Detach coolant hose (1) on the low-temperature circuit cooler (2), drain off coolant and catch in a suitable container | AR20.20-P-7441-01RQ | |
| 5 | Switch on ignition for about 5 s and switch off again and repeat the procedure after a waiting time of about 30 s twice, in order to empty the coolant circuit. | ||
| Pour in | |||
| 6 | Mount coolant hose (1) on low-temperature circuit cooler (2) | AR20.20-P-7441-01RQ | |
| 7 | Add clean coolant and bleed low-temperature circuit engine cooling system | AR20.00-P-1142-04A | |
| *BF20.00-P-1001-02W | |||
Model 205.012/212 with engine 651 Model 253 with engine 651 Cooling system |
BF20.00-P-1001-02AA | ||
Model 205.047/147/247 with engine 274 Model 205.142/145/240/242/243/244/245 with engine 274 Model 218 with engine 274.9 Model 253 (except 253.354/954) with engine 274 Model 253.354 with engine 274 Model 253.954 with engine 274 Cooling system |
*BF20.00-P-1001-02CA | ||
Model 253 with engine 276 Cooling system |
*BF20.00-P-1001-02BA | ||
| Fig 2 | |||
| Fig 4 | |||
| Fig 1 | |||
| Fig 3 | |||
| 8 | Check low-temperature circuit for leaktightness | AR09.41-P-1010LW | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform an engine test run and check cooling system for proper operation | ||
| 10 | Install front and center sections of lower engine compartment paneling | Model 218 with engine 274.9 | AR61.20-P-1105EW |
| Model 205 with engine 274.9, 276.8, 651 Model 253 with engine 274.9, 276.8, 642, 651 |
AR61.20-P-1105LW | ||
| 11 | Install upper engine cover |
COOLING SYSTEM
| Number | Designation | Engine 651 in model 253 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02AA | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 10, 0 |
| Low temperature circuit | Liter | ≈ 2, 5 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 651 in model 253 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02AA | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 10, 0 |
| Low temperature circuit | Liter | ≈ 2, 5 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 276 in model 205.064/066/164/264/266/364/366/464/466 | Engine 276 in model 253 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02BA | Cooling system | Workshop replacement amount | Main circuit | I | ≈ 10, 9 | ≈ 9, 5 |
| Low-temperature circuit | I | ≈ 3, 0 | ≈ 2, 5 | |||
| Antifreeze/water | Up to -37°C | % | 50/50 | 50/50 | ||
| As of -38°C | % | 55/45 | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | BB00.40-P-0325-00A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | BB00.40-P-0326-00A | ||||
COOLING SYSTEM
| Number | Designation | Engine 274 in model 205.040/042/043/044/045/048/049/140/142/143/145/148/240/242/243/244/245/248/340/342/343/345/348/349/440/442/443/445/448/449 | Engine 274 in model 205.047/147/247 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02CA | Cooling system | Workshop replacement amount | Main circuit | I | ≈ 9, 0 | ≈ 9, 0 |
| Low-temperature circuit | I | ≈ 3, 0 | ≈ 3, 0 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 274 in model 218 | Engine 274 in model 253 (except 253.353/354/953/954) | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02CA | Cooling system | Workshop replacement amount | Main circuit | I | ≈ 8, 5 | ≈ 9, 0 |
| Low-temperature circuit | I | - | ≈ 5, 0 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 274 in model 253.353/354/953/954 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02CA | Cooling system | Workshop replacement amount | Main circuit | I | ≈ 6, 0 |
| Low-temperature circuit | I | - | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 642 in model 253 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02W | Cooling system | Workshop replacement amount | Main circuit | I | ≈ 13, 0 |
| Low-temperature circuit | I | ≈ 2, 5 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Specification Sheet | BB00.40-P-0310-01A | ||||
| Specification Sheet | BB00.40-P-0325-06A | ||||
| Specification Sheet | BB00.40-P-0326-06A | ||||
