Remove/Install Shift Shaft Radial Shaft Sealing Ring - AR27.40-P-0220A

Transmission 722.55/9

Transmission with intelligent servo module (ISM)

Shown on TRANSMISSION 722.9

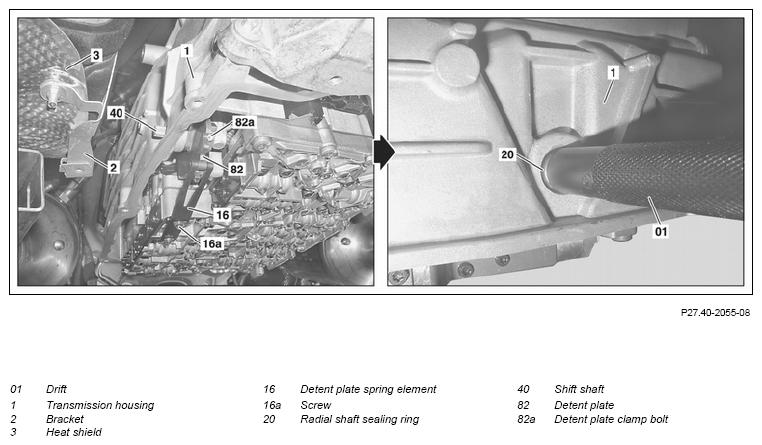

Fig 1: Gearshift Shaft Radial Shaft Sealing Ring Components Location - Transmission 722.55/9 In Model 205 (Transmission With Intelligent Servo Module (ISM))

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove intelligent servo module (ISM).	Transmission 722.9 in model 463Transmission with intelligent servo module (ISM)	AR27.19-P-0550GW
		Transmission 722.9 in model 251	AR27.19-P-0550RT
		Transmission 722.9 in model 221.0/1	AR27.19-P-0550SX
		Transmission 722 in model 164	AR27.19-P-0550GZA
		Transmission 722.9 in model 205 with engine 276	AR27.19-P-0550LWA
		Transmission 722.9 in model 222 except code Z07 (B7 armoring on special protection version)	AR27.19-P-0550LF
		Transmission 722.9 in model 222 with code Z07 (B7 armoring on special protection version)	AR27.19-P-0550LFS
		Transmission 722.9 in model 205 with engine 651	AR27.19-P-0550LWB
2	Remove heat shield (3) of left catalytic converter and bracket (2) of lower engine compartment lining.	Transmission 722.55/9 in model 164, 221, 251 Transmission with intelligent servo module (ISM)
	Clean
3	Clean transmission housing (1) in area of gearshift shaft (40) and radial shaft sealing ring (20).	Assembly cleaner	*BR00.45-Z-1028-04A
4	Remove oil pan.	Transmission 722.9 in model 164, 171, 172, 203, 204, 205, 207, 209, 211, 212, 215, 216, 218, 219, 220, 221, 230, 231, 251 Transmission with intelligent servo module (ISM) Transmission 722.9 in model 463 Transmission with intelligent servo module (ISM)	AR27.10-P-7030W
		Transmission 722.9 in model 166, 292 Transmission with intelligent servo module (ISM)	AR27.10-P-7031GQ
		Transmission 722.9 in model 217, 222 Transmission with intelligent servo module (ISM)	AR27.10-P-7031LFA
		Transmission 722.55 Transmission with intelligent servo module (ISM)	AR27.10-P-7030GZH
5	Remove screw (16a) and detach detent plate spring element (16).
6	Remove detent plate clamp screw (82a) and pull out shift shaft (40).
7	Pry out the radial shaft sealing ring (20) using a suitable tool.	Make sure that the contact surface in the transmission housing (1) is not damaged. Leaks can occur otherwise.
	Check
8	Check shift shaft (40) for galling and damage; install a new shift shaft if necessary.
	Install
9	Use drift (01) to drive in radial shaft sealing ring (20) up to end stop in transmission housing (1).	Check radial shaft sealing ring (20) is correctly seated in transmission housing (1). Leaks can occur otherwise. Drift	Fig 2
10	Insert shift shaft (40) and screw in clamp screw for detent plate (82a).	Make sure that the shift shaft (40) is positioned correctly in the detent plate (82).
		Transmission 722.9 in model 463 Bolt, detent plate to range selector lever	*BA27.40-P-1007-01E
		Transmission 722.55 Transmission 722.9 Bolt, detent plate to range selector lever	*BA27.40-P-1006-01A
		Transmission 722.9 Transmission with intelligent servo module (ISM) Shift shaft clamp bolt to detent plate	*BA27.19-P-1004-01A
11	Mount detent plate spring element (16) and screw in screw (16a).	Transmission 722.9 in model 463 Bolt, leaf spring to transmission housing	*BA27.40-P-1013-01E
		Transmission 722.55 Transmission 722.9 Bolt, leaf spring to transmission housing	*BA27.40-P-1019-01A
		Transmission 722.55 Transmission with intelligent servo module (ISM) Transmission 722.9 Detent plate spring element bolt to electrohydraulic controller unit	*BA27.19-P-1005-01A
12	Install oil pan.	Transmission 722.55Transmission with intelligent servo module (ISM)	AR27.10-P-7030GZH
		Transmission 722.9 in model 164, 171, 172, 203, 204, 205, 207, 209, 211, 212, 215, 216, 218, 219, 220, 221, 230, 231, 251 Transmission with intelligent servo module (ISM) Transmission 722.9 in model 463 Transmission with intelligent servo module (ISM)	AR27.10-P-7030W
		Transmission 722.9 in model 166, 292 Transmission with intelligent servo module (ISM)	AR27.10-P-7031GQ
		Transmission 722.9 in model 217, 222 Transmission with intelligent servo module (ISM)	AR27.10-P-7031LFA
13	Install heat shield (3) of left catalytic converter and bracket (2) of lower engine compartment lining.	Transmission 722.55/9 in model 164, 221, 251Transmission with intelligent servo module (ISM)
14	Install intelligent servo module (ISM).	Transmission 722.9 in model 463 Transmission with intelligent servo module (ISM)	AR27.19-P-0550GW
		Transmission 722.9 in model 251	AR27.19-P-0550RT
		Transmission 722.9 in model 221.0/1	AR27.19-P-0550SX
		Transmission 722 in model 164	AR27.19-P-0550GZA
		Transmission 722.9 in model 205 with engine 276	AR27.19-P-0550LWA
		Transmission 722.9 in model 222 except code Z07 (B7 armoring on special protection version)	AR27.19-P-0550LF
		Transmission 722.9 in model 222 with code Z07 (B7 armoring on special protection version)	AR27.19-P-0550LFS
		Transmission 722.9 in model 205 with engine 651	AR27.19-P-0550LWB
15	Fill transmission with transmission oil.	Transmission 722.9 (except 722.96/97) Transmission with intelligent servo module (ISM)	AR27.00-P-0270W
		Transmission 722.96 Transmission with intelligent servo module (ISM)	AR27.00-P-0270SYZ
		Transmission 722.55 Transmission with intelligent servo module (ISM)	AR27.00-P-0100GZH
	Check
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
16	Perform engine test run and check transmission housing (1) at connecting points and on radial shaft sealing ring (20) for leak tightness then check the transmission for proper operation.

Fig 2: Identifying Drift (722 589 02 15 00)
