Fill Automatic Transmission With Transmission Oil - AR27.00-P-0270W

Transmission 722.9 (except 722.96/97)

Transmission 722.9

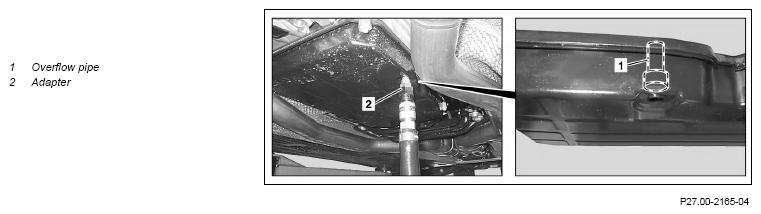

G13023102Courtesy of MERCEDES-BENZ USA

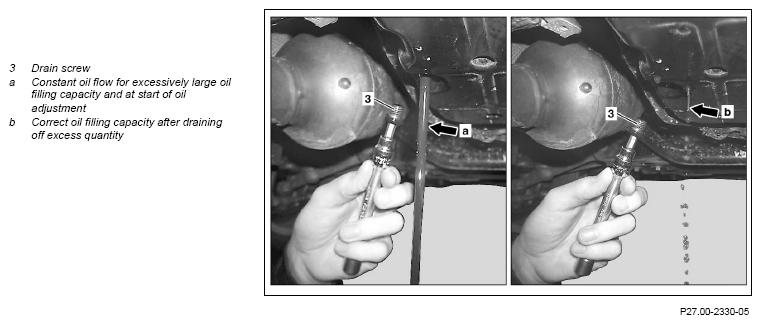

G13023103Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
  Notes on automatic transmission   AH27.19-P-0001-01NKB
  Fill with transmission oil
1 Raise vehicle with vehicle lift Transmission 722.9 (except 722.96/97) in model all
Transmission 722.9 in model all
    Transmission 722.9 (except 722.96/97) in model 205 AR00.60-P-1002LWG
    Transmission 722.9 (except 722.96/97) in model 171.4, 172 AR00.60-P-1000V
    Transmission 722.9 (except 722.96/97) in model 164, 166, 292 AR00.60-P-1000GZ
    Transmission 722.9 (except 722.96/97) in model 219, 231 AR00.60-P-1000TX
    Transmission 722.9 (except 722.96/97) in model 217, 222 AR00.60-P-1000LF
    Transmission 722.9 (except 722.96/97) in model 212, 218 AR00.60-P-0100EWS
    Transmission 722.9 (except 722.96/97) in model 203, 209 AR00.60-P-1000P
    Transmission 722.9 (except 722.96/97) in model 251 AR00.60-P-1000RT
    Transmission 722.9 (except 722.96/97) in model 216, 221 AR00.60-P-1000SX
    Transmission 722.9 (except 722.96/97) in model 211 AR00.60-P-1000T
    Transmission 722.9 in model 463
as of model year 2010 up to model year 2013
IMPORTANT The vehicle must be situated on the lifting platform so that it is level in both the longitudinal and transverse axes.		 AR00.60-P-1000G
2 Check oil pan of transmission Transmission 722.9 (except 722.96/97)
Transmission 722.9
REFER TO COMPONENT MODIFICATIONS Oil pan and overflow tube modified Transmission 722.9 (except 722.96/97) as of 6/21/10 with engine 113
Transmission 722.9 (except 722.96/97) as of 6/21/10 with engine 156
Transmission 722.9 (except 722.96/97) as of 6/21/10 with engine 157
Transmission 722.9 (except 722.96/97) as of 6/21/10 with engine 271
Transmission 722.9 (except 722.96/97) as of 6/21/10 with engine 272
Transmission 722.9 (except 722.96/97) as of 6/21/10 with engine 273
Transmission 722.9 (except 722.96/97) as of 6/21/10 with engine 276
Transmission 722.9 (except 722.96/97) as of 6/21/10 with engine 278
Transmission 722.9 (except 722.96/97) as of 6/21/10 with engine 642
Transmission 722.9 (except 722.96/97) as of 6/21/10 with engine 651		 BT27.10-P-0006-01A
REFER TO COMPONENT MODIFICATIONS Oil pan and overflow tube modified Transmission 722.901
IMPORTANT The oil pan and the overflow pipe (1) have been redesigned in order to optimize the oil supply of the transmission. It is essential to maintain the transmission oil temperatures of the respective oil pan when checking and correcting the transmission oil level.		 BT27.10-P-0006-01W
3 Remove drain screw (3)
4 Attach adapter (2) and connect oil dispenser
REFER TO SPECIAL TOOLS 000 588 06 82 00 Oil dispenser   WS18.00-P-0026B
5 Pump 6 l of automatic transmission fluid into transmission
REFER TO SPECIAL TOOLS 000 588 06 82 00 Oil dispenser   WS18.00-P-0026B
REFER TO CAPACITIES & SPECIFICATIONS Automatic transmission fluids (ATF) (specification 236.14) Transmission 722.9 (except 722.96/97) up to 6/18/10
Transmission 722.9 up to 6/18/10		 BB00.40-P-0236-14A
REFER TO CAPACITIES & SPECIFICATIONS Automatic transmission fluids (ATF) (specification 236.15) Transmission 722.9 (except 722.96/97) as of 6/18/10
Transmission 722.9 as of 6/18/10
IMPORTANT On transmissions that have been repaired, add the quantity of transmission oil drained +0.5 l.		 BB00.40-P-0236-15A
    FLUID SPECIFICATION Transmission 722.9 (except 722.96/97)
Transmission 722.90
Filling capacity		 *BF27.00-P-1001-01C
6 Start engine
7 Connect diagnostic system and determine transmission oil temperature
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 722.9 (except 722.96/97) in model 164, 166, 171.4, 172, 203, 204, 207, 209, 211, 212, 215, 216, 218, 219, 220, 221, 230, 231, 251, 292
Transmission 722.9 in model 463
up to model year 2019		 AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 722.9 (except 722.96/97) in model 205, 217, 222 AD00.00-P-2000-04B
8.1 Heat transmission oil temperature to 90°C/194°F In vehicles with removed/replaced additional transmission cooler.
8.2 Heat transmission oil temperature to 45°C/113°F In vehicles without additional transmission cooler, with tapered oil pan and with white or green overflow pipe.
8.3 Heat transmission oil temperature to 35°C/95°F In vehicles without additional transmission cooler and without tapered oil pan, with black overflow pipe.
9.1 Switch off engine and allow transmission oil to cool down In vehicles with removed/replaced additional transmission cooler.
9.2 Turn off engine In vehicles without additional transmission cooler.
10 Determine transmission oil temperature
11 Start engine and leave transmission to run in drive range P
12.1 Add approx. 4 l transmission oil After replacing the transmission and torque converter.
REFER TO SPECIAL TOOLS 000 588 06 82 00 Oil dispenser   WS18.00-P-0026B
    FLUID SPECIFICATION Transmission 722.9 (except 722.96/97)
Transmission 722.90
Filling capacity		 *BF27.00-P-1001-01C
12.2 Add approx. 2 l transmission oil If the torque converter has not been emptied.
REFER TO SPECIAL TOOLS 000 588 06 82 00 Oil dispenser   WS18.00-P-0026B
    FLUID SPECIFICATION Transmission 722.9 (except 722.96/97)
Transmission 722.90
Filling capacity		 *BF27.00-P-1001-01C
  Correct transmission oil level
13 Shift through drive ranges P R N D several times with the brake applied and the engine idling
14 Shift transmission to drive range P and let engine run at idle speed
15 Determine transmission oil temperature IMPORTANT The transmission oil temperature must not exceed the specified value because the overflow pipe (1) in the oil pan is designed for the corresponding transmission oil temperature.
IMPORTANT On transmissions with tapered oil pan and with white or green overflow pipe (1), the transmission oil temperature must be 45°C/113°F.
IMPORTANT On transmissions without tapered oil pan and with black overflow pipe (1), the transmission oil temperature must be 35°C/95°F.
16 Detach adapter (2) from oil pan
17 Drain off constant oil stream (arrow a) at specified transmission oil temperature until only drops come out (refer to correct oil filling capacity (arrow b)) NOTES
The engine must be idling and the transmission oil temperature must not be above the relevant specified transmission oil temperature.
Otherwise, at higher transmission oil temperatures, too much transmission oil is drained off.
IMPORTANT If the oil stream is not constant when the drain screw (3) is opened, the transmission oil level must be corrected (from step 11 onwards) and then adjusted again.
IMPORTANT On transmissions with tapered oil pan and with white or green overflow pipe (1), the transmission oil temperature must be 45°C/113°F.
IMPORTANT On transmissions without tapered oil pan and with black overflow pipe (1), the transmission oil temperature must be 35°C/95°F.
18 Screw in drain screw (3) IMPORTANT Replace seal.
TORQUE SPECIFICATION Drain screw to oil pan		 *BA27.10-P-1001-03D
19 Turn off engine
20 Disconnect diagnostic system
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 722.9 (except 722.96/97) in model 164, 166, 171.4, 172, 203, 204, 207, 209, 211, 212, 215, 216, 218, 219, 220, 221, 230, 231, 251, 292
Transmission 722.9 in model 463
up to model year 2019		 AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 722.9 (except 722.96/97) in model 205, 217, 222 AD00.00-P-2000-04B
21 Remove vehicle from lifting platform Transmission 722.9 (except 722.96/97) in model all
Transmission 722.9 in model all
Transmission 722.9 (except 722.96/97) in model 205		 AR00.60-P-1002LWG
    Transmission 722.9 (except 722.96/97) in model 171, 172 AR00.60-P-1000V
    Transmission 722.9 (except 722.96/97) in model 164, 166, 292 AR00.60-P-1000GZ
    Transmission 722.9 (except 722.96/97) in model 219, 231 AR00.60-P-1000TX
    Transmission 722.9 (except 722.96/97) in model 217, 222 AR00.60-P-1000LF
    Transmission 722.9 (except 722.96/97) in model 212, 218 AR00.60-P-0100EWS
    Transmission 722.9 (except 722.96/97) in model 203, 209 AR00.60-P-1000P
    Transmission 722.9 (except 722.96/97) in model 251 AR00.60-P-1000RT
    Transmission 722.9 (except 722.96/97) in model 216, 221 AR00.60-P-1000SX
    Transmission 722.9 (except 722.96/97) in model 211 AR00.60-P-1000T
    Transmission 722.9 in model 463
as of model year 2010 up to model year 2013		 AR00.60-P-1000G
AUTOMATIC TRANSMISSION OIL PAN

Number Designation Transmission 722.9
BA27.10-P-1001-03D Drain screw to oil pan Nm 22
AUTOMATIC TRANSMISSION

Number Designation Transmission 722.90/932/95/99 Transmission 722.930/931
BF27.00-P-1001-01C Filling capacity with complete refill Liter 9, 0 7, 1
with oil change Liter - -
Sheet   BB00.40-P-0236-14A BB00.40-P-0236-14A
Sheet   BB00.40-P-0236-15A BB00.40-P-0236-15A
