Remove/install spring control arm, replace rubber bushing - AR35.20-P-0114LW
MODEL 205
MODIFICATION NOTES
| 18.6.14 | Self-locking nut on shock absorber spring link | BA32.25-P-1001-03P |

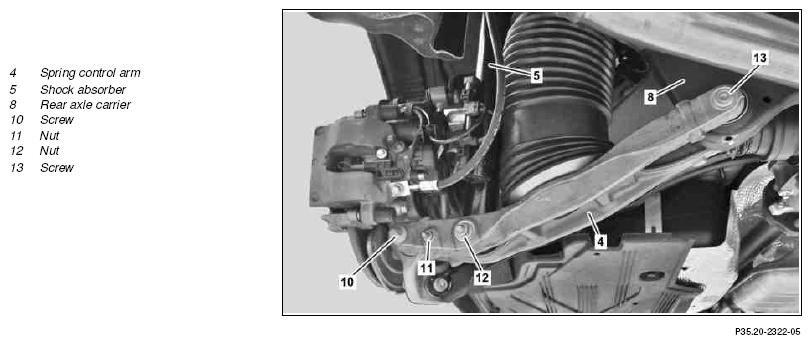

Fig 1: Identifying Spring Control Arm Remove/Install Components - Shown On Model 205 Except Code 489 (Airmatic)
Shown on MODEL 205 except CODE 489 (AIRmatic)
MODEL 205 with CODE 489 (AIRmatic)

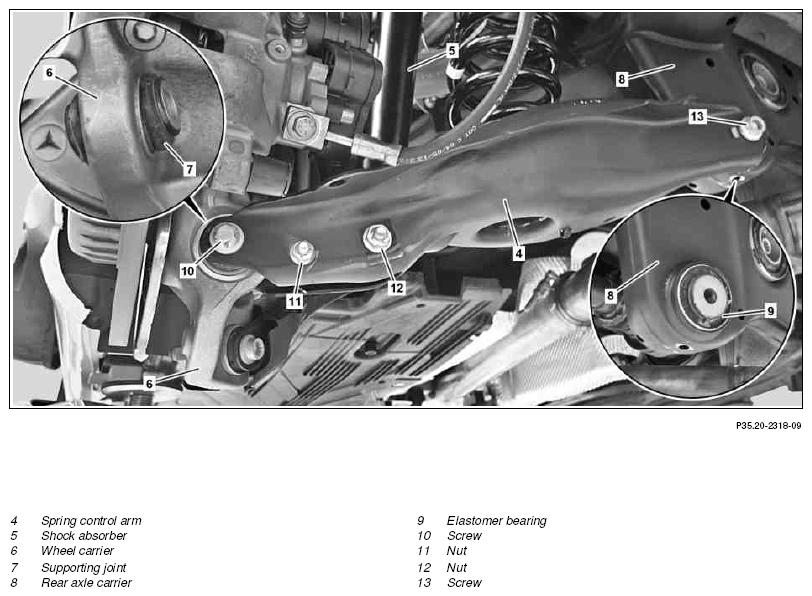

Fig 2: Identifying Spring Control Arm Remove/Install Components - Shown On Model 205 With Code 489 (Airmatic)
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Detach rear complete wheel | AR40.10-P-1101A | |
| 2.1 | Remove rear axle spring | MODEL 205 without CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) |
|
| AR32.20-P-0230LW | |||
| 2.2 | Remove air spring | MODEL 205 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) |
|
| AR32.22-P-1500LW | |||
| 3 | Unscrew nut (11) and pull bolt of torsion bar linkage out of spring control arm (4) | *BA32.20-P-1003-04S | |
| 4 | Unscrew nut (12) and pull bolt of shock absorber (5) out of spring control arm (4) | *BA32.25-P-1001-03P | |
| 5 | Unscrew nuts of bolts (10, 13) and pull bolts (10, 13) out of spring control arm (4) | *BA35.20-P-1002-01I | |
| *BA35.20-P-1001-01I | |||
| 6 | Remove spring control arm (4) from wheel carrier (6) and rear axle carrier (8) | ||
| Check | |||
| 7 | Check elastomer bearing (9) in rear axle carrier (8) | If damage is present: ↓ Replace elastomer bearing (9) in rear axle carrier (8). |
|
| AR35.20-P-0114-01LW | |||
| Fig 5 | |||
| Fig 4 | |||
| Fig 6 | |||
| 8 | Remove required components of exhaust system | When replacing elastomer bearing (9) in rear axle carrier (8). | |
| MODEL 205 with ENGINE 274.9 | AR49.10-P-7100LWA | ||
| MODEL 205 with ENGINE 651 | AR49.10-P-7100LWB | ||

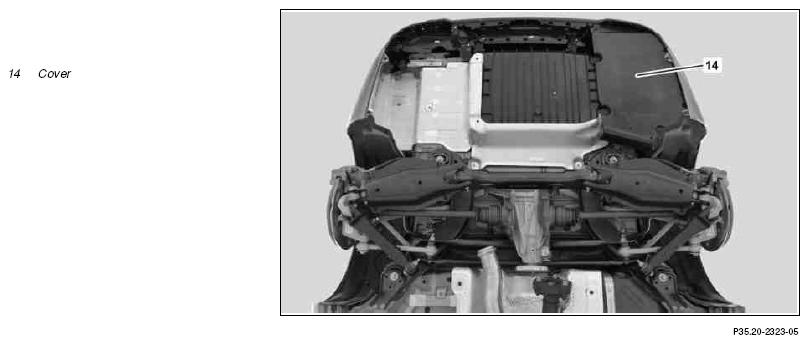

| 9 | Remove cover (14) | When replacing right elastomer bearing (9) in rear axle carrier (8), if installed. | |
| 10 | Check supporting ball joint (7) in wheel carrier (6) | If damage is present: ↓ Replace supporting ball joint (7) in wheel carrier (6). |
|
| AR35.20-P-0116LW | |||
| 11 | Install in the reverse order | ||
| 12 | Perform wheel alignment check | AR40.20-P-0200LW |
REAR AXLE TORSION BAR
| Number | Designation | MODEL 205 except CODE 488/489/492 | MODEL 205 with CODE 489, except CODE 488/492 | ||
|---|---|---|---|---|---|
| BA32.20-P-1003-04S | Nut, torsion bar linkage to spring control arm | Stage 1 | Nm | 20 | 20 |
| Stage 2 | ∠° | 180 | 360 | ||
REAR AXLE TORSION BAR
| Number | Designation | MODEL 205 with CODE 488 or with CODE 492 | ||
|---|---|---|---|---|
| BA32.20-P-1003-04S | Nut, torsion bar linkage to spring control arm | Stage 1 | Nm | - |
| Stage 2 | ∠° | - | ||
REAR AXLE SHOCK ABSORBER
| Number | Designation | MODEL 205 | |||
|---|---|---|---|---|---|
| BA32.25-P-1001-03P | Self-locking nut, shock absorber to spring control arm | Air suspension | Stage 1 | Nm | 100 |
| Stage 2 | ∠° | 90 | |||
| Steel suspension | Stage 1 | Nm | 60 | ||
| Stage 2 | ∠° | 60 | |||
SPRING CONTROL ARM
| Number | Designation | MODEL 205 | ||
|---|---|---|---|---|
| BA35.20-P-1001-01I | Screw/bolt, spring control arm to rear axle carrier | Stage 1 | Nm | 80 |
| Stage 2 | ∠° | 90 | ||
SPRING CONTROL ARM
| Number | Designation | MODEL 205 | ||
|---|---|---|---|---|
| BA35.20-P-1002-01I | Screw/bolt, spring control arm to wheel carrier | Stage 1 | Nm | 80 |
| Stage 2 | ∠° | 90 | ||
