Remove/install components for exhaust system - AR49.10-P-7100LWA

Engine 274.9, 276.8 in model 205

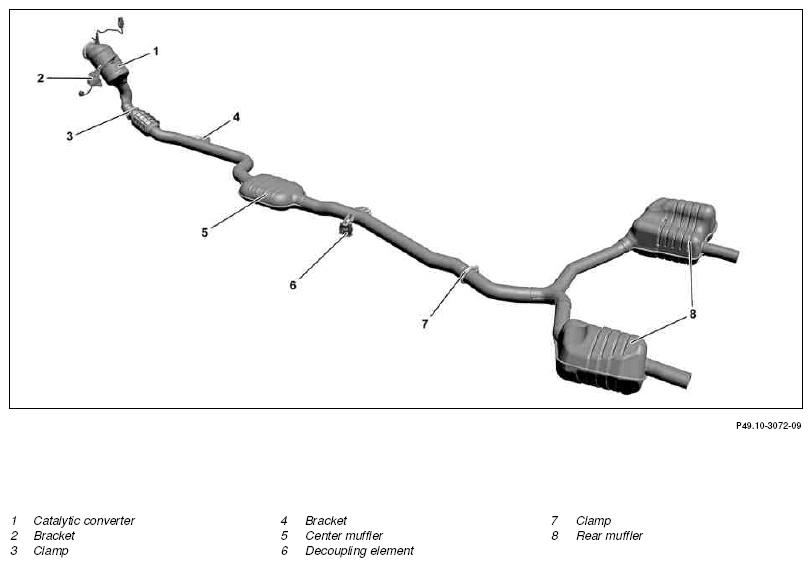

Fig 1: Identifying Exhaust System Remove/Install Components - Shown On Engine 274.9

Courtesy of MERCEDES-BENZ USA

Shown on ENGINE 274.9

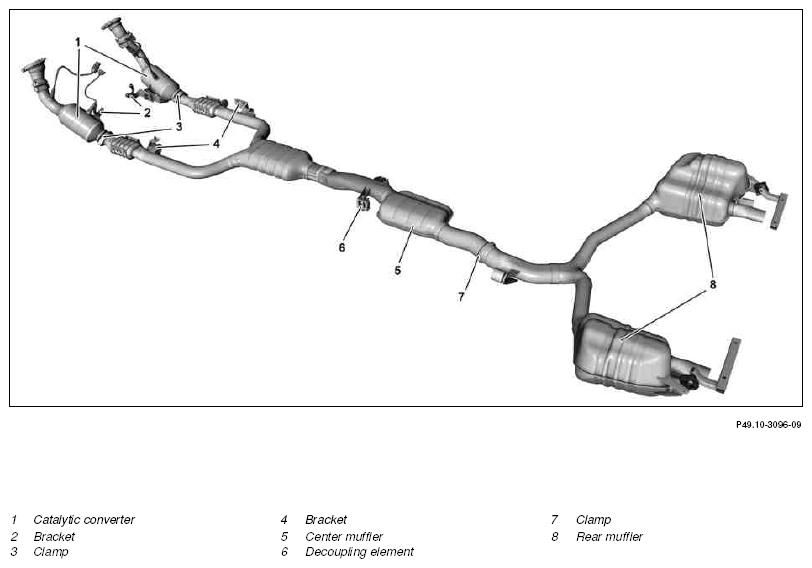

Fig 2: Identifying Exhaust System Remove/Install Components - Shown On Engine 276.8

Courtesy of MERCEDES-BENZ USA

Shown on engine 276.8

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Secure vehicle on vehicle lift		AR00.60-P-0100CW
2	Remove center and rear engine compartment paneling	If necessary
			AR61.20-P-1105LW
3	Remove the left and right underfloor paneling	For removal of the exhaust system up to the rear muffler connecting point
			AR61.30-P-1001LW
4	Detach center reinforcement brace at frame floor assembly	The reinforcement brace remains with the mounting rubber on the exhaust system.
		Screw/bolt, center reinforcement to frame floor assembly	*BA61.10-P-1003-01L
5	Disconnect electrical connection for corresponding oxygen sensor and expose feed line	For removal of the respective CAT
		Left oxygen sensor upstream of catalytic converterEngine 276.8 in model 205	AR07.04-P-0081MMV
		Left oxygen sensor downstream of catalytic converterEngine 276.8 in model 205	AR07.04-P-0082MMV
		Right oxygen sensor upstream of catalytic converter Engine 276.8 in model 205	AR07.04-P-0083MMV
		Right oxygen sensor downstream of catalytic converter Engine 276.8 in model 205	AR07.04-P-0084MMV
		Oxygen sensor upstream and downstream of the CAT Engine 274.9 in model 205	AR07.04-P-0021MRA
6	Unfasten corresponding components of exhaust system at respective connecting points and remove	Align components for the exhaust system before firmly tightening screw connections free of tension.
		Clamp, exhaust line for catalytic converter to turbocharger	*BA49.10-P-1001-02A
		Nut, catalytic converter to catalytic converter bracket	*BA49.10-P-1002-02A
		Engine 274 in model 205Nut, bracket for catalytic converter to crankcase bracket	*BA49.10-P-1003-02A
		Engine 274 in model 205Bolt, bracket for crankcase to crankcase	*BA49.10-P-1004-02A
		Clamp, front exhaust system to catalytic converter	*BA49.10-P-1005-02A
		Engine 274 in model 205Bolt, bracket to center exhaust system	*BA49.10-P-1006-02A
		Nut, bracket for front exhaust system with elastomer bearing to body bracket	*BA49.10-P-1007-02A
		Bolt, bracket for body to body	*BA49.10-P-1008-02A
		Bolt, suspension to rear reinforcement	*BA49.10-P-1009-02A
		Bolt, bracket for front exhaust system to rear axle carrier	*BA49.10-P-1010-02A
		Clamp, rear exhaust system to front exhaust system	*BA49.10-P-1011-02A
		Bolt, rear exhaust system bracket to body	*BA49.10-P-1012-02A
	Clean
7	Remove combustion and corrosion residue at separating points
8	Check decoupling element (6) for damage and wear; replace if necessary
9	Install in the reverse order
	Check
10	Check installation position and unobstructed movement of all components of the exhaust system
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
11	Perform an engine test run and check exhaust system for leaktightness
