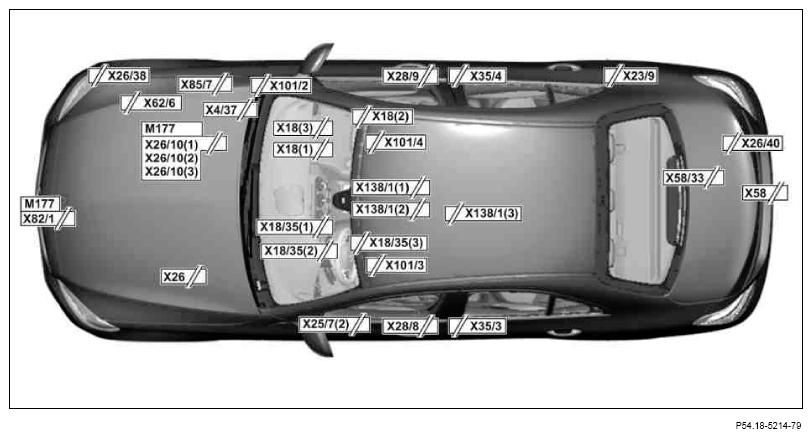

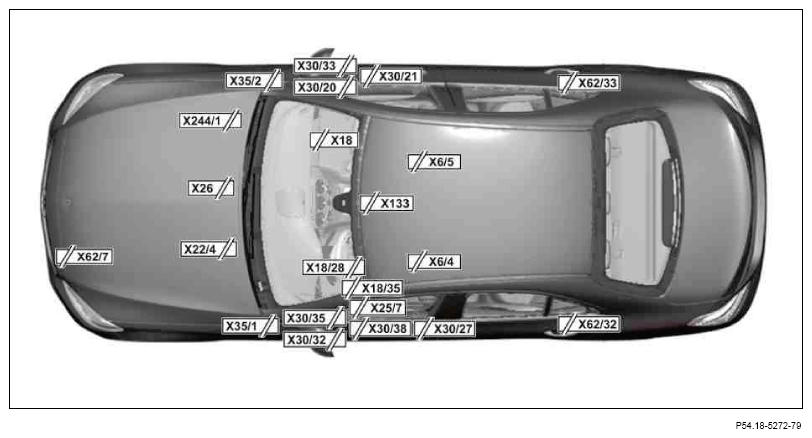

Location and assignment of line and plug connectors - GF00.19-P-1000FBA
Model 205, 253
| X1/44 | Taxi peripheral device electrical connector | Assignment | PE54.21-P-2105FBA |
| Location | |||
| X1/45 | Two-way radio speaker electrical connector | Assignment | PE54.18-P-2300FBH |
| Location | |||
| X1/47 | Two-way radio main switch connecting point | Assignment | PE54.21-P-2105FBB |
| Location | |||
| X4/37 | Terminal block (circuit 30) | Assignment | PE54.18-P-2300FBI |
| Location | GF00.19-P-1001-02FBA | ||
| X4/4 | Terminal block (circuit 30) | Assignment | PE15.00-P-2101FBA |
| Assignment | PE15.00-P-2101FBB | ||
| Location | |||
| X4/36 | Vehicle socket electrical connector | Assignment | PE54.21-P-2105FBB |
| Location | |||
| X6/4 | Driver footwell lamp electrical connector | Assignment | PE54.18-P-2300FBA |
| Location | GF00.19-P-1001-04FBA | ||
| X6/5 | Front passenger footwell lamp electrical connector | Assignment | PE54.18-P-2300FBA |
| Location | GF00.19-P-1001-05FBA | ||
| X7 | Front flashing light connecting point | Assignment | PE82.25-P-2200FBA |
| Location | |||
| X8/4 | Trunk lid/liftgate electrical connector | Assignment | PE54.18-P-2300FBI |
| Location | |||
| X11/4 | Diagnostic connector | Assignment | PE54.22-P-2000FBA |
| Location | GF00.19-P-1001-04FBA | ||
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | Assignment | PE54.18-P-2300FBB |
| Assignment | PE54.18-P-2300FBF | ||
| Location | GF00.19-P-1001-05FBA | ||
| X18/13 | Speaker connecting point | Assignment | PE54.21-P-2105FBB |
| Location | |||
| X18/15 | German Association of the Automotive Industry connecting point | Assignment | PE54.21-P-2105FBB |
| Location | |||
| X18/28 | Left cockpit/engine compartment electrical connector | Assignment | PE54.18-P-2300FBF |
| Location | GF00.19-P-1001-04FBA | ||
| X18/3 | Vehicle interior/fuel tank electrical connector | Assignment | PE47.40-P-2101FBA |
| Location | |||
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | Assignment | PE54.18-P-2300FBC |
| Location | GF00.19-P-1001-04FBA | ||
| X22/4 | Transmission/frame floor assembly connecting point | Assignment | PE54.10-P-2106FBA |
| Location | |||
| X23/3 | Soft top/vehicle interior electrical connector | Assignment | PE54.21-P-2110FBA |
| Location | |||
| X23/9 | Rear shelf electrical connector | Assignment | PE82.62-P-2101FBA |
| Location | GF00.19-P-1001-05FBA | ||
| X25/4 | Fuel tank electrical connector | Assignment | PE07.08-P-2101FBJ |
| Location | |||
| X25/7 | Engine compartment/frame floor assembly electrical connector | Assignment | PE54.18-P-2300FBE |
| Location | GF00.19-P-1001-04FBA | ||
| X26 | Interior and engine wiring harness electrical connector | Assignment | PE54.18-P-2300FBK |
| Location | GF00.19-P-1001-01FBA | ||
| X26/10 | Vehicle interior/engine electrical connector | Assignment | PE54.18-P-2300FBJ |
| Location | GF00.19-P-1001-02FBA | ||
| X26/38 | Front bumper and frame wiring harness electrical connector | Assignment | PE54.18-P-2300FBG |
| Location | GF00.19-P-1001-38FBA | ||
| X26/40 | Rear frame floor assembly/bumper electrical connector | Assignment | PE54.18-P-2300FBG |
| Location | GF00.19-P-1001-07FBA | ||
| X28/29 | Driver airbag electrical connector | Assignment | PE54.18-P-2300FBG |
| Location | |||
| X28/30 | Front passenger airbag electrical connector | Assignment | PE54.18-P-2300FBG |
| Location | |||
| X28/8 | Left emergency tensioning retractor electrical connector | Assignment | PE91.60-P-2106FBA |
| Location | GF00.19-P-1001-04FBA | ||
| X28/9 | Right emergency tensioning retractor electrical connector | Assignment | PE91.60-P-2106FBA |
| Location | |||
| X29/1 | Glove compartment electrical connector | Assignment | PE54.15-P-2101FBA |
| Assignment | PE83.40-P-2101FBA | ||
| Location | |||
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | Assignment | PE00.19-P-2145FBA |
| Location | GF00.19-P-1001-05FBA | ||
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | Assignment | PE00.19-P-2170FBA |
| Location | GF00.19-P-1001-05FBA | ||
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | Assignment | PE00.19-P-2135FBA |
| Location | GF00.19-P-1001-04FBA | ||
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | Assignment | PE00.19-P-2185FBA |
| Location | GF00.19-P-1001-04FBA | ||
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | Assignment | PE00.19-P-2185FBB |
| Location | GF00.19-P-1001-05FBA | ||
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | Assignment | PE00.19-P-2180FBA |
| Location | GF00.19-P-1001-04FBA | ||
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | Assignment | PE00.19-P-2170FBB |
| Location | GF00.19-P-1001-04FBA | ||
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | Assignment | PE00.19-P-2130FBA |
| Location | |||
| X30/72 | AMG CAN potential distributor electrical connector | Assignment | PE00.19-P-2191FBA |
| Location | |||
| X35/1 | Left front door electrical connector | Assignment | PE54.18-P-2300FBH |
| Location | GF00.19-P-1001-04FBA | ||
| X35/2 | Right front door electrical connector | Assignment | PE54.18-P-2300FBH |
| Location | GF00.19-P-1001-05FBA | ||
| X35/3 | Left rear door electrical connector | Assignment | PE54.18-P-2300FBH |
| Location | GF00.19-P-1001-04FBA | ||
| X35/4 | Right rear door electrical connector | Assignment | PE54.18-P-2300FBH |
| Location | GF00.19-P-1001-05FBA | ||
| X38 | Speaker intermediate connector | Assignment | PE54.21-P-2105FBB |
| Location | |||
| X39/17 | Glove compartment event data recorder button connecting point | Assignment | PE54.21-P-2105FBB |
| Location | |||
| X39/18 | Event data recorder switch connecting point | Assignment | PE54.21-P-2105FBB |
| Location | |||
| X40/1 | Roof sign lamp intermediate connector | Assignment | PE54.18-P-2300FBE |
| Location | |||
| X40/2 | International roof sign electrical connector | Assignment | PE54.18-P-2300FBE |
| Location | |||
| X41 | Roof light bar separation point | Assignment | PE54.15-P-2121FBA |
| Location | |||
| X41/1 | Blue light separation point | Assignment | PE82.25-P-2200FBA |
| Location | |||
| X41/2 | Roof light bar separation point | Assignment | PE54.15-P-2121FBA |
| X41/2 | Roof light bar separation point | Assignment | PE54.21-P-2105FBB |
| X41/2 | Roof light bar separation point | Assignment | PE54.21-P-2105FBC |
| Location | |||
| X41/4 | Police beacon separation point | Assignment | PE82.25-P-2200FBA |
| Location | |||
| X44/12 | Two-way radio connecting point 1 | Assignment | PE54.21-P-2105FBB |
| Location | |||
| X54/23 | Left rear seat sitting surface heater pad electrical connector | Assignment | PE91.30-P-2101FBA |
| Location | |||
| X54/24 | Right rear seat sitting surface heater pad electrical connector | Assignment | PE91.30-P-2101FBA |
| Location | |||
| X54/39 | Left rear backrest heater pad electrical connector | Assignment | PE91.30-P-2101FBA |
| Location | |||
| X54/40 | Right rear backrest heater pad electrical connector | Assignment | PE91.30-P-2101FBA |
| Location | |||
| X55/15 | Left seat separation point | Assignment | PE54.15-P-2103FBB |
| Location | |||
| X55/16 | Right seat separation point | Assignment | PE54.15-P-2103FBB |
| Location | |||
| X58 | Trailer socket | Assignment | PE31.19-P-2101FBA |
| Location | GF00.19-P-1001-20FBA | ||
| X58/1 | Vehicle interior power outlet | Assignment | PE54.15-P-2103FBB |
| Location | |||
| X58/11 | Trailer socket (7-pin) | Assignment | PE31.19-P-2101FBA |
| Location | |||
| X58/12 | Luggage compartment socket | Assignment | PE54.15-P-2103FBB |
| Location | |||
| X58/18 | Right rear center console 12V socket | Assignment | PE54.15-P-2103FBB |
| Location | |||
| X58/23 | Charger feed-in socket | Assignment | PE54.10-P-2003FBA |
| Location | |||
| X58/23m1 | Power unlocking actuator motor | Assignment | PE54.10-P-2003FBA |
| Assignment | PE54.10-P-2003FBB | ||
| Location | |||
| X58/3 | Microphone separation point | Assignment | PE82.25-P-2200FBA |
| Location | |||
| X58/28 | Electric Brake Control electrical connector | Assignment | PE31.19-P-2101FBA |
| Location | |||
| X58/33 | Vehicle interior/trailer hitch electrical connector | Assignment | PE31.19-P-2101FBA |
| Location | GF00.19-P-1001-07FBA | ||
| X58/34 | 115 V socket | Assignment | PE54.10-P-2103FBB |
| Location | |||
| X58/44 | 230V socket | Assignment | PE54.10-P-2103FBA |
| Location | |||
| X58/45 | 230V socket connecting point | Assignment | PE54.10-P-2103FBA |
| Location | |||
| X58/7 | Socket (2-pin) (12V) | Assignment | PE54.21-P-2105FBB |
| Location | |||
| X62/9 | Left rear damper module spring valves electrical connector | Assignment | PE32.32-P-2101FBA |
| Location | |||
| X62/10 | Right rear damper module spring valves electrical connector | Assignment | PE32.32-P-2101FBA |
| Location | |||
| X62/25 | Differential lock electrical connector | Assignment | PE27.19-P-2107FBA |
| Location | |||
| X62/32 | Rear axle electrical connector, left distributor | Assignment | PE54.18-P-2300FBI |
| Location | GF00.19-P-1001-04FBA | ||
| X62/33 | Rear axle electrical connector, right distributor | Assignment | PE54.18-P-2300FBI |
| Location | GF00.19-P-1001-05FBA | ||
| X62/45 | Front axle electrical connector, left distributor | Assignment | PE32.32-P-2101FBA |
| Location | |||
| X62/46 | Front axle electrical connector, right distributor | Assignment | PE32.32-P-2101FBA |
| Location | |||
| X62/6 | Front axle electrical connector, right distributor | Assignment | PE54.18-P-2300FBI |
| Location | GF00.19-P-1001-02FBA | ||
| X62/7 | Front axle electrical connector, left distributor | Assignment | PE54.18-P-2300FBI |
| Location | GF00.19-P-1001-01FBA | ||
| X77/1 | Left rear backrest release actuator electrical connector | Assignment | PE54.21-P-2103FBA |
| Location | |||
| X77/2 | Right rear backrest release actuator electrical connector | Assignment | PE54.21-P-2103FBA |
| Location | |||
| X82/1 | Engine wiring harness electrical intermediate connector | Assignment | PE07.08-P-2101FBD |
| Location | GF00.19-P-1001-01FBA | ||
| X86 | Exhaust flap electrical connector | Assignment | PE07.08-P-2101FBC |
| Location | |||
| X91/1 | Tachograph electrical connector | Assignment | PE54.21-P-2105FBB |
| Location | |||
| X99 | Tablet PC electrical connector | Assignment | PE54.15-P-2103FBB |
| Location | |||
| X101/2 | Right front frame floor assembly/underfloor electrical connector | Assignment | PE14.40-P-2101FBA |
| Location | GF00.19-P-1001-24FBA | ||
| X101/3 | Left rear frame floor assembly/underfloor electrical connector | Assignment | PE54.18-P-2300FBA |
| Location | GF00.19-P-1001-24FBA | ||
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | Assignment | PE54.18-P-2300FBA |
| Location | GF00.19-P-1001-24FBA | ||
| X133 | Roof/vehicle interior electrical connector | Assignment | PE54.65-P-2101FBA |
| Location | GF00.19-P-1001-05FBA | ||
| X138/1 | Front center console electrical connector | Assignment | PE54.18-P-2300FBA |
| Location | GF00.19-P-1001-28FBA | ||
| X138/7 | Rear center air vent air outlet temperature sensor electrical connector | Assignment | PE83.40-P-2101FBB |
| Assignment | PE54.18-P-2300FBA | ||
| Location | |||
| X183 | Pyrotechnical separator electrical connector | Assignment | PE08.00-P-2000FBA |
| Location | |||
| X187 | Engine run-on feature connecting point | Assignment | PE54.21-P-2105FBB |
| Location | |||
| X214 | Glow plug electrical connector | Assignment | PE15.00-P-2101FBA |
| Location | |||
| X217/1 | Battery management system electrical connector | Assignment | PE54.10-P-2104FBA |
| Location | |||
| X217/2 | Plug-in battery management system connecting point | Assignment | PE54.10-P-2003FBA |
| Location | |||
| X223 | Vacuum pump electrical connector | Assignment | PE42.47-P-2000FBA |
| Assignment | PE54.15-P-2106FBA | ||
| Location | |||
| X237/1 | Mobile phone contact plate | Assignment | PE82.70-P-2000FBA |
| Location | GF00.19-P-1001-28FBA | ||
| X237/1x1 | Mobile phone contact plate electrical connector 1 | Assignment | PE82.70-P-2000FBA |
| Location | |||
| X237/1x2 | Mobile phone contact plate electrical connector 2 | Assignment | PE82.70-P-2000FBA |
| Location | |||
| X244/1 | Firewall through-hole plating electrical connector | Assignment | PE54.18-P-2300FBD |
| Location | GF00.19-P-1001-02FBA | ||
| X244/2 | Right vehicle-end busbar stud 1 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/3 | Left engine-end busbar stud 1 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/4 | Right engine-end busbar stud 1 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/5 | Left vehicle-end busbar stud 2 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/6 | Right vehicle-end busbar stud 2 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/7 | Left engine-end busbar stud 2 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/8 | Right engine-end busbar stud 2 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/9 | Left vehicle-end busbar stud 4 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/10 | Right vehicle-end busbar stud 4 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/11 | Left engine-end busbar stud 4 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/12 | Right engine-end busbar stud 4 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/13 | Left vehicle-end busbar stud 3 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/14 | Right vehicle-end busbar stud 3 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/15 | Left engine-end busbar stud 3 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/16 | Right engine-end busbar stud 3 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/18 | Right vehicle-end busbar stud 5 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X244/20 | Right engine-end busbar stud 5 | Assignment | PE54.18-P-2300FBD |
| Location | |||
| X250 | Multipurpose module CAN connecting point (equipment carrier plate) | Assignment | PE54.21-P-2105FBB |
| Location | |||
| X250/1 | Multipurpose module CAN connecting point (HSK) | Assignment | PE54.21-P-2105FBB |
| Location | |||
| X999 | High-voltage power distributor | Assignment | PE08.00-P-2000FBC |
| Location | |||
| Location of line connections and connectors, engine compartment, left | Model 205, 253 | GF00.19-P-1001-01FBA | |
| Location of line connections and connectors, engine compartment, right | Model 205, 253 | GF00.19-P-1001-02FBA | |
| Location of line connections and connectors, interior compartment, left | Model 205, 253 | GF00.19-P-1001-04FBA | |
| Location of line connections and connectors, interior compartment, right | Model 205, 253 | GF00.19-P-1001-05FBA | |
| Location of line connections and connectors, trunk, right | Model 205, 253 | GF00.19-P-1001-07FBA | |
| Location of line and plug connections - rear bumper | Model 205, 253 | GF00.19-P-1001-20FBA | |
| Location of lines and plug connectors - underfloor | Model 205, 253 | GF00.19-P-1001-24FBA | |
| Location of line and plug connections - center console | Model 205, 253 | GF00.19-P-1001-28FBA | |
| Location of line and plug connectors - front bumper | Model 205, 253 | GF00.19-P-1001-38FBA |
