Location of line and plug connections - center console - GF00.19-P-1001-28FBA

MODEL 205, 253

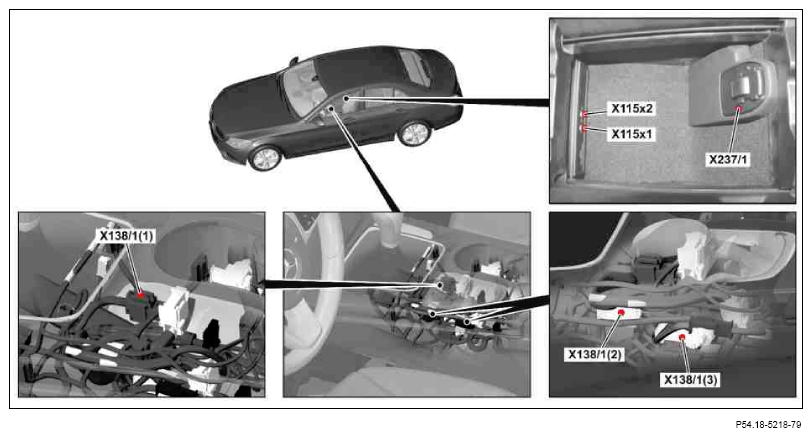

Fig 1: Line And Plug Connections Location - Center Console
G10132138Courtesy of MERCEDES-BENZ USA
