Location of line connections and connectors, engine compartment, right - GF00.19-P-1001-02FBA

MODEL 205, 253

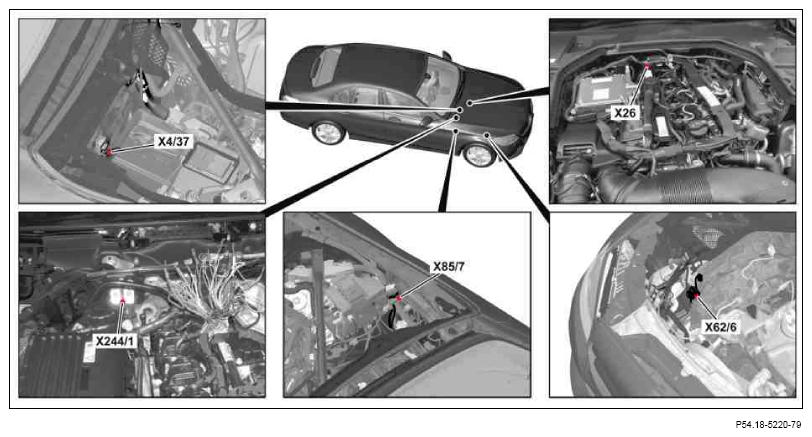

Fig 1: Line Connections And Connectors Location - Right Engine Compartment (1 Of 2)
G10132129Courtesy of MERCEDES-BENZ USA

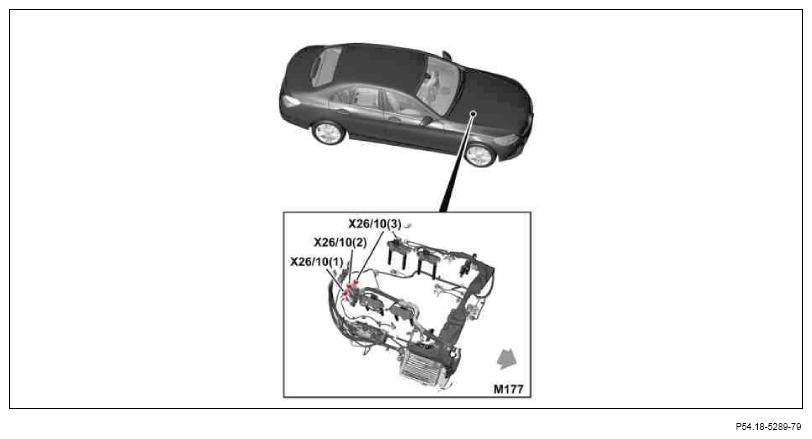

Fig 2: Line Connections And Connectors Location - Right Engine Compartment (2 Of 2)
G10132130Courtesy of MERCEDES-BENZ USA
