Remove/install front floor covering (right) - AR68.20-P-2070LW

Model 205

Model 253

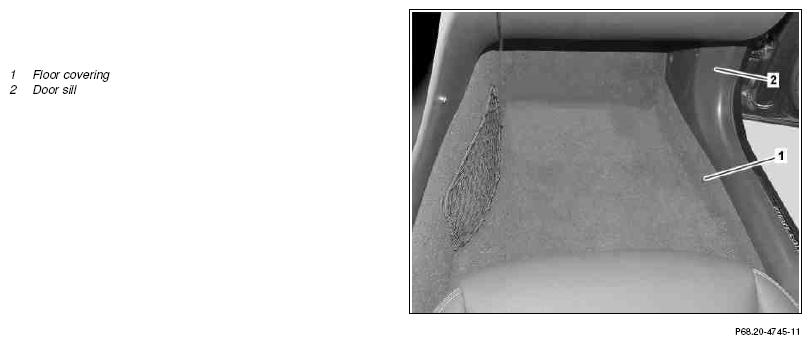

Fig 1: Identifying Front Floor Covering (Right) Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move the right front seat completely to the rear	Model 205
2	Release right front seat and tilt backwards	Model 253
			AR91.10-P-1000LW
		Do not disconnect electrical connectors.
3	Remove cover below right dashboard	Model 253
			AR68.10-P-1520LW
4	Remove door sill molding (2)	Model 205.0/1/2 Model 253	AR68.30-P-4100LW
5	Remove floor covering (1) from front to rear	Removal:  Use assembly wedge in center console area. Position floor covering (1) below center console.
		Mounting wedge	Figure
6	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
