Remove/install door sill molding - AR68.30-P-4100LW

Model 205.0/1/2

Model 253

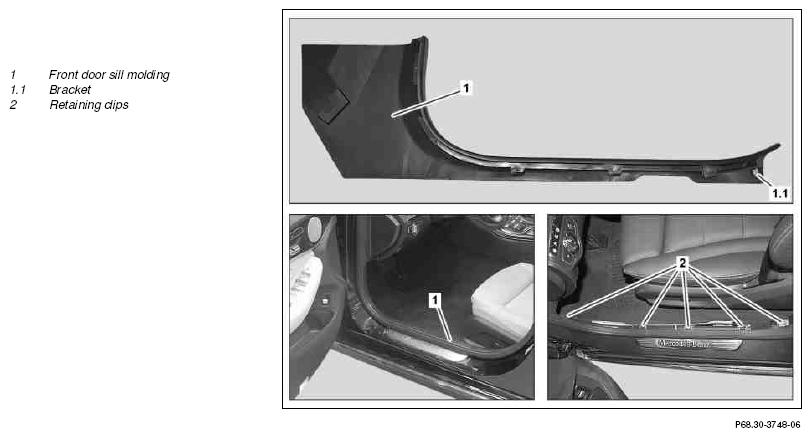

Fig 1: Identifying Door Sill Molding Remove/Install Components

Courtesy of MERCEDES-BENZ USA

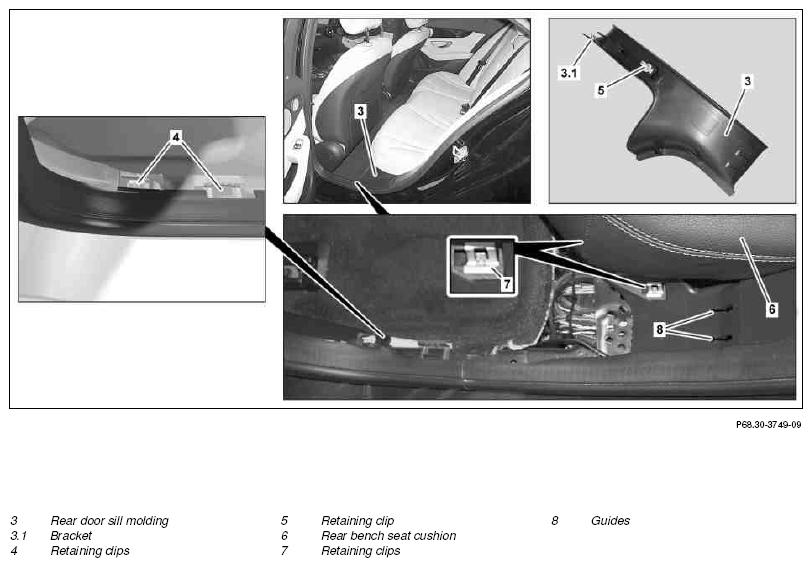

Fig 2: Identifying Door Sill Molding Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

	Remove/install
1	Unhook bracket (1.1) from front door sill (1) at bottom of B-pillar paneling	Only when removing front door sill (1).
2	Detach front door sill (1) starting at B-pillar paneling from retaining clips (2) and remove	Only when removing front door sill (1).
3	Unhook bracket (3.1) from rear door sill (3) at bottom of B-pillar paneling	Only when removing rear door sill (3).
4	Detach rear door sill (3) from retaining clips (4)	Only when removing rear door sill (3).
		Mounting wedge	Figure
5	Unclip rear door sill (3) from retaining clip (5)	Only when removing rear door sill (3). Replace damaged retaining clip (5).
		Clip remover	Figure
6	Lift rear bench seat cushion (6) at side	Only when removing rear door sill (3).
7	Detach rear door sill (3) below rear bench seat cushion (6) from retaining clips (7)	Only when removing rear door sill (3).
		Mounting wedge	Figure
8	Move rear door sill (3) upward out of guides (8) and remove	Only when removing rear door sill (3).
9	Install in the reverse order
