Remove/install rear floor covering - AR68.20-P-4800LW

MODEL 205.0/1/2

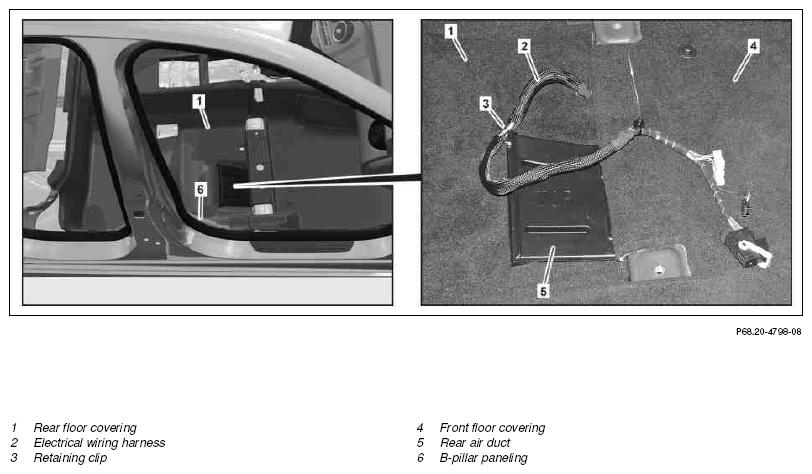

Fig 1: Identifying Rear Floor Covering Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.0 on right side of vehicle

	Remove/install
1	Remove front and rear door sill moldings		AR68.30-P-4100LW
2	Remove both front seats		AR91.10-P-1000LW
3	Remove center console	MODEL 205.0/1/2 with TRANSMISSION 722, 724, 725	AR68.20-P-2000LW
		MODEL 205.0/2 with TRANSMISSION 716	AR68.20-P-2000LWA
4	Remove seat cushion in the rear	MODEL 205.0/1/2 without CODE 248 (Rear seat with integrated child seat) without CODE P10 (Taxi package Germany)	AR91.12-P-1020LW
		MODEL 205.0/1/2 with CODE 248 (Rear seat with integrated child seat) MODEL 205.0/2 with CODE P10 (Taxi package Germany)	AR91.12-P-1020LWA
5	Remove rear floor covering (1) below left and right B-pillar paneling (6)	Position floor covering (1) with assembly wedge below left and right B-pillar paneling (6).
		Mounting wedge	Figure
6	Unclip left and right electrical wiring harness (2) from retaining clip (3)	Clip remover	Figure
7	Guide left and right electrical wiring harness (2) through rear floor covering (1) and remove rear floor covering (1)	Position rear floor covering (1) below left and right rear air duct (5) and below left and right front floor covering (4).
8	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
