Remove/Install Viscous Fan Clutch - Ar20.40-D-5660WE
Engine 651.955/956/957 in model 906
MODIFICATION NOTES
| 20.11.2015 | Drain off about 3 liters of coolant at cooler drain valve, added. | Operation step 3 |
| 20.11.2015 | Remove coolant hose (11), added. | Operation step 4 |
| 20.11.2015 | Perform an engine test run and check engine for leaktightness in the area around the coolant hose (11), added. | Operation step 12 |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Remove/install | |||
| 1 | Remove engine cover | AR01.10-D-2405WE | |

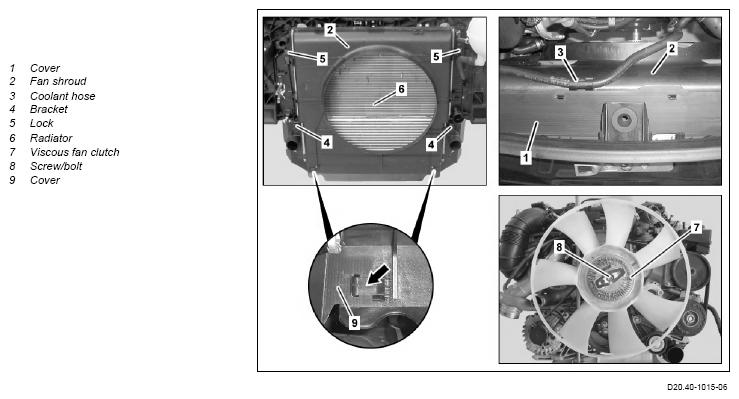

| 2 | Unclip and remove cover (1) on the fan cowl (2) | ||
| 3 | Drain off about 3 liters of coolant at cooler drain valve | AR20.00-D-1140SD | |

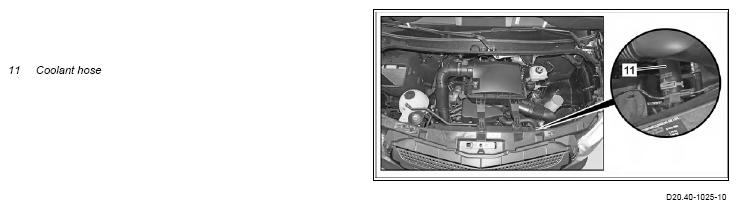

| 4 | Remove coolant hose (11) | Figure | |
| 5 | Unclip coolant hose (3) on fan shroud (2) and place to one side | ||
| 6 | Remove cover (9) on both sides to the fan shroud (2) (arrow) | ||
| 7 | Loosen locks (5), remove fan shroud (2) upwards out of the brackets (4) and place to the rear | ||
| 8 | Cover cooler (6) in the area of the viscous fan clutch (7) with a guard plate | ||
| Guard plate for radiator/condenser | WF58.50-S-0110-01S | ||
| 9 | Place counterholder on the belt pulley of the water pump and unscrew screw/bolt (8) | *BA20.40-N-1002-01N | |
Engine 651.955/956/957 in model 906 with code MJ8 (ECO start/stop function) Counterholder |
Fig 1 | ||
| Fig 3 | |||
| 10 | Remove viscous fan clutch (7) with fan cowl (2) upwards | ||
| 11 | Install in the reverse order | ||
| Check | |||
| 12 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform an engine test run and check engine for leaktightness in the area of the coolant hose (11) |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
FAN, FAN CLUTCH
| Number | Designation | Engine 651 in model 906 | |
|---|---|---|---|
| BA20.40-N-1002-01N | Viscous fan clutch to coolant pump | Nm | 45 |
