Remove/Install Oil Feed Line For Turbocharger - Ar09.40-D-6022WE
ENGINES 651.955/957 in MODEL 906
| Remove/install | - | - | |
| - | Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A |
| 1 | Remove engine trim panel | - | AR01.10-D-2405WE |
| 2 | Remove air intake pipe | - | AR09.10-D-8131WE |

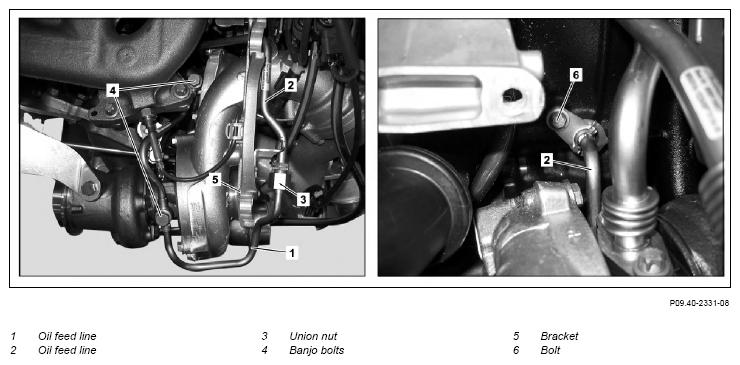

| 3 | Unscrew union nut (3) for oil feed line (1) | *BA09.40-N-1007-01R | |
| 4 | Unscrew banjo (4) and remove oil feed line (1 | *BA09.40-N-1004-01R | |
| 5 | Remove oil feed line (2) on bracket (5) | - | - |
| 6 | Remove alternator | - | AR15.40-D-5032WE |
| 7 | Remove bolt (6) and pull out oil feed line (2) from cylinder crankcase | - | |
| 8 | Install in the reverse order | - | - |
| 9 |
Check engine oil level, correct if necessary Low SPAsh multigrade service engine oils (specification 228.51) Multigrade service engine oil Low SPAsh |
Sheet 228.51 Sheet 229.31 |
BB00.40-P-0228-51A BB00.40-P-0229-31A |
| 10 | Risk of accident
caused by vehicle starting off by itself when engine is running. Risk of injury
caused by contusions and burns during starting procedure or when working near the engine as it is running Perform an engine test run, stop engine and check in area of oil feed lines (1, 2) for leaks |
Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
TURBOCHARGER
| Number | Designation | Engine 651 in model 906 | |
|---|---|---|---|
| BA09.40-N-1004-01R | Banjo bolt, lubricating oil line to turbocharger | Nm | 18 |
| BA09.40-N-1007-01R | Lubricating oil lines connection | Nm | 22 |
