Adjust Gap - Ar43.40-D-1400C

MODEL 906 with CODE (PB2) Mastercode retarder VMC

G10887671

Courtesy of MERCEDES-BENZ USA

	Adjust
1	Measure gap width and note down		AR43.40-D-1500C
2	Remove retarder rotor to be adjusted		AR43.40-D-1600C

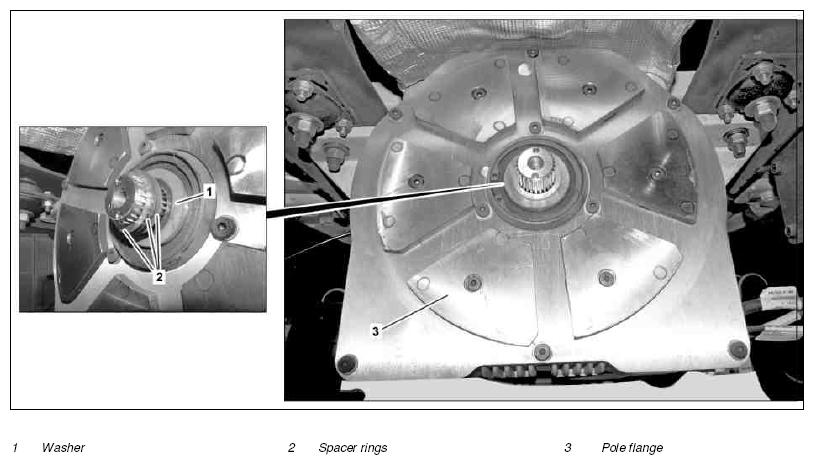

3	Set the gap width by removing or adding spacer washers (2)	Washer (1) must be inserted first in direction of pole flange (3).
4	Install retarder rotor	Do not install drive shaft yet.	AR43.40-D-1600C
5	Measure gap width	Repeat procedure if necessary	AR43.40-D-1500C
6	Install drive shafts	Install new nuts.
			*BA41.10-N-1013-01B
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A

PROPELLER SHAFT

Number	Designation				Model 906 without code ZG1/ZG2/ZG3/ZG4
BA41.10-N-1013-01B	Nut, drive shaft to retarder	M10X1	Stage 1	Nm	15
BA41.10-N-1013-01B	Nut, drive shaft to retarder	M10X1	Stage 2	∠°	90
