Remove/Install TELMA Retarder Rotor - Ar43.40-D-1600C

MODEL 906 with CODE (PB2) Mastercode retarder VMC

Courtesy of MERCEDES-BENZ USA

	Remove/install

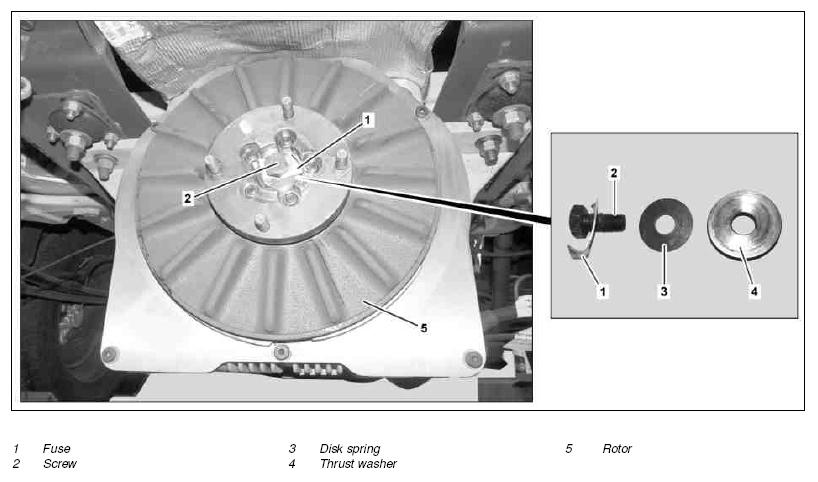

1	Lift/jack up vehicle		AR00.60-D-1000H
2	Detach corresponding drive shaft of rotor (5) to be set on retarder and fix in place using cable ties	Mark installation position of front propeller shaft relative to rear drive shaft and retarder. The universal joints of the drive shafts must not be offset to each other, but rather they must be synchronously installed. Install new nuts.
			*BA41.10-N-1013-01B
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
3	Bend up retainer (1)	Secure bolt (2) with retainer (1).
4	Remove bolt (2) and retainer (1)	Install new retainer (1).
			*BA43.40-N-1008-01C
5	Remove disk spring (3) and pressure plate (4)
6	Remove rotor (5) from rotor shaft	Mark installation position of rotor (5) relative to rotor (5) on opposite side. Observe identification of rotor (5) relative to rotor (5) on opposite side.
7	Install in the reverse order
8	Adjust gap		AR43.40-D-1400C

PROPELLER SHAFT

Number	Designation				Model 906 without code ZG1/ZG2/ZG3/ZG4
BA41.10-N-1013-01B	Nut, drive shaft to retarder	M10X1	Stage 1	Nm	15
			Stage 2	∠°	90

RETARDER

Number	Designation			Model 906 with code PB2
BA43.40-N-1008-01C	Bolt, rotor to rotor shaft	M12X1.5	Nm	50
