Remove/Install Brake Fluid Reservoir - Ar42.10-D-0301H

MODEL 906

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A

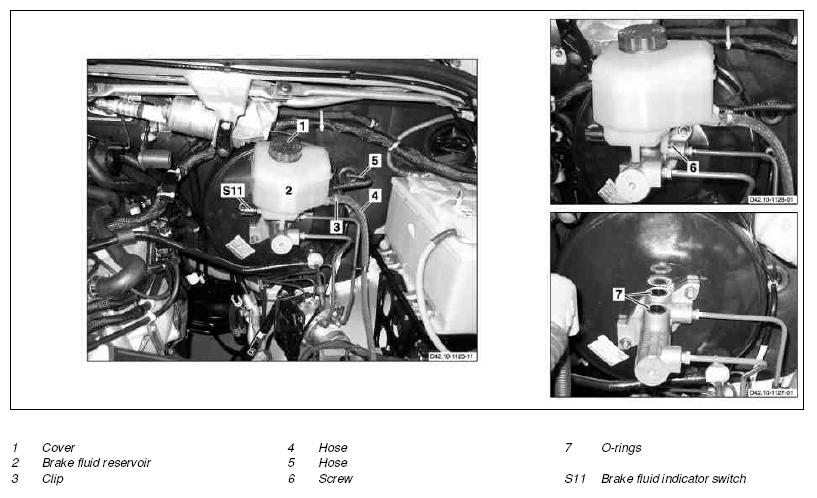

1	Unscrew cover (1) of brake fluid reservoir (2)
2	Suction off brake fluid from the brake fluid expansion reservoir (2)
3	Open clamp (3)	Replace clamp (3).
4	Detach hose (4)	Remove any remaining brake fluid that escapes with a rag.
5	Detach hose (5)	Remove any remaining brake fluid that escapes with a rag. Insert sealing grommet in hose (5).
6	Unplug connector from brake fluid indicator switch (S11)
7	Remove bolt (6)		*BA42.10-N-1002-05A
8	Detach brake fluid reservoir (2)	install new O-rings (7). Otherwise brake system leakage may occur.
9	Install in the reverse order
10	Correct fluid level in brake fluid reservoir (2)		AP42.50-D-4210H
11	Check brake system for leaks		AR42.10-S-0100-01S

MASTER BRAKE CYLINDER

Number	Designation		Model 906
BA42.10-N-1002-05A	Bolt, reservoir to master brake cylinder	Nm	7
