Hydraulic Brake System - Check Fluid Level, Correct If Necessary - AP42.50-D-4210H

MODEL 906

Courtesy of MERCEDES-BENZ USA

	Check
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A

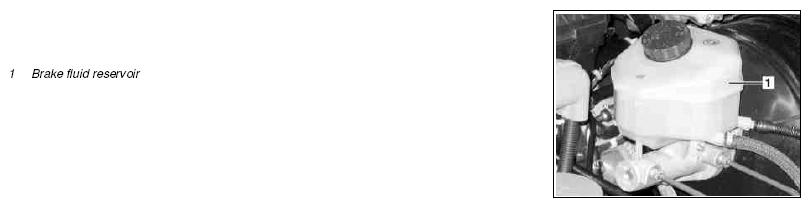

1	Check brake fluid level in brake fluid reservoir (1)	The brake fluid reservoir (1) is correctly filled when the brake fluid level lies between the "MAX" mark and the "MIN" mark. In the event of a brake fluid level which has dropped due to brake lining wear only refill with brake fluid if the brake fluid level is below the "MIN" mark. Brake fluid level has dropped to below the "MIN" mark: ↓
			AP00.20-D-0051H
		Check all brake lines and hoses for condition and leaktightness.
		Check brake fluid reservoir for leaktightness and condition.	AP00.20-D-0052H
2	Correct fluid level
	Brake fluids (DOT 4 plus)		BB00.40-P-0331-00A
