Remove/Install Seat Belt With Emergency TENSIONING Retractor - Ar91.40-D-0630B

MODEL 906

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Assessment of airbag and belt tensioner units in accident vehicles		AH91.00-N-0006-01B
	Notes on performing repair, body work and welding on vehicles with airbags and RTE units		AH91.00-P-0002-01B
	Legal requirements on handling and storing airbags and emergency tensioning retractor units		AH91.00-P-0004-01A
	Remove
1	Remove ignition key from ignition lock

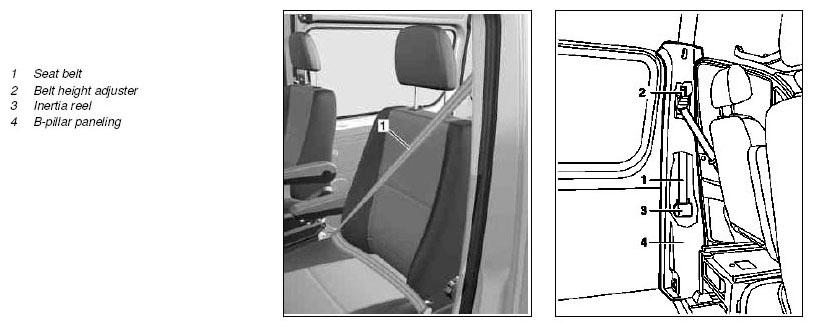

2	Remove seat belt (1) from seat	MODEL 906 without CODE ZO1 (Camper James Cook Compact) without CODE ZO2 (Camper James Cook Classic)	AR91.40-D-1030-01A
3	Remove B-pillar trim (4)	MODEL 906	AR68.30-D-4700A
4	Remove seat belt (1) at belt height adjuster (2)		AR91.40-D-1015-01A
	Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
5	Remove automatic belt retractor (3) at B-pillar		AR91.40-D-1015-02A
5	Remove automatic belt retractor (3) at B-pillar	Pay attention to proper and environmentally friendly disposal when exchanging an inertia reel (3) with emergency tensioning retractor.
	Check
6	Check belt height adjuster (2) for proper operation and replace if necessary	Belt height adjuster (2) must be replaced: ↓ Remove/install belt height adjuster from B-pillar
6			AR91.40-D-1105A
	Install
7	Mount automatic belt retractor (3) to B-pillar		AR91.40-D-1015-02A
7	Mount automatic belt retractor (3) to B-pillar	Inertia reel on B-pillar	*BA91.40-N-1003-01B
8	Attach seat belt (1) to belt height adjuster (2)		AR91.40-D-1015-01A
8	Attach seat belt (1) to belt height adjuster (2)	Screw/bolt on upper guide point	*BA91.40-N-1002-01B
9	Install B-pillar cover (4)	MODEL 906	AR68.30-D-4700A
10	Mount seat belt (1) to seat	MODEL 906 without CODE ZO1 (Camper James Cook Compact) without CODE ZO2 (Camper James Cook Classic)
			AR91.40-D-1030-01A
		Screw/bolt, belt end fitting to seat	*BA91.40-N-1008-01B
	Check
11	Check seat belt (1) for proper operation	The seat belt (1) must be able to be pulled out easily and must automatically roll up again when released. When tugged on abruptly, the automatic belt retractor (3) must lock up.
12	Connect diagnostic system and perform quick test
			AD00.00-D-2000-04SD
13	Read out fault memory of supplemental restraint system (SRS) and delete fault memory
14	Disconnect diagnostic system
