Remove/Install Automatic Belt Retractor On B-Pillar - Ar91.40-D-1015-02A
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number |
Designation |
Model 906 without code ZO1, ZO2 |
Model 906 with code ZO1, ZO2 |
| BA91.40-N-1003-01B |
Reel on B-pillar |
Nm |
37 |
37 |

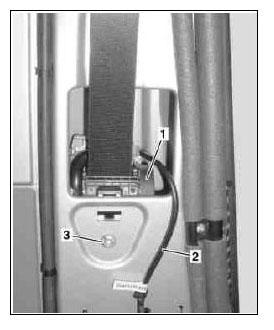

- Detach plug of emergency tensioning retractor connection line (2) from automatic belt retractor (1).
- Remove screw/bolt (3) and remove automatic belt retractor (1) from B-pillar.
Observe specified tightening torque.
- Install in the reverse order.
 Courtesy of MERCEDES-BENZ USA
|
