Remove/Install Seat Belt Height Adjustment On B-Pillar - Ar91.40-D-1105A
MODEL 906
| Remove/install | |||
| 1 | Remove paneling on B-pillar | AR68.30-D-4700A | |
| 2 | Remove seat belt from seat belt height adjustment (2) | AR91.40-D-1015-01A | |
| *BA91.40-N-1002-01B | |||

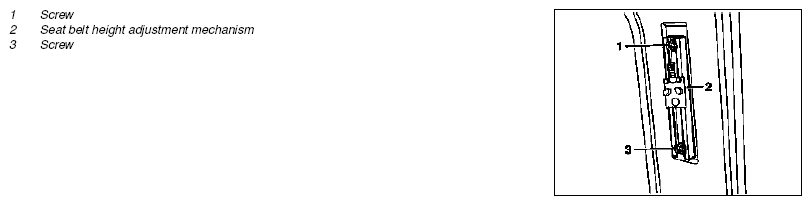

| 3 | Remove bolts (1, 3) and remove seat belt height adjustment (2) from B-pillar | *BA91.40-N-1004-01B | |
| *BA91.40-N-1005-01B | |||
| 4 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 906 without code ZO1, ZO2 | Model 906 with code ZO1, ZO2 | |
|---|---|---|---|---|
| BA91.40-N-1002-01B | Bolt on upper guide point | Nm | 37 | 37 |
| BA91.40-N-1004-01B | Upper bolt, seat belt height adjuster to B-pillar | Nm | 37 | 37 |
| BA91.40-N-1005-01B | Lower bolt, seat belt height adjuster to B-pillar | Nm | 25 | 25 |
