Remove/Install Combination Switch - Ar54.25-D-2800H

MODEL 906

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Legal requirements on handling and storing airbags and emergency tensioning retractor units		AH91.00-P-0004-01A
1	Remove clock spring contact with steering angle sensor		AR46.10-D-0200H
2	Remove pushbutton switch with variable speed limiter cruise control (TPM)	For code (MS1) Cruise control	AR54.25-D-2803H

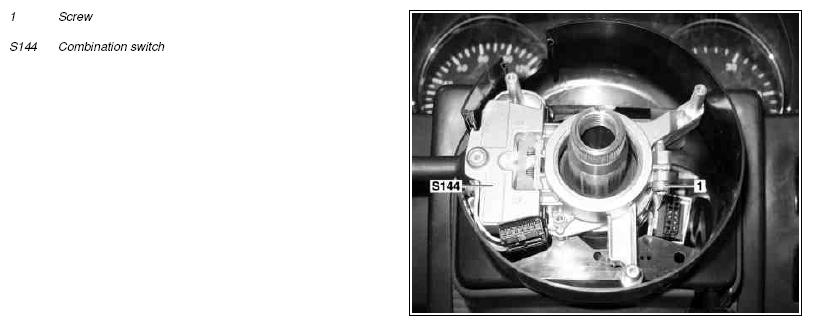

3	Remove bolt (1)	Bolt (1) is accessible from below through the lower steering column trim.
4	Detach combination switch (S144)	The electrical connectors are automatically disconnected when detached. Pay attention to correct installed position.
5	Install in the reverse order
6	Carry out function check
