Remove/Install Cruise Control Switch - Ar54.25-D-2803H
MODEL 906 with CODE (MS1) Cruise control
| Remove/install | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||

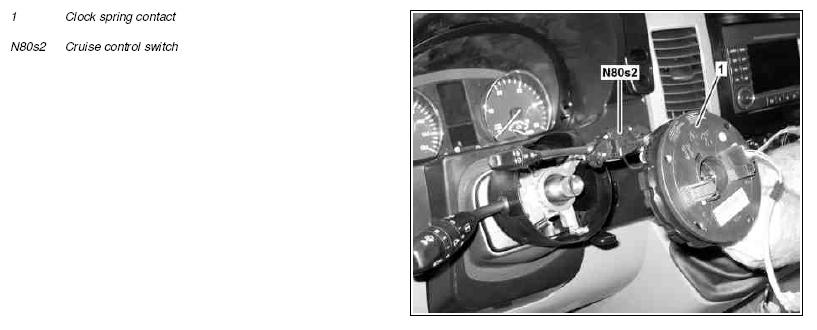

| 1 | Remove clock spring contact (1) with steering angle sensor | AR46.10-D-0200H | |
| 2 | Detach cruise control switch (N80s2) | ||
| 3 | Install in the reverse order | ||
| Check | |||
| 4 | Perform function test on cruise control |
