Remove/install rear axle brake caliper - AR42.10-P-0080NKB

MODEL 117, 156, 176, 242, 246

MODIFICATION NOTES

25.3.14 Brake hose to fixed or floating caliper on front axle   BA42.10-P-1002-04L

Shown on MODEL 246

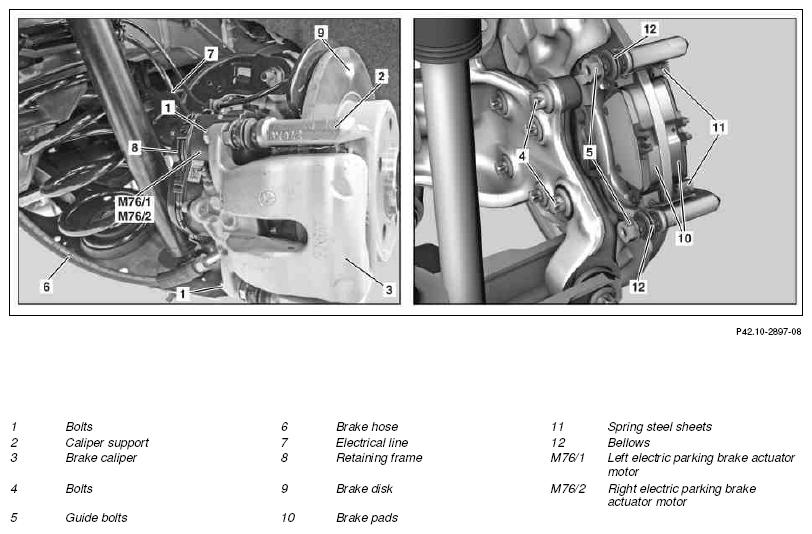

Fig 1: Rear Axle Brake Caliper Remove/Install Components - Shown On Model 246 (1 Of 2)
G10251096Courtesy of MERCEDES-BENZ USA

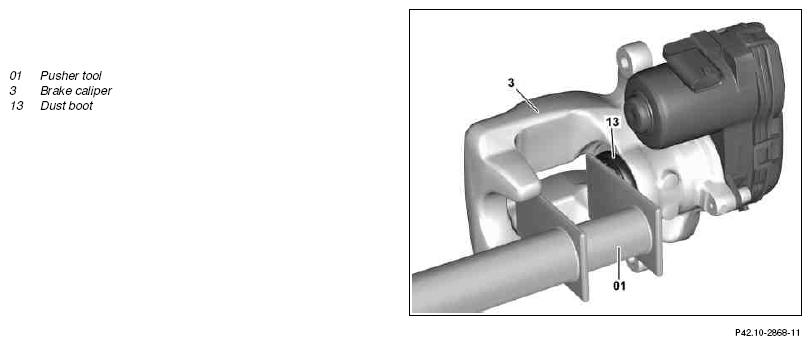

Fig 2: Rear Axle Brake Caliper Remove/Install Components - Shown On Model 246 (2 Of 2)
G10251097Courtesy of MERCEDES-BENZ USA
DANGER Risk of injury  due to fan starting unexpectedly Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. AS20.40-Z-0001-01A
DANGER Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
DANGER Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES Brake fluid notes   AH42.50-P-0001-01A
NOTES Notes on repairs to brake system   AH42.00-P-0003-01A
REMOVINGINSTALLING Remove/install
1 Move brake pads on rear axle to assembly position   AR42.10-P-1700-02W
NOTES Do not depress the service brake during "Move to assembly position". Otherwise, the spindle in the brake caliper (3) gets damaged.
INSTALLATION IMPORTANT Leave assembly position.
2 Switch off ignition and remove transmitter key from electronic ignition lock control unit IMPORTANT In order to prevent unintended movement away from the assembly position.
3 Clean area around cap on expansion reservoir for brake fluid
4 Unscrew the cap on the brake fluid expansion reservoir and suction off some brake fluid IMPORTANT In order to prevent the expansion reservoir overflowing when pressing back the brake pistons.
5 Remove rear wheels
REFER TO MAINTENANCE AP40.10-P-4050AK
6 Unclip electrical line of rpm sensor from retaining frame (8) When replacing the brake caliper (3).
7 Remove brake hose (6) and seal with a suitable stop plug When replacing the brake caliper (3).
AP40.10-P-4050AK
NOTES Seal connections immediately.
Otherwise brake fluid flowing out can cause damage to adjoining components.
IMPORTANT The brake caliper (3) must not run empty. Otherwise the brake caliper (3) must be replaced. AR42.10-P-0013NKB
TORQUE SPECIFICATION Retaining screw, brake line to brake hose *BA42.10-P-1001-04L
TORQUE SPECIFICATION Brake hose to fixed or floating caliper on front axle *BA42.10-P-1002-04L
SPECIAL TOOL Record plug Figure
8 Remove screws/bolts (1) from guide pin (5) IMPORTANT Counterhold guide pin (5).
TORQUE SPECIFICATION Guide pin to brake caliper support *BA42.10-P-1004-12J
9 Remove brake caliper (3) from brake caliper support (2) NOTES Do not tension or kink brake hose (6). Attach brake caliper (3) to the vehicle free of tension to relieve the brake hose (6) and the electrical line (7).
Otherwise the brake hose (6) and the electrical line (7) can be damaged.
10 Press back brake piston using pusher tool (01) IMPORTANT If brake piston is sluggish, replace brake caliper (3).
SPECIAL TOOL Resetting device Figure
11 Remove left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2) from brake caliper (3) When replacing the brake caliper (3).
AR42.20-P-0600NKB
12 Remove brake pads (10) from brake caliper (2). When removing the brake caliper support support (2)
INSTALLATION IMPORTANT Only complete sets of brake pads (10) approved by Mercedes-Benz may be installed.
INSTALLATION IMPORTANT Do not apply brake pastes or lubricants to the brake pads (10) and brake calipers (3).
13 Remove spring plates (11) from brake caliper support (2) When removing/replacing the brake caliper support (2).
14 Unscrew screws/bolts (4) and remove brake support (2). When replacing the brake caliper, caliper support (2)
TORQUE SPECIFICATION Screw/bolt, brake caliper to hub/rotor assembly *BA42.10-P-1001-12J
MEASURING Measure
15 Check condition of brake pads (10) and gauge degree of wear IMPORTANT Replace brake pads (10) if necessary.
16 Check condition of brake disk (9) and gauge degree of wear   AR42.10-P-0220NKB
IMPORTANT Replace the brake disk (9) if necessary.
17 Check brake caliper (3) and dust boot (13) on brake piston for damage IMPORTANT If damaged, replace brake caliper (3).
18 Check boots (12) for damage and correct seating and check guide pin (5) for ease of movement IMPORTANT Replace brake caliper support (2) if damaged.
CLEAN Clean
19 Clean contact surfaces of the brake pads (10) on brake caliper (3) and brake caliper support (2) using a rag NOTES In the process do not damage the dust boot (13) on the brake piston. Do not use sharp-edged or pointed implements to clean. Otherwise, the brake caliper (3) or brake caliper support (2) get damaged.
Assembly cleaner *BR00.45-Z-1028-04A
20 Convert retaining frame (8) When replacing the brake caliper (3).
21 Install in the reverse order
DANGER Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. AS42.50-Z-0002-01A
22 Depress brake pedal several times until brake pads (10) rest against brake disks (9) IMPORTANT Firm resistance should be noticeable at the brake pedal.
23 Check fluid level in brake fluid reservoir, and correct if necessary
REFER TO CAPACITIES & SPECIFICATIONS General brake fluid DOT 4. See GENERAL BRAKE FLUID (https://bevo.mercedes-benz.com/index.php?language_id=1)
REFER TO CAPACITIES & SPECIFICATIONS Brake fluids (DOT 4 plus) MB 331.0 brake fluid A 000 989 08 07
24 Carry out brake test on the test stand
REFER TO MAINTENANCE AP42.00-P-4290BA
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 117 MODEL 156
BA42.10-P-1001-04L Retaining screw, brake line to brake hose Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 176 MODEL 242
BA42.10-P-1001-04L Retaining screw, brake line to brake hose Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 246
BA42.10-P-1001-04L Retaining screw, brake line to brake hose Nm 16
REAR AXLE BRAKE CALIPER

Number Designation MODEL 117 MODEL 156
BA42.10-P-1001-12J Screw/bolt, brake caliper to hub/rotor assembly Nm 130 130
REAR AXLE BRAKE CALIPER

Number Designation MODEL 176, 246 MODEL 242
BA42.10-P-1001-12J Screw/bolt, brake caliper to hub/rotor assembly Nm 130 130
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 117 MODEL 156
BA42.10-P-1002-04L Brake hose to fixed or floating caliper on front axle Nm 24 24
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 176 MODEL 242
BA42.10-P-1002-04L Brake hose to fixed or floating caliper on front axle Nm 24 24
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 246
BA42.10-P-1002-04L Brake hose to fixed or floating caliper on front axle Nm 24
REAR AXLE BRAKE CALIPER

Number Designation MODEL 117 MODEL 156
BA42.10-P-1004-12J Guide pin to brake caliper support Nm 35 35
REAR AXLE BRAKE CALIPER

Number Designation MODEL 176, 246 MODEL 242
BA42.10-P-1004-12J Guide pin to brake caliper support Nm 35 35
Fig 3: Identifying Resetting Device (000 589 52 43 00)
G10238876Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Record Plug (129 589 00 91 00)
G09975019Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner Adolf Wurth GmbH & Co. KG
