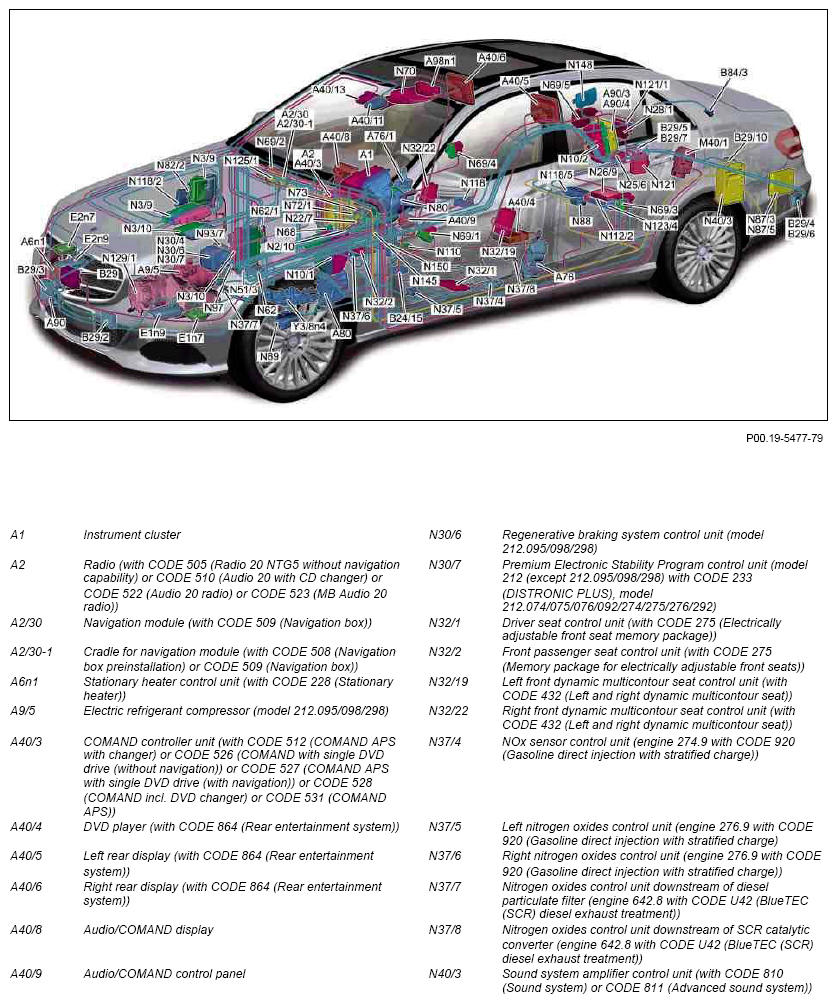

Overview of system components for overall network (GVN) - GF00.19-P-9997FLM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014
| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Component description for the radio | MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 510 (Audio 20 with CD changer) MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 523 (MB Audio 20 radio) A2 |
GF82.60-P-3122FLA | |
| MODEL 212 as of 3/2/15 as of model year 2016 with CODE 505 (Radio 20 NTG5, not navigation-enabled) MODEL 212 as of 3/2/15 as of model year 2016 with CODE 522 (Audio 20 radio) A2 |
GF82.60-P-3122FLM | ||
| Cradle for navigation module, component description | MODEL 212 as of model year 2014 with CODE 508 (Navigation box preinstallation) with CODE 509 (Navigation box) A2/30-1 |
GF82.85-P-3137FL | |
| Stationary heater control unit, component description | MODEL 212 as of model year 2014 with CODE 228 (Auxiliary heater) A6n1 |
GF83.70-P-4066FL | |
| Component description for electric refrigerant compressor | MODEL 212.095/098/298 as of model year 2014 A9/5 | GF83.55-P-2110FLH | |
| Component description for COMAND controller unit | MODEL 212 as of 9/1/14 up to 3/1/15 as of model year 2015 up to model year 2016 with CODE 526 (COMAND with single DVD drive (without navigation)) MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 512 (COMAND APS with DVD changer) MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 212 up to 8/31/14 as of model year 2014 up to model year 2015 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136FLB | |
| MODEL 212 as of 3/2/15 as of model year 2016 with CODE 531 (COMAND APS) A40/3 |
GF82.85-P-3136FLM | ||
| Component description for rear entertainment DVD player | MODEL 212 as of model year 2014 with CODE 864 (Rear entertainment system) A40/4 |
GF82.90-P-4009FL | |
| Component description for rear display left/right | MODEL 212 as of model year 2014 with CODE 864 (Rear entertainment system) A40/5, A40/6 |
GF82.90-P-4020FL | |
| Component description for Audio/COMAND display | MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 without CODE 867 (SPLITVIEW) A40/8 |
GF54.30-P-6150FL | |
| MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 867 (SPLITVIEW) A40/8 |
GF54.30-P-6150FLM | ||
| MODEL 212 as of 3/2/15 as of model year 2016 A40/8 |
GF54.30-P-6150FLN | ||
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501FLA | |
| Component description for multifunction camera | MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) MODEL 212 as of model year 2014 with CODE 476 (Lane keeping assist) MODEL 212 as of model year 2014 with CODE 513 (Road sign recognition system) MODEL 212 as of model year 2014 with CODE 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+)) A40/11, A40/13 |
GF54.21-P-3300FL | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020FL | |
| Component description for intelligent servo module for DIRECT SELECT | MODEL 212 with TRANSMISSION 722.9 (except 722.930/931) as of model year 2014 A80 |
GF27.19-P-4020AHL | |
| MODEL 212 with TRANSMISSION 722.931 as of model year 2014 A80 |
GF27.19-P-4020AHX | ||
| COLLISION PREVENTION ASSIST controller unit, component description | MODEL 212 as of model year 2014 up to model year 2015 with CODE 258 (Collision Prevention Assist) MODEL 212 as of model year 2015 with CODE 258 (COLLISION PREVENTION ASSIST PLUS) A90 |
GF30.30-P-3214FLM | |
| Digital TV tuner, component description | MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 865 (TV tuner) A90/3 |
GF82.60-P-3118FL | |
| Tuner unit, component description | MODEL 212 as of 3/2/15 as of model year 2016 with CODE 536 (SIRIUS satellite radio) MODEL 212 as of 3/2/15 as of model year 2016 with CODE 537 (Digital radio) MODEL 212 as of 3/2/15 as of model year 2016 with CODE 865 (TV tuner) A90/4 |
GF82.60-P-5015FLM | |
| Component description for panoramic sliding roof control module | MODEL 212 as of model year 2014 with CODE 413 (Panoramic glass roof with top sliding roof) A98n1 |
GF77.20-P-4106FL | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810FL | |
| Long-range radar sensor, component description | MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) B29 |
GF30.30-P-3125FLM | |
| Component description for bumper radar sensors | MODEL 212 as of model year 2014 with CODE 22P (Lane tracking package) MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) B29/2, B29/3, B29/4, B29/5, B29/6, B29/7, B29/10 |
GF30.30-P-3302FLM | |
| Reversing camera component description | MODEL 212 as of model year 2014 with CODE 218 (Rear view camera) B84/3 |
GF54.65-P-5040FLM | |
| Actuation module, LED exterior lighting, front, component description | MODEL 212 as of model year 2014 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) without CODE 641 (Headlamps, LED, dynamic, left-side traffic) without CODE 642 (Headlamps, LED, dynamic, right-side traffic) MODEL 212 as of model year 2014 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) without CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) without CODE 642 (Headlamps, LED, dynamic, right-side traffic) MODEL 212 as of model year 2014 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) without CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) without CODE 641 (Headlamps, LED, dynamic, left-side traffic) E1n7, E2n7 |
GF82.10-P-2160FLM | |
| Headlamp control unit, component description | E1n9, E2n9 | GF82.10-P-2020FLM | |
| Pneumatic pump for dynamic multicontour seat, component description | MODEL 212 as of model year 2014 with CODE 432 (Left and right dynamic multicontour seat) M40/1 |
GF91.25-P-5208FL | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FL | |
| Component description for CDI control unit | MODEL 212 with ENGINE 642.8 as of model year 2014 N3/9 |
GF07.16-P-6000OG | |
| MODEL 212 (except 212.098/298) with ENGINE 651.9 as of model year 2014 N3/9 |
GF07.16-P-6000OM | ||
| MODEL 212.098/298 with ENGINE 651.924 as of model year 2014 N3/9 |
GF07.16-P-6000OLI | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9 as of 9/1/13 as of model year 2014 with CODE 494 (US version) Bosch N3/9 |
GF07.16-P-6000OMD | ||
| Component description for ME-SFI (ME) control unit | MODEL 212 with ENGINE 157.9 as of model year 2014 MODEL 212 with ENGINE 278.9 as of model year 2014 N3/10 |
GF07.61-P-6000MMA | |
| MODEL 212 with ENGINE 271.860 as of model year 2014 N3/10 |
GF07.61-P-6000MG | ||
| MODEL 212 with ENGINE 272.9 (except 272.983) as of model year 2014 N3/10 |
GF07.61-P-6000MI | ||
| MODEL 212 with ENGINE 274.9 as of model year 2014 without CODE 924 (Bivalent natural gas drive) N3/10 | GF07.61-P-6000MRB | ||
| MODEL 212 with ENGINE 274.9 as of model year 2014 with CODE 924 (Bivalent natural gas drive) N3/10 | GF07.61-P-6000MRC | ||
| MODEL 212 (except 212.095) with ENGINE 276.9 as of model year 2014 N3/10 |
GF07.61-P-6000MM | ||
| MODEL 212.095 with ENGINE 276.9 as of model year 2014 N3/10 | GF07.61-P-6000MMO | ||
| MODEL 212 with ENGINE 276.8 as of model year 2014 N3/10 | GF07.61-P-6000MMP | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FL | |
| Component description for automatic air conditioning control and operating unit | MODEL 212 as of model year 2014 without CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLA | |
| MODEL 212 as of model year 2014 with CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLB | ||
| Rear SIH control unit, component description | MODEL 212 as of model year 2014 with CODE 872 (Electrically heated left and right rear seats) N25/6 |
GF91.30-P-5215FL | |
| Special vehicle multifunction control unit (SVMCU (MSS)), component description | MODEL 212 as of model year 2014 with CODE 965 (Electrical preinstallation, rental vehicles) without CODE Z17 (Heated windscreen) without CODE Z22 (Panic alarm system) N26/9 |
GF54.21-P-4010FL | |
| Component description for trailer recognition control unit | MODEL 212 as of model year 2014 with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050FL | |
| Component description for Electronic Stability Program control unit | MODEL 212 (except 212.095/098/298) as of model year 2014 N304, N307 |
GF42.45-P-5119FLM | |
| Component description for regenerative braking system control unit | MODEL 212.095/098/298 as of model year 2014 N30/6 |
GF42.22-P-1100FLM | |
| Component description for driver seat control unit | MODEL 212 as of model year 2014 with CODE 275 (Electrically adjustable front seats memory package) N32/1 |
GF91.29-P-5231FL | |
| Component description for front passenger seat control unit | MODEL 212 as of model year 2014 with CODE 275 (Electrically adjustable front seats memory package) N32/2 |
GF91.29-P-5241FL | |
| Dynamic multicontour seat control unit, component description | MODEL 212 as of model year 2014 with CODE 432 (Left and right dynamic multicontour seat) N32/19, N32/22 |
GF91.25-P-5210FL | |
| Component description for NOx sensor control unit | MODEL 212 with ENGINE 274.9 as of model year 2014 with CODE 920 (Direct petrol injection with stratified charging) N37/4 |
GF14.40-P-3024MRB | |
| Component description for NOx sensor control unit | MODEL 212 (except 212.095) with ENGINE 276.9 as of model year 2014 with CODE 920 (Direct petrol injection with stratified charging) N37/5, N37/6 |
GF14.40-P-3024MM | |
| Component description for nitrogen oxides control unit with NOx sensor | MODEL 212.024/224 with ENGINE 642.850 as of model year 2014 with CODE U42 (BlueTEC diesel exhaust treatment (SCR)) N37/7, N37/8 |
GF14.40-P-3023OG | |
| Component description for sound system amplifier control unit | MODEL 212 as of model year 2014 with CODE 810 (Sound system) N40/3 |
GF82.62-P-5010FL | |
| MODEL 212 as of model year 2014 with CODE 811 (Advanced sound system) without CODE 810 (Sound system) N40/3 |
GF82.62-P-5010FLA | ||
| AIRmatic control unit, component description | MODEL 212 as of model year 2014 with CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) MODEL 212 as of model year 2014 with CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) without CODE 488 (Steel/air suspension) N51/3 |
GF32.22-P-5109FLM | |
| Parking system control unit component description | MODEL 212 as of model year 2014 with CODE 235 (Active Park Assist) N62 |
GF54.65-P-5002FLM | |
| Component description for radar sensors control unit | MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301FLM | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010FLM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FL | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FL | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FL | |
| Component description for KEYLESS-GO control unit | MODEL 212 as of model year 2014 with CODE 889 (Keyless Go) N69/5 |
GF80.61-P-4204FL | |
| Component description for overhead control panel control unit | MODEL 212 as of model year 2014 with CODE 414 (Power glass tilting/sliding roof) N70 |
GF82.20-P-5216FL | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FL | |
| Component description for battery management system control unit | MODEL 212.095 with ENGINE 276.952 as of model year 2014 MODEL 212.098/298 with ENGINE 651.924 as of model year 2014 N82/2 |
GF54.10-P-3012FLM | |
| Component description for Digital Audio Broadcasting control unit | MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 537 (Digital radio) N87/3 |
GF82.62-P-5000FL | |
| Satellite digital audio radio (SDAR) control unit, component description | MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 536 (SIRIUS satellite radio) N87/5 |
GF82.85-P-3121FL | |
| Component description for tire pressure monitor control unit | MODEL 212 as of model year 2014 with CODE 475 (Tire pressure monitor (premium)) Schrader N88 |
GF40.15-P-5124FLM | |
| Component description for transmission oil auxiliary pump control unit | MODEL 212 with TRANSMISSION 722.9 (except 722.930/931) as of model year 2014 with CODE B03 (ECO start/stop function) N89 |
GF27.19-P-4030AHL | |
| Component description for chassis gateway control unit | MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010FLM | |
| Rear axle level control system control unit, component description | MODEL 212.2 as of model year 2014 without CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) N97 |
GF32.33-P-3400FLM | |
| Component description for Weight Sensing System (WSS) control unit | MODEL 212 as of model year 2014 with CODE U10 (Front passenger seat with weight sensor) N110 |
GF91.60-P-4069FLU | |
| Telematics services communications module, component description | MODEL 212 as of model year 2014 with CODE 350 (Ecall Europe, gen. 2 emergency call system) MODEL 212 as of model year 2014 with CODE B54 (Live Traffic Information) N112/2 |
GF82.85-P-0220FLM | |
| Component description for fuel pump control unit | MODEL 212 with ENGINE 157.9 as of model year 2014 N118 |
GF47.40-P-2001MMA | |
| MODEL 212 with ENGINE 271.860 as of model year 2014 N118 |
GF47.40-P-2001MG | ||
| MODEL 212 with ENGINE 272.9 (except 272.983) as of model year 2014 MODEL 212 with ENGINE 273.9 as of model year 2014 N118 |
GF47.40-P-2001MI | ||
| MODEL 212 with ENGINE 274.9 as of model year 2014 without CODE 924 (Bivalent natural gas drive) N118 |
GF47.40-P-2001MRB | ||
| MODEL 212 with ENGINE 274.9 as of model year 2014 with CODE 924 (Bivalent natural gas drive) N118 |
GF47.40-P-2001MRC | ||
| MODEL 212 (except 212.095) with ENGINE 276.9 as of model year 2014 MODEL 212 with ENGINE 278.9 as of model year 2014 N118 |
GF47.40-P-2001MM | ||
| MODEL 212.095 with ENGINE 276.9 as of model year 2014 N118 |
GF47.40-P-2001MMO | ||
| MODEL 212 with ENGINE 642.8 as of 9/1/09 as of model year 2014 MODEL 212 with ENGINE 651.9 (except 651.924) as of 9/1/09 as of model year 2014 N118 |
GF47.40-P-2001OM | ||
| MODEL 212.098/298 with ENGINE 651.924 as of model year 2014 N118 |
GF47.40-P-2001OLH | ||
| Component description for CNG control unit | MODEL 212 with ENGINE 274.9 as of model year 2014 with CODE 924 (Bivalent natural gas drive) N118/2 |
GF07.54-P-4000MRC | |
| Component description for exhaust aftertreatment control unit | MODEL 212.024/224 with ENGINE 642.850 as of model year 2014 with CODE U42 (BlueTEC diesel exhaust treatment (SCR)) N118/5 |
GF14.40-P-3030OG | |
| Trunk lid/liftgate control unit, component description | MODEL 212.0/1 as of model year 2014 with CODE 881 (Remote trunk closing (RTC [HDFS])) MODEL 212.2 as of model year 2014 N121, N121/1 |
GF80.20-P-6092FL | |
| Component description for emergency call system control unit | MODEL 212 as of model year 2014 with CODE 348 (Emergency call/assistant system) without CODE 359 (TELE AID emergency call system) N123/4 |
GF82.95-P-3212FLV | |
| Component description for media interface control unit | MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 518 (Media interface) N125/1 |
GF82.60-P-5000FLA | |
| Component description for power electronics control unit | MODEL 212.095 with ENGINE 276.952 as of model year 2014 MODEL 212.098/298 with ENGINE 651.924 as of model year 2014 N129/1 |
GF08.20-P-1001FLM | |
| Component description for transmission mode control unit | MODEL 212 with TRANSMISSION 722.931 as of model year 2014 N145 |
GF27.19-P-1350AHX | |
| Component description for 360 degree viewing system control unit | MODEL 212 as of model year 2014 with CODE 501 (360 degree camera) N148 |
GF54.65-P-5003FLM | |
| DIRECT SELECT interface, component description | MODEL 212 with TRANSMISSION 722.931 as of model year 2014 N150 |
GF27.19-P-1300AHX | |
| Component description for fully integrated transmission control unit | MODEL 212 with TRANSMISSION 722.9 (except 722.930/931) as of model year 2014 Y3/8n4 |
GF27.60-P-5165AHL | |
| MODEL 212 with TRANSMISSION 722.931 as of model year 2014 Y38n4 |
GF27.60-P-5165AHX | ||
| MODEL 212 with TRANSMISSION 724.2 as of model year 2014 Y38n4 |
GF27.60-P-5165AHO | ||
| MODEL 212 with TRANSMISSION 725.0 as of model year 2014 Y38n4 |
GF27.60-P-5165ANA | ||
| Overall network (GVN) function description table of contents | GF00.19-P-0999FLM |
