Component description for NOx sensor control unit - GF14.40-P-3024MRB

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 274.9 in MODEL 207, 212 with CODE 920 (Direct petrol injection with stratified charging)

Exhaust system (shown on model 212)

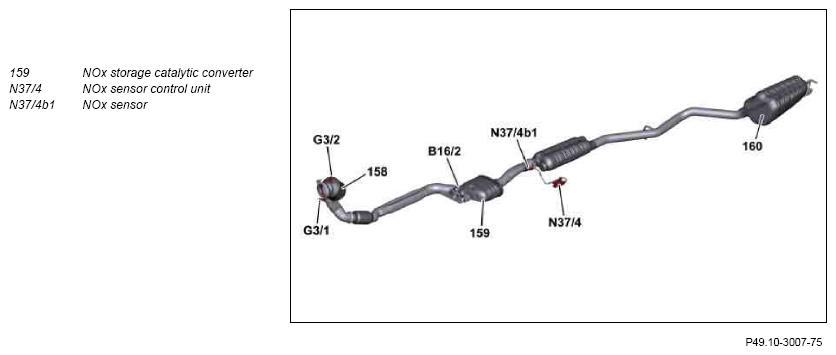

Fig 1: NOx Storage Catalytic Converter And NOx Sensor Control Unit
G10049989Courtesy of MERCEDES-BENZ USA

Location

The NOx sensor is located with the firmly connected NOx sensor control unit downstream of the NOx storage catalytic converter. The NOx sensor is screwed into the exhaust pipe. The NOx sensor control unit it located on the underfloor.

Task

The NOx sensor records downstream of the NOx storage catalytic converter the NOx and O 2 concentration levels in the exhaust and routes this information in the form of voltage signals to the NOx sensor control unit. This processes the information and sends it via the drive train sensor CAN (CAN I) to the ME-SFI [ME] control unit (N3/10).

Input and output signals

The following input signals are evaluated by the NOx sensor control unit and appropriate output signals are emitted:

Direct input signals

CAN input signals from the ME-SFI [ME] control unit

CAN output signals to the ME-SFI [ME] control unit

Body

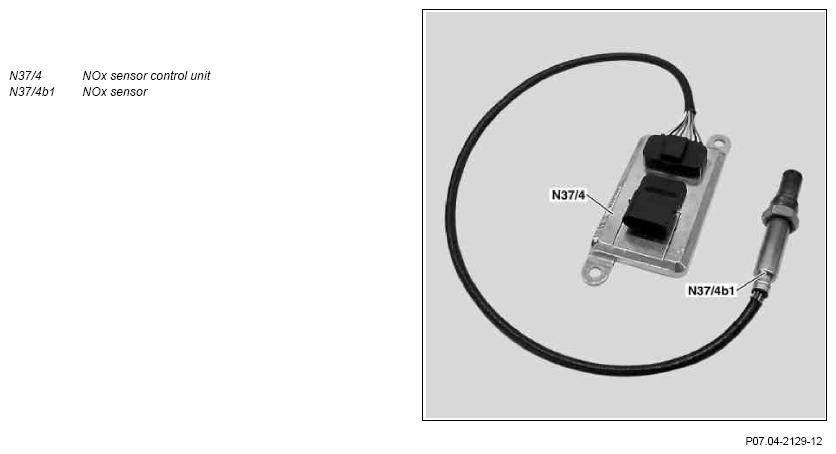

Fig 2: NOx Sensor Control Unit
G10049990Courtesy of MERCEDES-BENZ USA

The NOx sensor (double chamber sensor with evaluation circuit) is inseparably connected via an 8-pin signal line to the NOx sensor control unit.

An integrated sensor heater which is controlled by the NOx sensor control unit ensures rapid operational readiness of the NOx sensor.

Function

The active ceramic probe bodies consist of many layers with two reaction chambers. The oxygen (O 2 ) in the exhaust is detected in the first chamber, as in an oxygen sensor.

To do this, a pump voltage is applied to the electrodes in the first chamber. This causes the O 2 molecules to be broken down into double charged oxygen ions and for them to be pumped out of or into the first contact cavity (depending on whether richer or leaner exhaust gas is present) until a 450 mV voltage difference at the electrodes is reached. The oxygen concentration is calculated from the size of the required pump current "Ip1".

The nitrogen oxide is split at the ground electrode into nitrogen and oxygen in the second chamber if present.

The oxygen is pumped out if the chamber again.

The concentration of the nitrogen oxides in the exhaust is calculated from the resulting pump current "Ip2".

The voltage signals from the NOx sensor are sent to the NOx sensor control unit and processed there. The NOx sensor control unit sends the NOx and O 2 concentration levels over the drive train sensor CAN to the ME-SFI [ME] control unit.

Using this information, the exhaust treatment can be monitored in stratified operation (lean-burn operation) of the engine and thus the NOx storage catalytic converter purging can be controlled.

The NOx sensor also recognizes damage and "sulfur poisoning" of the NOx storage catalytic converter.

A desulfuring process can then be initiated by the ME-SFI [ME] control unit by increasing the temperature of the NOx storage catalytic converter.

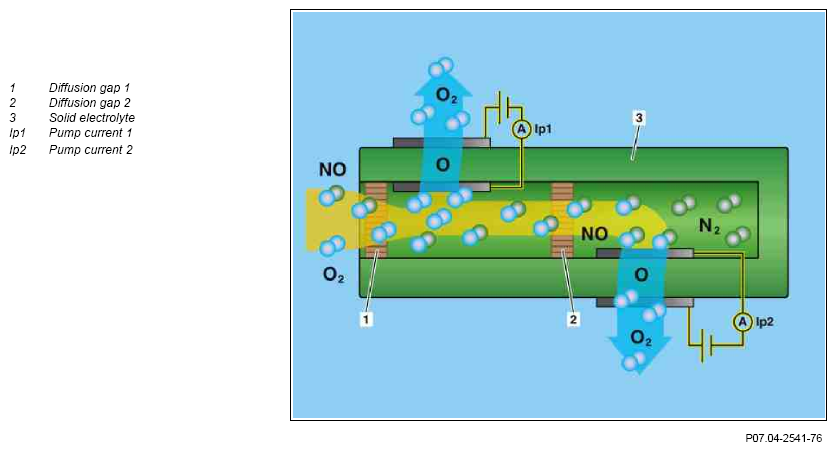

Schematic function diagram of the NOx sensor (double chamber sensors)

Fig 3: NOx Sensor Function Diagram
G10049991Courtesy of MERCEDES-BENZ USA
Designation Unit Values Tolerance range Remarks
NOx sensor control unit (N37/4)
Power supply for control unit       Circuit 87 M2
Power supply to the sensor heater: V 12.0
minimum
Maximum
V 16.5
Power consumption A 2.1
Power consumption W 20   Maximum
Measuring range of the NOx concentration ppm 0 - 500
  Wiring diagram for gasoline-DI control unit N3/10 Body side model 207 PE07.08-P-2101-97EAK
N3/10 vehicle connector model 212 PE07.08-P-2101-97DAN
