Remove/install loudspeaker amplifier control unit - AR82.62-P-7720GS
MODEL 463.243 /245 /246 /248 /249 /323 /333, 463.270 /271 /341 up to 31.8.08 with CODE (E66) Sound system (Harman/Kardon)
| Remove/install | |||
|---|---|---|---|
| 1 | Move the driver seat into the front and upper end position | ||
| 2 | Activate Service mode in Tele-Aid emergency call system | With code ET2 TeleAid car phone emergency call system. | AR82.95-P-0005-03GR |
| Notes regarding the Tele-Aid emergency call system | AH82.95-P-0001-01GA | ||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 3 | Disconnect battery ground cable | Except model 463.248 with code 979 Special protection version | AR54.10-P-0003G |
| Model 463.248 with code 979 Special protection version, with code ZS6 Special protection version FB6, and with code E26 Additional battery 100 Ah incl. cutoff relay. Model 463.248 with code 979 Special protection version, with code ZS7 Special protection version FB7, and with code E26 Additional battery 100 Ah incl. cutoff relay. |
AR54.10-P-0003PM | ||
| Notes on battery | All models | AH54.10-P-0001-01A | |

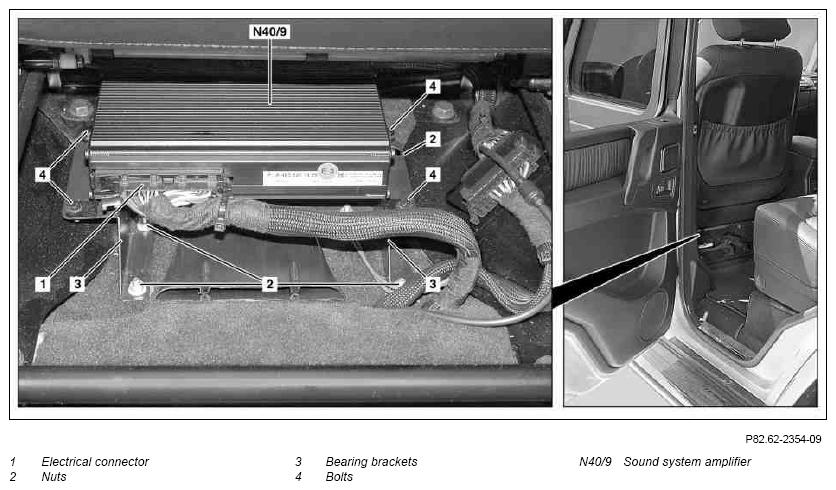

| 4 | Disconnect electrical connector (1) | ||
| 5 | Unscrew nuts (2) | ||
| 6 | Lift out sound system amplifier (N40/9) with mounting consoles (3) | ||
| 7 | Remove sound system amplifier (N40/9) from mounting consoles (3) | ||
| 8 | Install in the reverse order | ||
| 9 | Check sound system amplifier (N40/9) for proper operation | ||
| 10 | Deactivate service mode in TELE AID emergency call system | With code ET2 TeleAid car phone emergency call system. | AR82.95-P-0005-03GR |
| Notes regarding the Tele-Aid emergency call system | AH82.95-P-0001-01GA | ||
| 11 | Read out fault memory and erase | Stored faults which may be caused by removed cables or by a simulation, must be processed and erased in the fault memories after completing the work. |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
