Remove/install console for E-Call emergency call system control unit - AR82.95-P-0014US
MODELS 463.246 /249 /271 with CODE (ET2) TELE AID carphone emergency call system
| Remove/install | |||
|---|---|---|---|

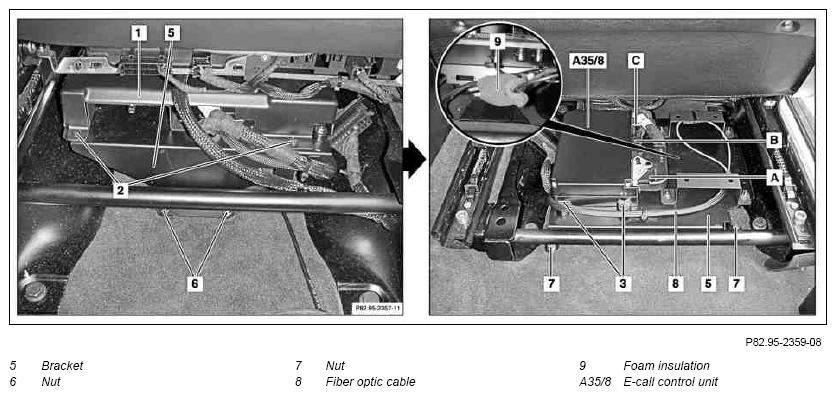

| 1 | Remove control unit for emergency call system | AR82.95-P-0008US | |
| 2 | Unscrew and remove nuts (6) and (7) | ||
| 3 | Release fiber optical cable (8) from console (5) | ||
| 4 | Release foam material insulation (9) from connectors | ||
| 5 | Release connectors beneath console (5) | ||
| 6 | Lead wiring harness through openings in console (5) | ||
| 7 | Remove console (5) | ||
| 8 | Install in the reverse order |
