Remove/install electronic stability program (ESP) control unit - AR42.45-P-0820EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 166, 207, 212, 218

Shown on MODEL 212 up to model year 2014 with CODE 233 (DISTRONIC PLUS)

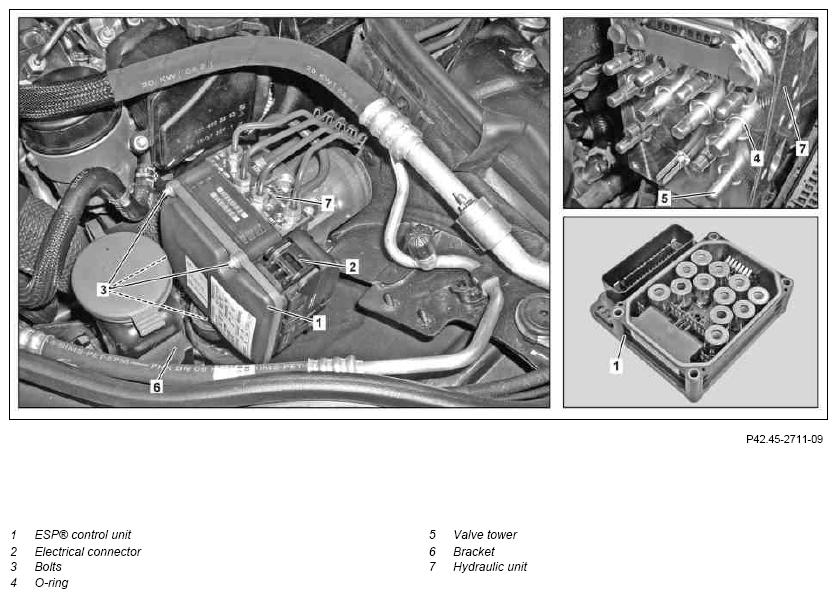

Fig 1: Electronic Stability Program Control Unit Remove/Install Components
G09976594Courtesy of MERCEDES-BENZ USA
DANGER Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
NOTES Notes on repairs to brake system   AH42.00-P-0003-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
NOTES Brake fluid notes   AH42.50-P-0001-01A
REMOVINGINSTALLING Remove/install
1.1 Switch off ignition and remove transmitter key from electronic ignition lock control unit MODEL 166, 207, 212, 218
without CODE 889 (KEYLESS-GO)

1.2 Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit MODEL 166, 207, 212, 218
with CODE 889 (KEYLESS-GO)

2 Open engine hood MODEL 166, 207, 212, 218
MODEL 166 AR88.40-P-1000GQ
MODEL 207, 212 AR88.40-P-1000EW
3 Remove the left engine intake air duct MODEL 207 with ENGINE 272, 273, 642 up to model year 2015
MODEL 212 with ENGINE 156, 272, 273, 642 up to model year 2015
MODEL 218 with ENGINE 157, 642 up to model year 2015

CLEAN Clean
4 Clean the area surrounding the electrical connection (2) for the ESP® control unit (1) NOTES
Clean thoroughly with clean, lint-free rag and assembly cleaner only.
Otherwise, even the smallest particles of dirt introduced into the ESP® control unit (1) can lead to malfunctions and a total failure of the brake system.

Assembly cleaner *BR00.45-Z-1028-04A
5 Disconnect electrical connector (2) MODEL 207, 212, 218
MODEL 207, 212
up to model year 2014
with CODE 233 (DISTRONIC PLUS)
MODEL 218
up to model year 2015
with CODE 233 (DISTRONIC PLUS)
AR42.45-P-0820-02EWD
MODEL 207, 212
as of model year 2014
MODEL 207, 212
up to model year 2014
without CODE 233 (DISTRONIC PLUS)
MODEL 218
as of model year 2015
MODEL 218
up to model year 2015
without CODE 233 (DISTRONIC PLUS)
NOTES
Observe instructions on disconnecting. Otherwise the locking mechanism may be damaged.
NOTES
Do not touch, deform or damage contacts of connector and jack.
Otherwise the function may be impaired.
NOTES
Do not allow any foreign objects, dirt or fluids to enter the jack or connector.
Otherwise, the function of the brake system may be impaired.
AR42.45-P-0820-02EW
SPECIAL TOOL MODEL 207, 212
as of model year 2014
MODEL 207, 212
up to model year 2014
without CODE 233 (DISTRONIC PLUS)
MODEL 218
as of model year 2015
MODEL 218
up to model year 2014
with CODE 233 (DISTRONIC PLUS)
Unlocking tool
Figure
6 Unclip bracket (6) from washer fluid reservoir MODEL 212
up to model year 2015

7 Remove bolts (3) INSTALLATION NOTES
Use exact specified tightening torques only. Too large tightening torques result in damage to the ESP® control unit (1), too small tightening torques result in poor connection in the contact areas.
INSTALLATION IMPORTANT Replace bolts (3).

TORQUE SPECIFICATION
MODEL 166
*BA42.45-P-1005-01J
TORQUE SPECIFICATION
MODEL 207
MODEL 212
MODEL 218
*BA42.45-P-1002-01M
8 Detach ESP® control unit (1) from hydraulic unit (7) NOTES
Do not touch contact areas and sealing silicone on the ESP® control unit (1) by hand or with a tool.
Otherwise, damage and leaks may occur.

9 Disconnect electrical connector (2) MODEL 166
with CODE 233 (DISTRONIC PLUS)
AR42.45-P-0820-02EWD
MODEL 166
without CODE 233 (DISTRONIC PLUS)
NOTES
Observe instructions on disconnecting. Otherwise the locking mechanism may be damaged.
NOTES
Do not touch, deform or damage contacts of connector and jack.
Otherwise the function may be impaired.
NOTES
Do not allow any foreign objects, dirt or fluids to enter the jack or connector.
Otherwise, the function of the brake system may be impaired.
AR42.45-P-0820-02EW
SPECIAL TOOL MODEL 166
without CODE 233 (DISTRONIC PLUS)
Unlocking tool
Figure
10 Remove ESP® control unit (1) from engine compartment
11 Remove O-rings (4) from valve dome (5) by hand NOTES
Do not use tools.
Otherwise, the hydraulic unit (7) will be damaged.

CLEAN Clean
12 Clean sealing surface on hydraulic unit (7) Assembly cleaner *BR00.45-Z-1028-04A
13 Install in the reverse order
14 Calibrate ESP® control unit (1) using diagnostic system When replacing ESP® control unit (1).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
15 Read out and erase fault memory
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
ELECTRONIC STABILITY PROGRAM (ESP)

Number Designation MODEL 207 MODEL 212
BA42.45-P-1002-01M Bolt, ESP control unit to traction system hydraulic unit Nm 5 5
ELECTRONIC STABILITY PROGRAM (ESP)

Number Designation MODEL 218
BA42.45-P-1002-01M Bolt, ESP control unit to traction system hydraulic unit Nm 5
ELECTRONIC STABILITY PROGRAM (ESP)

Number Designation MODEL 166
BA42.45-P-1005-01J Bolt, ESP control unit to traction system hydraulic unit Nm 5
Fig 2: Identifying Unlocking Tool (000 589 20 63 00)
G09976595Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner
