Connect STAR DIAGNOSIS and read out fault memory - AD00.00-P-2000-04A

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117, 124.034/036, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171.4, 172, 176, 197, 199, 202, 203, 204, 207, 208, 209, 210, 211, 212, 215, 216, 218, 219, 220, 221, 230, 231, 240, 242, 245, 246, 251, 292, 414

MODEL 461, 463

Shown on model 210

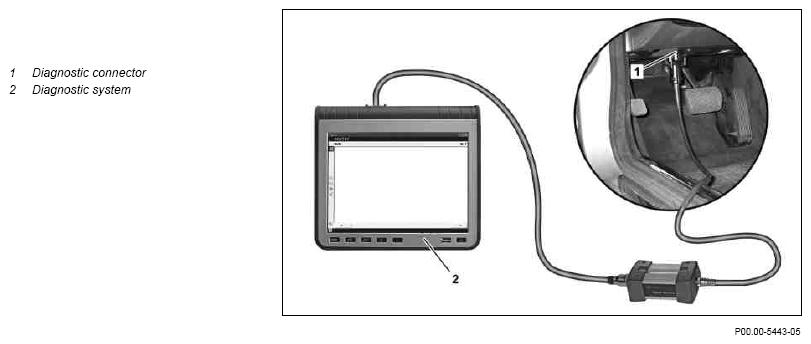

Fig 1: Diagnostic System And Connector - Shown On Model 210

Courtesy of MERCEDES-BENZ USA

Shown on model 204

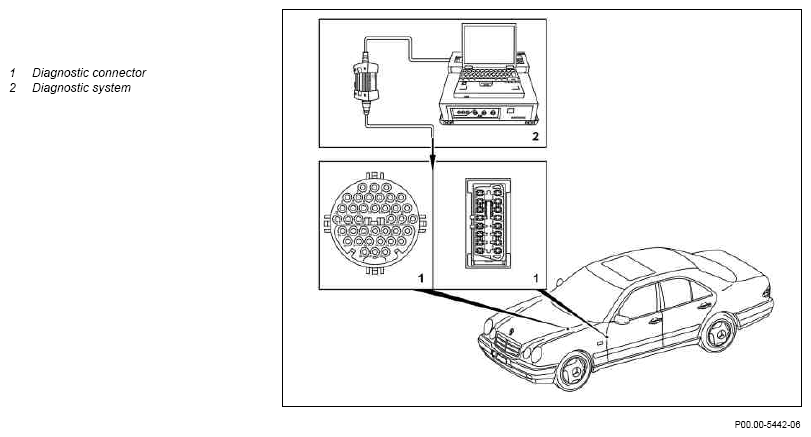

Fig 2: Connecting Diagnostic System To Diagnostic Connector - Shown On Model 204

Courtesy of MERCEDES-BENZ USA

Connect diagnostic system (2) to diagnostic connector (1).
Start diagnosis.
Select the model series in the menu.
Stored faults which may be caused by disconnecting cables or by simulation during testing operations must be deleted in the diagnostic trouble code memory following completion of the operations.

The work procedures in the diagnosis program are menu-assisted.
Disconnect diagnostic system (2).
Following completion of diagnostic operations.
