Overview of system components for climate control - GF83.40-P-9994RF
Model 205, 253

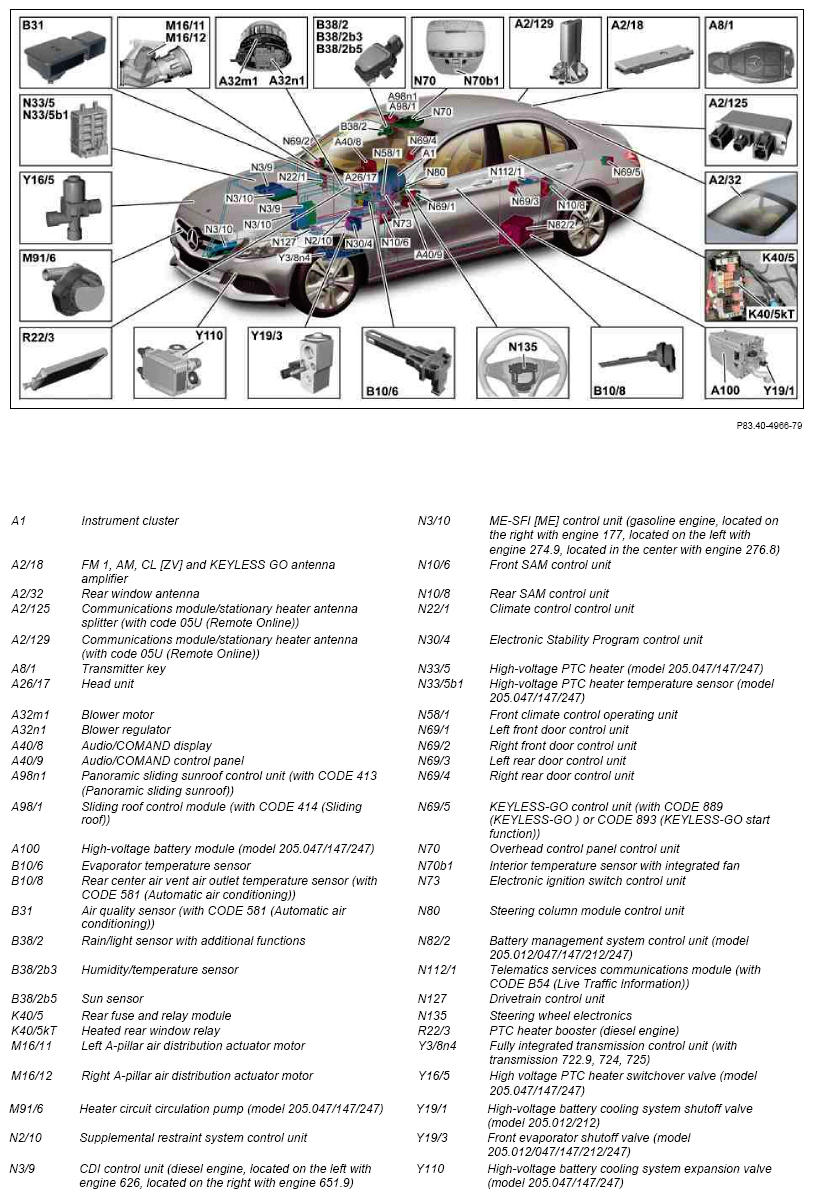

Shown: Model 205.0

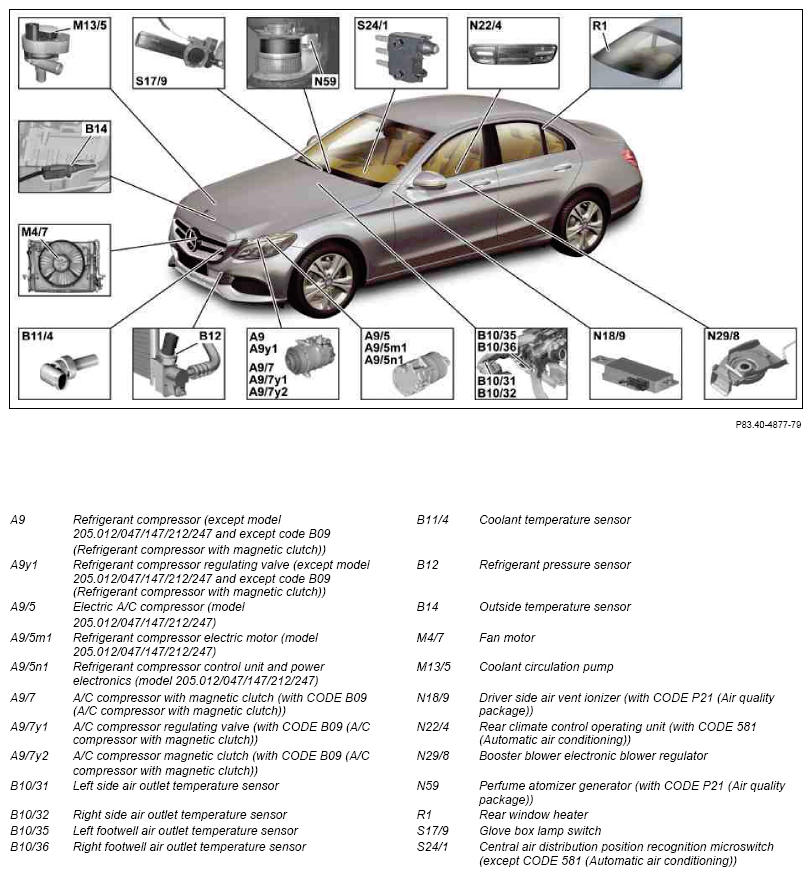

Shown: Model 205.0

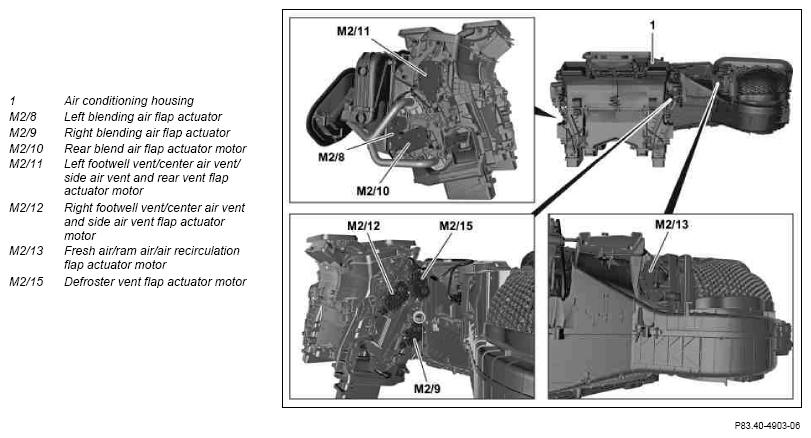

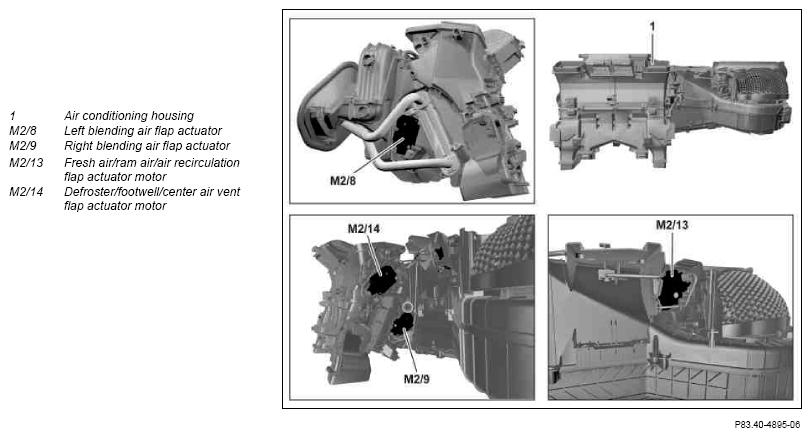

Shown on model 205 with CODE 581 (Automatic air conditioning) and CODE 228 (Stationary heater)
Model 205, 253
with code 228 (Auxiliary heater)
The stationary heater button is not described in the climate control function description.

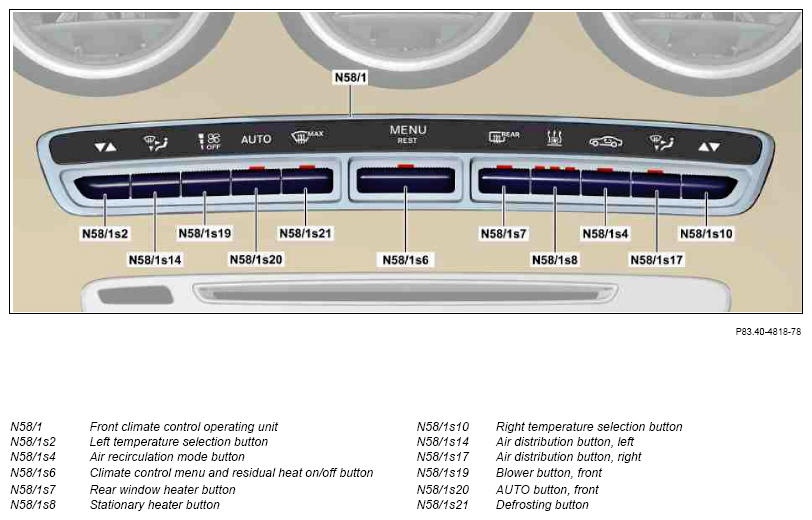

The following buttons are not shown on this operating unit:
- Climate control menu button (N58/1s12) (with code 579 (Single-zone air conditioning) or code 580 (Air conditioning) and except code 228 (Stationary heater))
- "SYNC" button (N58/1s15) (with code 580 (Air conditioning) or code 965 (Taxi/rental car preinstallation))
- "A/C" button (N58/1s16) (with code 579 (Single-zone air conditioning) or code 580 (Air conditioning) or code 581 (Automatic air conditioning) and except code 228 (Stationary heater) or model 205.012/047/147/212/247)
- "A/C" and residual heat ON/OFF button (N58/1s18) (with code 965 (Taxi/rental car preinstallation))
- Air distribution button (N58/1s22) (with code 579 (Single-zone air conditioning) or code 580 (Air conditioning))
- Pre-entry climate control button (N58/1s23) (model 205.047/147/247)
- Temperature selection button (N58/1s24) (with code 579 (Single-zone air conditioning))
Climate control with 1-zone temperature control (with code 579 (Single-zone air conditioning)) and 2-zone temperature control (with code 580 (Air conditioning))
Climate control with 3-zone temperature control (with CODE 581 (Automatic air conditioning))
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Component description for electric refrigerant compressor | Model 205.012/047/147/212/247 A9/5 |
GF83.55-P-2110RFH | |
| Head unit, component description | Model 205 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RF | |
| Model 205 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFA | ||
| Model 205 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RF | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501RF | |
| Component description for panoramic sliding roof control module | Model 205, 253 with code 413 (Automatic panoramic sliding sunroof) A98n1 |
GF77.20-P-4106RF | |
| Component description for sliding roof control module | Model 205 with code 414 (Sliding sunroof) A98/1 |
GF77.20-P-4108RF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005RF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for CDI control unit | Model 205 (except 205.012/212) with engine 651.9 with code 494 (US version) Model 253 with engine 651.9 N3/9 |
GF07.16-P-6000OLD | |
| Model 205 (except 205.012/212) with engine 651 except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Model 205.012/212 with engine 651.9 N3/9 |
GF07.16-P-6000OLC | ||
| Model 205 with engine 626 N3/9 |
GF07.16-P-6000ORB | ||
| Component description for ME-SFI (ME) control unit | Model 205 with engine 177.9 | GF07.61-P-6000MNA | |
| Model 205 (except 205.047/147/247), 253 (except 253.354/954) with engine 274.9 N3/10 |
GF07.61-P-6000MRA | ||
| Model 205.047/147/247 with engine 274.9 N3/10 |
GF07.61-P-6000MRH | ||
| Model 205 with engine 276.8 N3/10 |
GF07.61-P-6000MMV | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Climate control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Rear climate control operating unit, component description | Model 205, 253 with code 581 (Automatic air conditioning) N22/4 |
GF83.40-P-3050RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/047/147/212/247) N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/047/147/212/247 N30/4 |
GF42.45-P-5119RFH | ||
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for rear door control unit | Model 205.0/1/2, 253 N69/3, N69/4 |
GF72.29-P-6021RF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RF | |
| Component description for battery management system control unit | Model 205.012/212 with engine 651.921 Model 205.047/147/247 with engine 274.920 N82/2 |
GF54.10-P-3012RFH | |
| Drivetrain control unit, component description | Model 205 with engine 177.9 N127 |
GF54.21-P-2141MNA | |
| Model 205 (except 205.047/147/247), 253 (except 253.354/954) with engine 274.9 N127 |
GF54.21-P-2141MRA | ||
| Model 205.047/247 with engine 274.9 N127 |
GF54.21-P-2141MRH | ||
| Model 205 with engine 276.8 N127 |
GF54.21-P-2141RF | ||
| Model 205 with engine 626 N127 |
GF54.21-P-2141ORB | ||
| Model 205.012/212 with engine 651.9 N127 |
GF54.21-P-2141OLC | ||
| Model 205 (except 205.012/212), 253 with engine 651.9 N127 |
GF54.21-P-2141OLD | ||
| Component description for fully integrated transmission control unit | Model 205 with transmission 724.2 Y3/8n4 |
GF27.60-P-5165RFH | |
| Model 205 with transmission 722.9 (except 722.930) Y3/8n4 |
GF27.60-P-5165AHE | ||
| Model 205 with transmission 722.930 Y3/8n4 |
GF27.60-P-5165AIA | ||
| Model 253 with transmission 725.0 Y3/8n4 |
GF27.60-P-5165ANI | ||
| Table of contents for climate control function description | GF83.40-P-0994RF |
