Front climate control operating unit, component description - GF83.40-P-2260RF
Model 205, 253

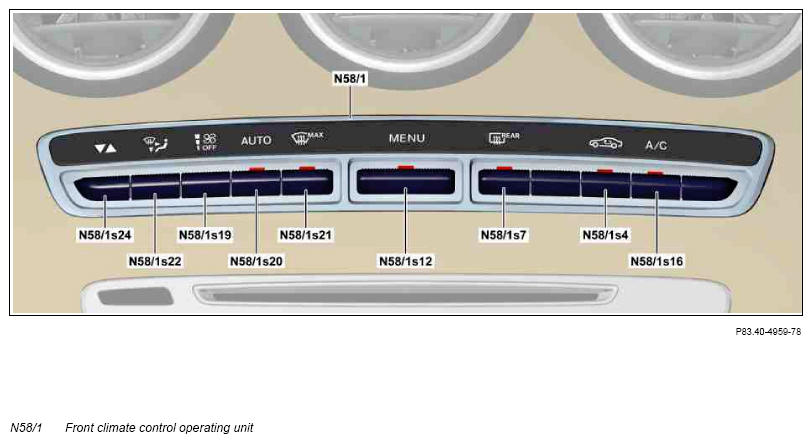

Model 205 (except 205.012/047/147/212/247) with code 579 (Single-zone air conditioning)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Climate control menu button (N58/1s12) | Climate control menu On/Off | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| "A/C" button (N58/1s16) | Refrigerant compressor ON/OFF | Integrated LED |
| Front blower button (N58/1s19) | Set front blower output | Audio/COMAND display (A40/8) |
| Front AUTO button (N58/1s20) | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Defrosting button (N58/1s21) | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Air distribution button (N58/1s22) | Change air distribution | Audio/COMAND display (A40/8) |
| Temperature selection button (N58/1s24) | Specified temperature setting, front | Audio/COMAND display (A40/8) |

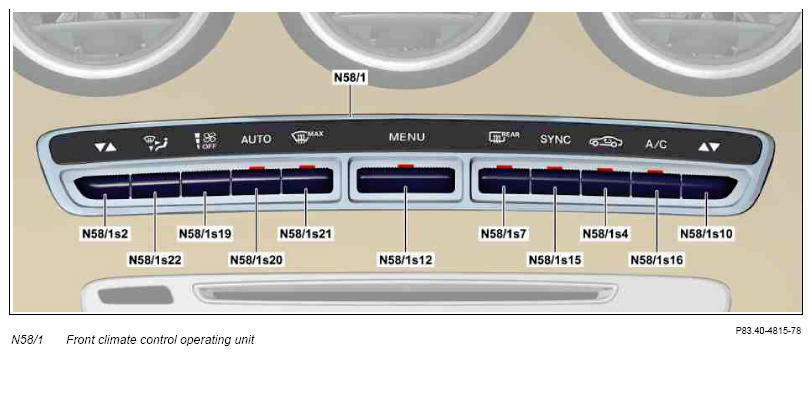

Model 205 (except 205.047/147/247), 253 with code 580 (Air conditioning), shown on model 205 except code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button (N58/1s2) | Setting of specified temperature, left front | Audio/COMAND display (A40/8) |
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Right temperature selection button (N58/1s10) | Setting of specified temperature, right front | Audio/COMAND display (A40/8) |
| Climate control menu button (N58/1s12) | Climate control menu On/Off | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| "SYNC" button (N58/1s15) | Accept settings of driver side for passenger side | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| "A/C" button (N58/1s16) | Refrigerant compressor ON/OFF | Integrated LED |
| Front blower button (N58/1s19) | Set front blower output | Audio/COMAND display (A40/8) |
| Front AUTO button (N58/1s20) | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Defrosting button (N58/1s21) | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Air distribution button (N58/1s22) | Change air distribution | Audio/COMAND display (A40/8) |
Model 205 (except 205.047/147/247), 253 with code 580 (Air conditioning), shown on model 205 with code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button (N58/1s2) | Setting of specified temperature, left front | Audio/COMAND display (A40/8) |
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Climate control menu and residual heat ON/OFF button (N58/1s6) | Climate control menu and residual heat utilization On/Off | Integrated LED (only for residual heat with circuit 15 Off), otherwise indicator in Audio/COMAND display (A40/8) |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Stationary heater button (N58/1s8) | Stationary heater On/Off | Integrated LED |
| Right temperature selection button (N58/1s10) | Setting of specified temperature, right front | Audio/COMAND display (A40/8) |
| "A/C" button (N58/1s16) | Refrigerant compressor ON/OFF | Integrated LED |
| Front blower button (N58/1s19) | Set front blower output | Audio/COMAND display (A40/8) |
| Front AUTO button (N58/1s20) | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Defrosting button (N58/1s21) | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Air distribution button (N58/1s22) | Change air distribution | Audio/COMAND display (A40/8) |

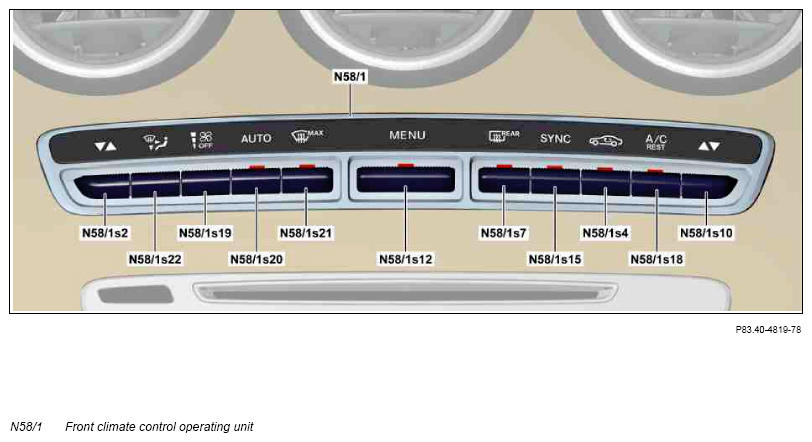

Model 205 (except 205.047/147/247) with code 580 (Air conditioning), shown on model 205 with code 965 (Taxi/rental car preinstallation)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button (N58/1s2) | Setting of specified temperature, left front | Audio/COMAND display (A40/8) |
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Right temperature selection button (N58/1s10) | Setting of specified temperature, right front | Audio/COMAND display (A40/8) |
| Climate control menu button (N58/1s12) | Climate control menu On/Off | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| "SYNC" button (N58/1s15) | Accept settings of driver side for passenger side | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| "A/C" and residual heat On/Off button (N58/1s18) | Residual heat utilization or refrigerant compressor ON/OFF | Integrated LED |
| Front blower button (N58/1s19) | Set front blower output | Audio/COMAND display (A40/8) |
| Front AUTO button (N58/1s20) | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Defrosting button (N58/1s21) | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Air distribution button (N58/1s22) | Change air distribution | Audio/COMAND display (A40/8) |

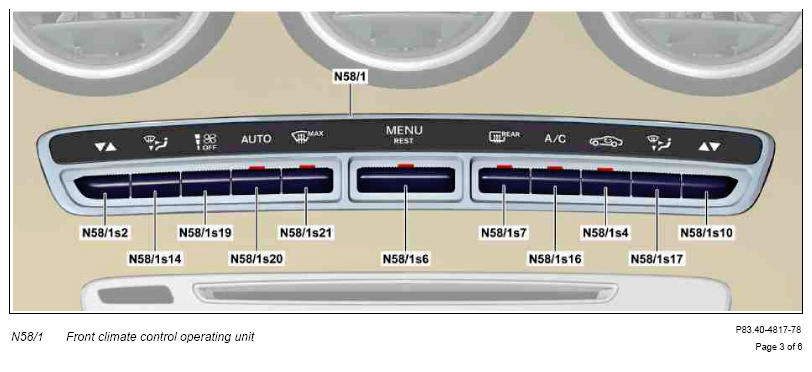

Model 205 (except 205.047/147/247), 253 with code 581 (Automatic air conditioning), shown on model 205 except code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button (N58/1s2) | Setting of specified temperature, left front | Audio/COMAND display (A40/8) |
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Climate control menu and residual heat ON/OFF button (N58/1s6) | Climate control menu and residual heat utilization On/Off | Integrated LED (only for residual heat with circuit 15 Off), otherwise indicator in Audio/COMAND display (A40/8) |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Right temperature selection button (N58/1s10) | Setting of specified temperature, right front | Audio/COMAND display (A40/8) |
| Left air distribution button (N58/1s14) | Change left air distribution | Audio/COMAND display (A40/8) |
| "A/C" button (N58/1s16) | Refrigerant compressor ON/OFF | Integrated LED |
| Right air distribution button (N58/1s17) | Change right air distribution | Audio/COMAND display (A40/8) |
| Front blower button (N58/1s19) | Set front blower output | Audio/COMAND display (A40/8) |
| Front AUTO button (N58/1s20) | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Defrosting button (N58/1s21) | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |

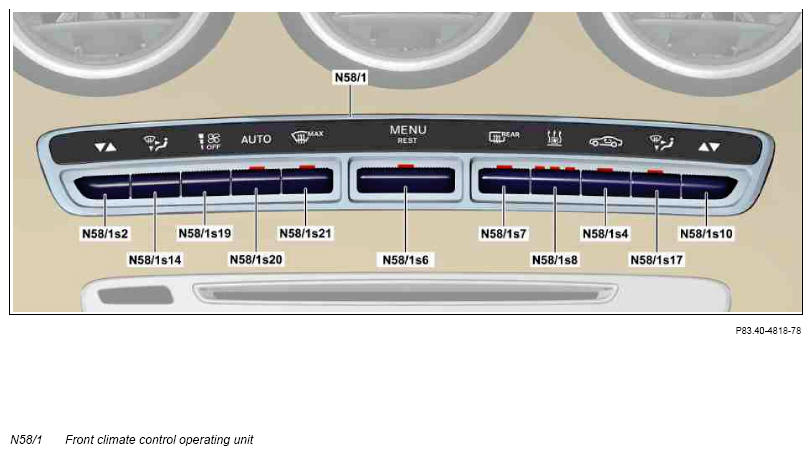

Model 205 (except 205.047/147/247), 253 with code 581 (Automatic air conditioning), shown on model 205 with code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button (N58/1s2) | Setting of specified temperature, left front | Audio/COMAND display (A40/8) |
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Climate control menu and residual heat ON/OFF button (N58/1s6) | Climate control menu and residual heat utilization On/Off | Integrated LED (only for residual heat with circuit 15 Off), otherwise indicator in Audio/COMAND display (A40/8) |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Stationary heater button (N58/1s8) | Stationary heater On/Off | Integrated LED |
| Right temperature selection button (N58/1s10) | Setting of specified temperature, right front | Audio/COMAND display (A40/8) |
| Left air distribution button (N58/1s14) | Change left air distribution | Audio/COMAND display (A40/8) |
| Right air distribution button (N58/1s17) | Change right air distribution | Audio/COMAND display (A40/8) |
| Front blower button (N58/1s19) | Set front blower output | Audio/COMAND display (A40/8) |
| Front AUTO button (N58/1s20) | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Defrosting button (N58/1s21) | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
Model 205.047/147/247
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button (N58/1s2) | Setting of specified temperature, left front | Audio/COMAND display (A40/8) |
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Climate control menu and residual heat ON/OFF button (N58/1s6) | Climate control menu and residual heat utilization On/Off | Integrated LED (only for residual heat with circuit 15 Off), otherwise indicator in Audio/COMAND display (A40/8) |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Right temperature selection button (N58/1s10) | Setting of specified temperature, right front | Audio/COMAND display (A40/8) |
| Left air distribution button (N58/1s14) | Change left air distribution | Audio/COMAND display (A40/8) |
| "A/C" button (N58/1s16) | Refrigerant compressor ON/OFF | Integrated LED |
| Front blower button (N58/1s19) | Set front blower output | Audio/COMAND display (A40/8) |
| Front AUTO button (N58/1s20) | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Defrosting button (N58/1s21) | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Pre-entry climate control button (N58/1s23) | Pre-entry climate control ON/OFF | Integrated LED |
The air conditioning system or the respective refrigerant compressor can be switched off using the "A/C" button or "A/C" and residual heat ON/OFF button. If these buttons are not installed in an operating panel, the air conditioning or the respective refrigerant compressor can only be switched off via the menu in the head unit (A26/17).
The "SYNC" function is available independently from the operating unit via the Audio/COMAND control panel (A40/9) (even if the installed operating unit does not have a "SYNC button").
Location
The front climate control operating unit is located in the center console.
Task
The front climate control operating unit has the following tasks:
- Reception of signals and requests
- Transmission of signals and requests
Reception of signals and requests
The front climate control operating unit receives requests for function feedback via the climate control LIN (LIN B8-3) for following functions:
- Climate control
- Recirculated air mode
- Windshield defrost function
- Rear window heater (R1)
- Stationary heater (with CODE 228 (Stationary heater))
- Pre-entry climate control (model 205.047/147/247)
- Residual heat utilization (with code 228 (Stationary heater) or code 581 (Automatic air conditioning) or code 965 (Taxi/rental car preinstallation) or model 205.047/147/247)
Transmission of signals and requests
The front climate control operating unit sends function requests over the climate control LIN that can be selected using the following controls:
- Left temperature selection button (with CODE 580 (A/C) or CODE 581 (Automatic air conditioning))
- Air recirculation mode button
- Climate control and residual heat ON/OFF menu button (with code 228 (Stationary heater) or code 581 (Automatic air conditioning) or model 205.047/147/247)
- Rear window heater button
- Stationary heater button (with CODE 228 (Stationary heater))
- Right temperature selection button (with CODE 580 (A/C) or CODE 581 (Automatic air conditioning))
- Climate control menu button (with code 579 (Single-zone air conditioning) or code 580 (Air conditioning) and except code 228 (Stationary heater))
- Left air distribution button (with CODE 581 (Automatic air conditioning))
- "SYNC" button (with code 580 (Air conditioning) or code 965 (Taxi/rental car preinstallation))
- "A/C" button (with code 579 (Single-zone air conditioning) or code 580 (Air conditioning) or code 581 (Automatic air conditioning) and except code 228 (Stationary heater) or model 205.012/047/147/212/247)
- Right air distribution button (with CODE 581 (Automatic air conditioning))
- "A/C" and residual heat ON/OFF button (with code 965 (Taxi/rental car preinstallation))
- Blower button, front
- AUTO button, front
- Defrosting button
- Air distribution button (with code 579 (Single-zone air conditioning) or code 580 (Air conditioning))
- Pre-entry climate control button (model 205.047/147/247)
- Temperature selection button (with code 579 (Single-zone air conditioning))
| Wiring diagram for automatic air conditioning (AAC) control unit | PE83.40-P-2101-97FBA |
