Component description for panoramic sliding roof control module - GF77.20-P-4106RF
MODEL 205, 253 with CODE 413 (Automatic panoramic sliding sunroof)
Shown: Model 205.0

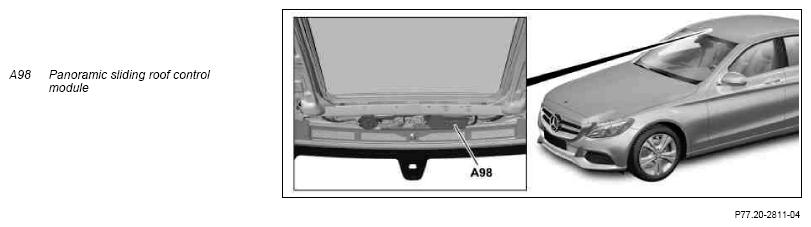

Location
The panoramic sliding sunroof control module is located at the front on the frame of the panoramic sliding sunroof.
Task
The panoramic sliding door control unit (A98n1) in the panoramic sliding sunroof control module has the following tasks:
- Reading in of sensors and signals
- Evaluation of input factors
- Actuation of components
Reading in of sensors and signals
The input factors are read in via the following connections:
- Direct line
- Interior CAN (CAN B)
Direct line
The signals from the following sensors are read via direct lines:
- Hall sensor 1, panoramic sliding sunroof roller sun blind (M12/5b1)
- Hall sensor 2, panoramic sliding sunroof roller sun blind (M12/5b2)
Interior CAN
The following data are read in over the interior CAN:
- Status of roof system switch (N70s1)
- Data for rain/light sensor with additional functions (B38/2)
- Status of left front door rotary tumbler switch (A85s1)
- Right front door rotary tumbler switch status (A85/1s1)
- Outside temperature
- Vehicle speed
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Actuation of components
The panoramic sliding door control unit controls the panoramic sliding door roller sun blind motor (M12/5m1) via a direct line.
Body
The panoramic sliding sunroof control module contains the following components:
- Hall sensor 1, panoramic sliding sunroof (A98b1)
- Hall sensor 2, panoramic sliding sunroof (A98b2)
- Panoramic sliding roof motor (A98m1)
- Panoramic sliding roof control unit
| Electric wiring diagram for panoramic sliding sunroof | PE77.20-P-2200-97FBA |
