Remove/install side paneling in trunk - AR68.30-P-4800LW

Model 205.0/1

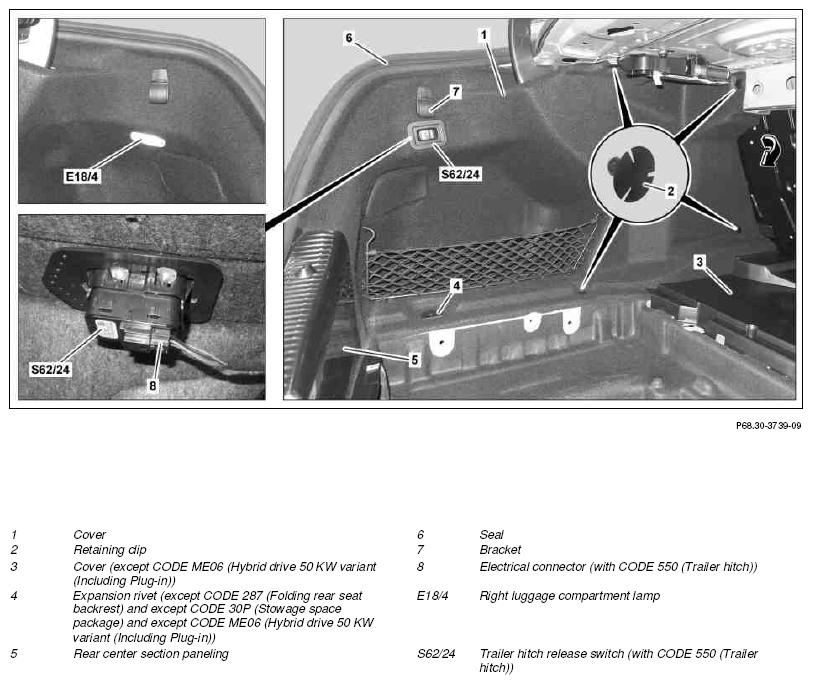

Fig 1: Identifying Trunk Side Paneling Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.0 with CODE 550 (Trailer hitch) and except CODE 287 (Folding rear seat backrest) and except CODE 30P (Stowage space package) and except CODE ME06 (Hybrid drive 50 KW variant (Including Plug-in))

	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Note on high-voltage on-board electrical system		AH54.00-P-0010-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Remove rear center section paneling (5)		AR68.30-P-4785LW
2.1	Remove cover (3)	Model 205.0/1 except code ME06 (Hybrid drive 50-KW variant (incl. plug-in))
			AR68.30-P-4600LW
2.2	Remove front section of load compartment floor	Model 205.0/1 with code ME06 (Hybrid drive 50-KW variant (incl. plug-in))
			AR68.20-P-4811LW
3	Remove retaining clips (2)	Clip remover	Figure
4.1	Remove expansion rivet (4)	Model 205.0/1 except code 287 (Folding rear seat backrests) except code 30P (Stowage Space package) except code ME06 (Hybrid drive 50-KW variant (incl. plug-in))
4.2	Remove tie-down eyes	Model 205.0/1 with code 287 (Folding rear seat backrests) Model 205.0/1 with code 30P (Stowage Space package) Model 205.0/1 with code ME06 (Hybrid drive 50-KW variant (incl. plug-in))
		Screw/bolt for tie-down eye	*BA68.50-P-1001-03I
5	remove bracket (7)
6	Detach paneling (1) until electrical connector (8) is accessible	Model 205.0/1 with code 550 (Trailer coupling) When removing left paneling (1). Ensure that seal (6) is seated properly.
7	Disconnect electrical connector (8) from trailer hitch release switch (S62/24)	Model 205.0/1 with code 550 (Trailer coupling) When removing left paneling (1).
8	Detach paneling (1) until electrical connector on right trunk lamp (E18/4) is accessible	When removing right paneling (1). Ensure that seal (6) is seated properly.
9	Disconnect electrical connector from right trunk lamp (E18/4)	When removing right paneling (1).
10	Remove left and right paneling (1) from front toward rear in direction of arrow
11	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
