Remove/install load compartment floor front section - AR68.20-P-4811LW

Model 205.0/1 with code ME06 (Hybrid drive 50-KW variant (incl. plug-in))

Model 205.2

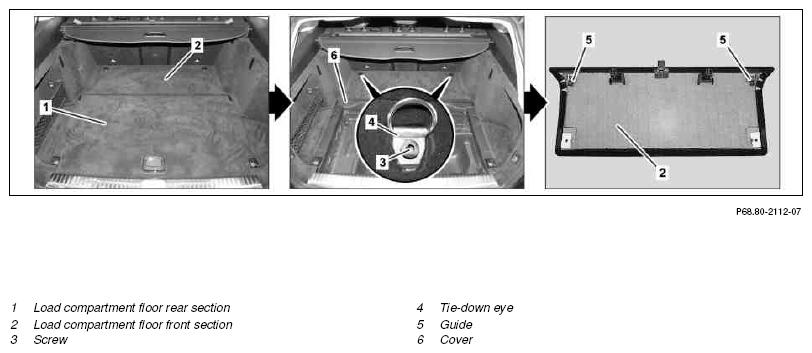

Fig 1: Identifying Front Section Remove/Install Components - Shown On Model 205.2

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.2 except CODE ME06 (Hybrid drive 50 KW variant (Including Plug-in))

	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Note on high-voltage on-board electrical system		AH54.00-P-0010-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Open trunk lid or liftgate
2.1	Remove load compartment floor rear section (1)	Model 205.0/1 with code ME06 (Hybrid drive 50-KW variant (incl. plug-in)) Model 205.2 except code ME06 (Hybrid drive 50-KW variant (incl. plug-in))
2.2	Fold over load compartment floor rear section (1)	Model 205.2 with code ME06 (Hybrid drive 50-KW variant (incl. plug-in))
3	Unclip covers from tie-down eyes (4)
4	Unscrew bolts (3) and remove tie-down eye (4)	Screw/bolt for tie-down eye	*BA68.50-P-1001-03I
5	Lift load compartment front section (2) at front and remove toward rear	Ensure that the guides (5) and cover (6) are seated correctly.
6	Install in the reverse order
