Remove/install front bumper - AR88.20-P-2000LW

Model 205

Model 253

MODIFICATION NOTES

20.2.15 "Remove outside temperature sensor" added. Operation step 5

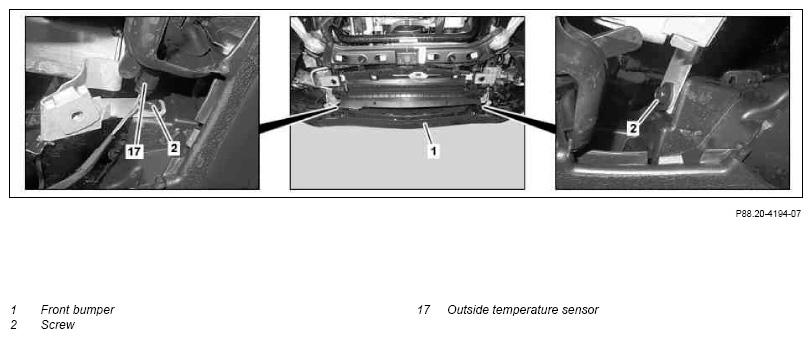

Model 205, shown with code P76 (Standard equipment, Exterior)

Fig 1: Identifying Front Bumper Remove/Install Components - Shown With Code P76
G10134984Courtesy of MERCEDES-BENZ USA

Shown on model 205 with code P76 (Standard equipment, Exterior)

Fig 2: Identifying Front Bumper Remove/Install Components - Shown On Model 205
G10134985Courtesy of MERCEDES-BENZ USA

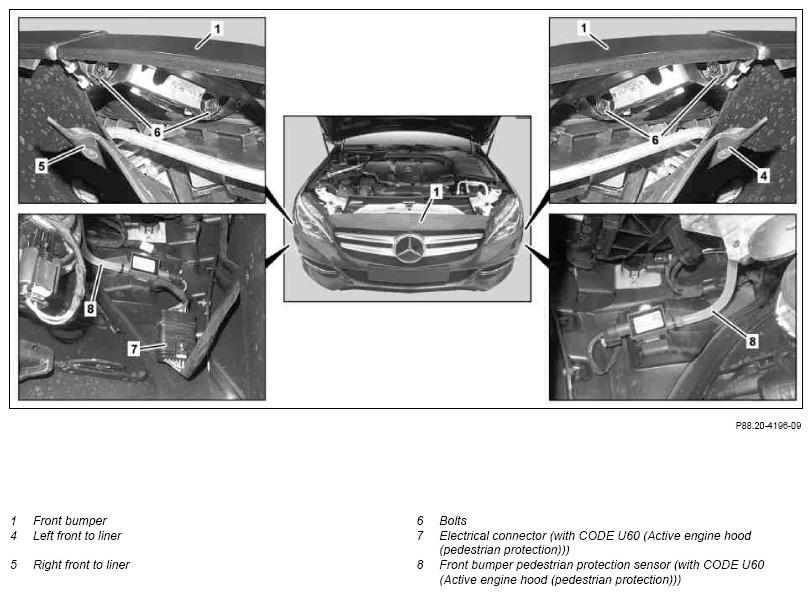

Shown on model 205 with code P76 (Standard equipment, Exterior)

Fig 3: Identifying Front Bumper Remove/Install Components - Shown On Model 205
G10134986Courtesy of MERCEDES-BENZ USA

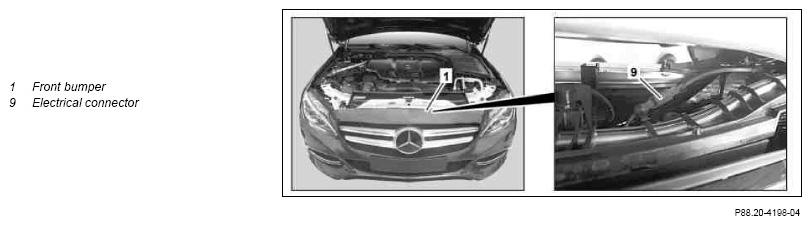

Model 205, 253 with code 501 (360°camera), shown on model 205

Fig 4: Identifying Front Bumper Remove/Install Components - Shown On Model 205
G10134987Courtesy of MERCEDES-BENZ USA

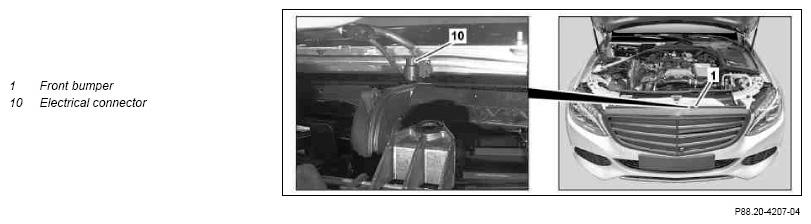

Model 205, 253 with code 5U3 (AIRPANEL), shown on model 205

Fig 5: Identifying Front Bumper Remove/Install Components - Shown On Model 205
G10134988Courtesy of MERCEDES-BENZ USA

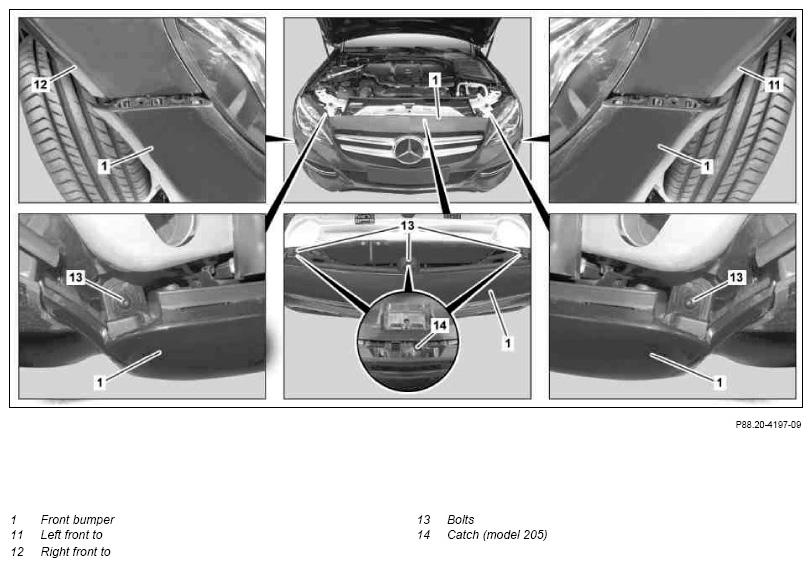

Shown on model 205 with code P76 (Standard equipment, Exterior)

Fig 6: Identifying Front Bumper Remove/Install Components - Shown On Model 205
G10134989Courtesy of MERCEDES-BENZ USA

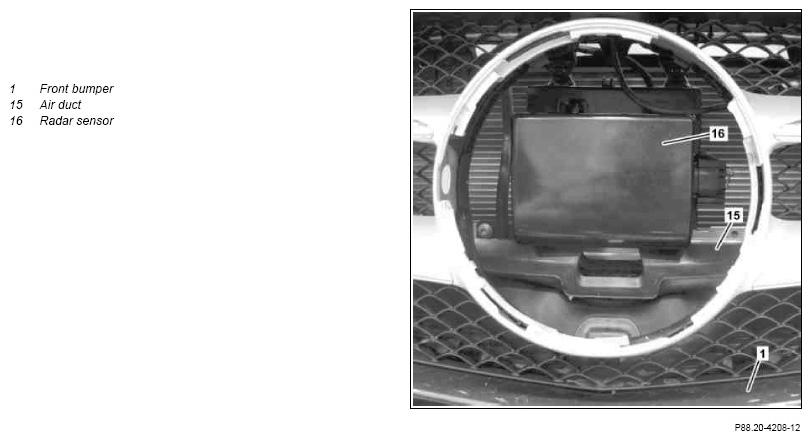

Model 205, 253 with code 233 (DISTRONIC PLUS) or code 239 (DISTRONIC PLUS)

Fig 7: Identifying Front Bumper Remove/Install Components
G10134990NOTESREMOVINGINSTALLINGSPECIAL TOOLINSPECTNOTESNOTESIMPORTANTINSTALLATION IMPORTANTINSTALLATION NOTESINSTALLATION IMPORTANTINSTALLATION IMPORTANTINSPECTNOTESREFER TO SELF-DIAGNOSTIC SYSTEMSCourtesy of MERCEDES-BENZ USA
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Open engine hood
2 Disconnect battery ground line Model 205
with code U60 (Active Bonnet (Pedestrian protection))
Model 253
with code U60 (Active Bonnet (Pedestrian protection))

AR54.10-P-0003LW
3.1 Remove front engine compartment paneling and center engine compartment paneling Model 205
AR61.20-P-1105LW
3.2 Detach front engine compartment paneling in area of front bumper (1) Model 253
AR61.20-P-1105LW
4 Remove screws (2) Model 205
5 Remove outside temperature sensor (17) Model 205
6 Remove expansion rivet (3) from left front to liner (4) and right front to liner (5)
7 Press front to liner (4) and right front to liner (5) to side and unscrew bolts (6) SPECIAL TOOL Mounting wedge Fig 8
INSPECT Check
8 Check freely visible points on front bumper pedestrian protection sensor (8) for damage such as cracks, holes or kinked points, etc. when installed Model 205
with code U60 (Active Bonnet (Pedestrian protection))
Model 253
with code U60 (Active Bonnet (Pedestrian protection))

NOTES Notes on pedestrian protection sensor AH91.60-P-0001-01A
If damages are visible:

Check front bumper pedestrian protection sensor (8).
AR91.60-P-0950LW
9 Detach protective strips in area of front bumper (1) on right and left NOTES Carefully detach protective strips.
Otherwise they may be damaged.

10 Disengage front bumper (1) from left front to (11) and right front to (12)
11 Disconnect electrical connector (7) Model 205
with code U60 (Active Bonnet (Pedestrian protection))
Model 253
with code U60 (Active Bonnet (Pedestrian protection))

12 Disconnect electrical connector (9) Model 205
with code 501 (360° camera)
Model 253
with code 501 (360° camera)

13 Disconnect electrical connector (10) Model 205
with code 5U3 (AIRPANEL)
Model 253
with code 5U3 (AIRPANEL)

14 Unscrew bolt on left headlamp and right headlamp Model 253
Bumper to headlamp, bottom *BE60.00-P-1004-01FA
Bumper to headlamp, side *BE60.00-P-1005-01FA
15 Remove bolts (13) IMPORTANT Model 253
Three retaining clips are installed instead of the three bolts (13) in the center.

16 Release front bumper (1) from arrests (14) and remove Model 205
INSTALLATION IMPORTANT Observe following adjustment dimensions for front bumper (1):

Model 205.0/1
Model 205.2Engine hood to radiator trim/soft nose
*BE60.00-P-1003-01BB
Model 205.0/1
Model 205.2Protrusion of radiator trim/soft nose, engine hood
*BE60.00-P-1004-01BB
17 Remove front bumper (1) INSTALLATION NOTES
Model 205
with code 233 (DISTRONIC PLUS)
Model 205
with code 239 (DISTRONIC PLUS)
Model 253
with code 233 (DISTRONIC PLUS)
Model 253
with code 239 (DISTRONIC PLUS)
Ensure that the air deflector (15) is located below the radar sensor (16).
Otherwise the driver assistance system can fail.
INSTALLATION IMPORTANT Tighten bolts (6) before adjusting gap dimensions.
INSTALLATION IMPORTANT Check gap dimensions on front bumper (1).

Model 205.0/1
Model 205.2 Engine hood to bumper
*BE60.00-P-1005-01BB
Model 253 Engine hood to bumper
If there are problems: ↓
Adjust front bumper (1).
*BE60.00-P-1003-01FA
Model 205 AR88.20-P-2001LW
INSPECT Check
18 Check impact absorber
NOTES General information on the impact absorber AH88.20-P-1000-01A
If damage is present:

Replace impact absorber.
19 Install in the reverse order
20 Calibrate 360° camera with diagnostic system Model 205
with code 501 (360° camera)
Model 253
with code 501 (360° camera)

REFER TO SELF-DIAGNOSTIC SYSTEMS Model 205
with code 501 (360° camera)
AD00.00-P-2000-04B
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1003-01BB Engine hood to radiator trim/soft nose Dimension "C" mm 3, 5 (±1) 3, 5 (±1)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253
BE60.00-P-1003-01FA Engine hood to bumper Dimension "D" mm 4, 5 (+1/-1, 5)
For picture, see AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1004-01BB Protrusion of radiator trim/soft nose, engine hood Dimension "C" mm 1 (±1) 1 (±1)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253
BE60.00-P-1004-01FA Bumper to headlamp, bottom Dimension "E1" mm 2, 0 (±1)
For picture, see AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1005-01BB Engine hood to bumper Dimension "D" mm 4 (±1) 4 (±1)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253
BE60.00-P-1005-01FA Bumper to headlamp, side Dimension "E2" mm 2, 5 (±1, 5)
For picture, see AR60.00-P-0700-01LW
Fig 8: Identifying Mounting Wedge (110 589 03 59 00)
G07079389Courtesy of MERCEDES-BENZ USA
