Actuate emergency release of fuel filler flap - AR88.60-P-1002LW
Model 205
Model 253

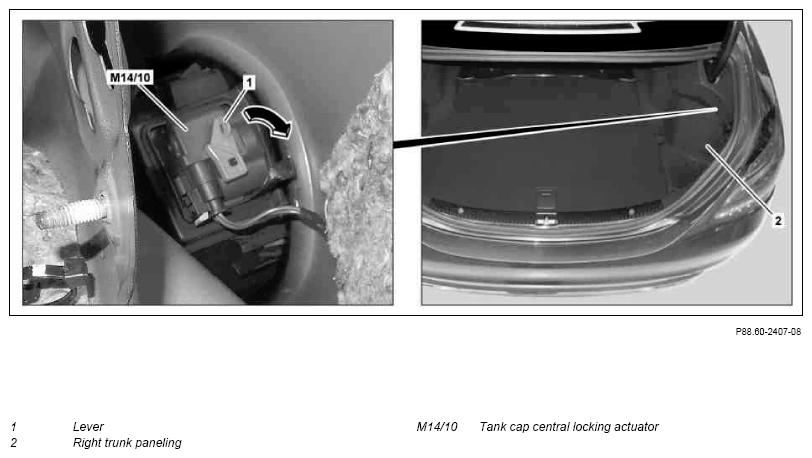

Shown on model 205.0
| Remove/install | |||
| 1.1 | Remove right trunk paneling (2) | Model 205.0/1 | |
| AR68.30-P-4800LW | |||
| 1.2 | Remove right load compartment trim | Model 205.2 | |
| AR68.30-P-1180LWS | |||
| 1.3 | Loosen fender liner in right rear fender until lever (1) is accessible | Model 253 | |
| AR88.10-P-1400LW | |||
| 2 | Turn lever (1) on tank cap central locking actuator (M14/10) in direction of arrow | ||
| 3 | Install in the reverse order |
