Remove/install fender liner in rear fender - AR88.10-P-1400LW

Model 205

Model 253

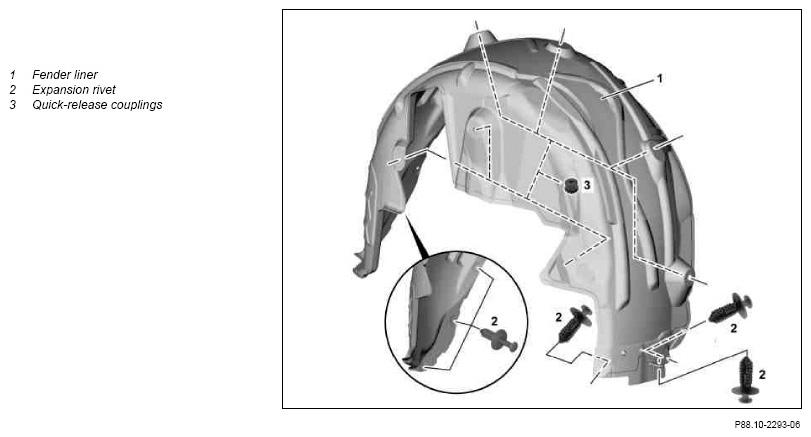

Shown on fender liner (1), model 205

Fig 1: Identifying Rear Fender Liner Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Raise vehicle		AR00.60-P-1002LWG
2	Remove expansion rivet (2)
3.1	Unscrew quick-release coupling (3)	Model 205 Push quick-release coupling (3) against stop.
3.2	Unscrew the nuts	Model 253 Nuts are installed instead of quick-release couplings (3).
4	Pull outer edge of fender liner (1) toward inside out of wheel arch lip and remove fender liner (1)
5	Install in the reverse order
