Remove/install the suspension strut - AR32.25-P-1017LFB

MODEL 217

except CODE 487 (Active Body Control (ABC))

MODEL 222

except CODE 487 (Active Body Control (ABC))

Shown on MODEL 222 on right side of vehicle

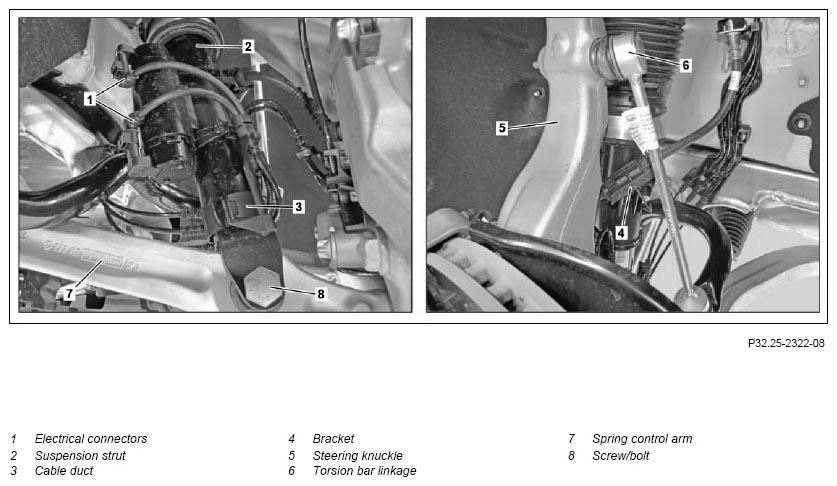

Fig 1: Suspension Strut Remove/Install Components - Shown On Model 222 On Right Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 222

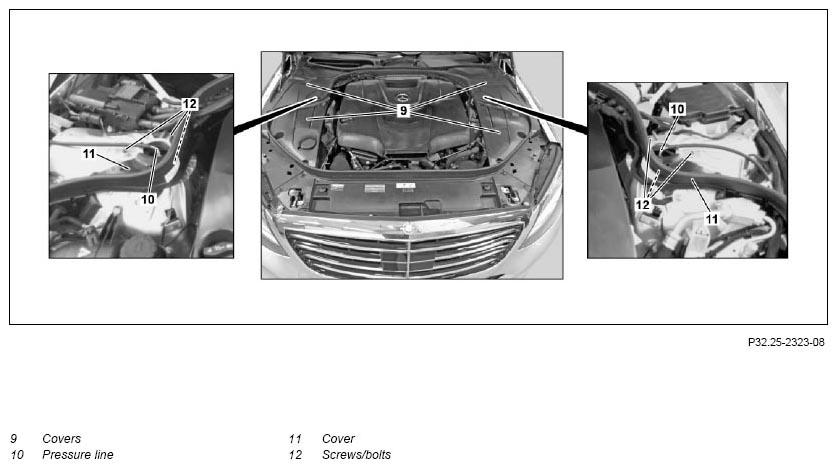

Fig 2: Suspension Strut Remove/Install Components - Shown On Model 222

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off during lifting	Only lift vehicle at the lift support points specified by the vehicle manufacturer.	AS00.00-Z-0032-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on AIRmatic		AH32.22-P-1000-02LF
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Vent pressure in AIRmatic system using diagnostic system
			AD00.00-P-2000-04B
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
2	Open and lock engine hood
3	Detach corresponding front complete wheel
			AP40.10-P-4050HA
4	Detach electrical connection (1) from suspension strut (2)
5	Open cable duct (3) on suspension strut (2) and place to one side
6	Open holder (4) and unhook brake hose
7	Secure steering knuckle (5) against folding down
8	Detach transverse control arm from steering knuckle (5)		AR33.20-P-0500LF
9	Detach torsion bar linkage (6) from steering knuckle (5)	Model 217 except code 487 (Active Body Control (ABC)) Model 222 except code 487 (Active Body Control (ABC)) except code Z07 (Top protection) Model 222 with code Z07 (Top protection) except code 487 (Active Body Control (ABC)) Nut, torsion bar linkage to steering knuckle	*BA32.20-P-1002-02O
10	Detach suspension strut (2) from spring control arm (7)	Insertion direction of screw/bolt (8): Screw/bolt (8) must be inserted from the front. Model 217 except code 487 (Active Body Control (ABC)) Model 222 except code 487 (Active Body Control (ABC)) except code Z07 (Top protection) Model 222 with code Z07 (Top protection) except code 487 (Active Body Control (ABC)) Nut, suspension strut at front to spring control arm	*BA32.25-P-1002-04O
11	Remove corresponding covers (9) from suspension strut tower
12	Detach pressure line (10) from corresponding suspension strut (2)	Pressure line to front suspension strut/valve block Pressure line to front suspension strut/valve block	*BA32.22-P-1010-03F
		If pressure line connection is damaged ↓ Repair pressure line connection	AR32.22-P-2001-02SX
		Leak detection spray	*BR00.45-Z-1002-03A
		Socket wrench bit	Figure
		Knife	Figure
13	Detach cover lining (11) and place to one side
14	Unscrew nuts from corresponding suspension strut (2)	Model 217 except code 487 (Active Body Control (ABC)) Model 222 except code 487 (Active Body Control (ABC)) except code Z07 (Top protection) Model 222 with code Z07 (Top protection) except code 487 (Active Body Control (ABC)) Nut, suspension strut at front to body	*BA32.25-P-1001-04O
15	Remove suspension strut (2) downwards
16	Detach bracket (4) from suspension strut (2)	When replacing suspension strut (2). Replace cable tie and fasten in place using pliers .
	Check
17	Check condition of suspension strut (2)	When reinstalling suspension strut (2) If damaged or worn ↓ Replace suspension strut (2) Dispose of the damaged suspension strut (2) correctly.
18	Check condition of suspension strut joint on spring control arm (7)	If damaged or worn ↓ Replace suspension strut joint	AR33.15-P-0115LF
19	Measure length of suspension strut (2)	Compare the measured length of the suspension strut (2) with the leaflet for the new suspension strut (2). If dimension differs ↓ Do not install suspension strut (2); replace with a new suspension strut (2)
20	Install in the reverse order
21	Check AIRmatic system for leaktightness		AR32.22-P-8100LF

Fig 3: Identifying Socket Wrench Bit (211 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Pliers (164 589 01 37 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Knife (000 589 12 28 00)

Courtesy of MERCEDES-BENZ USA
